Signal Conditioner
DanMartins·Signal_Conditioner·KiCAD/Signal_Conditioner_R3.kicad_pcb
About the Signal Conditioner PCB

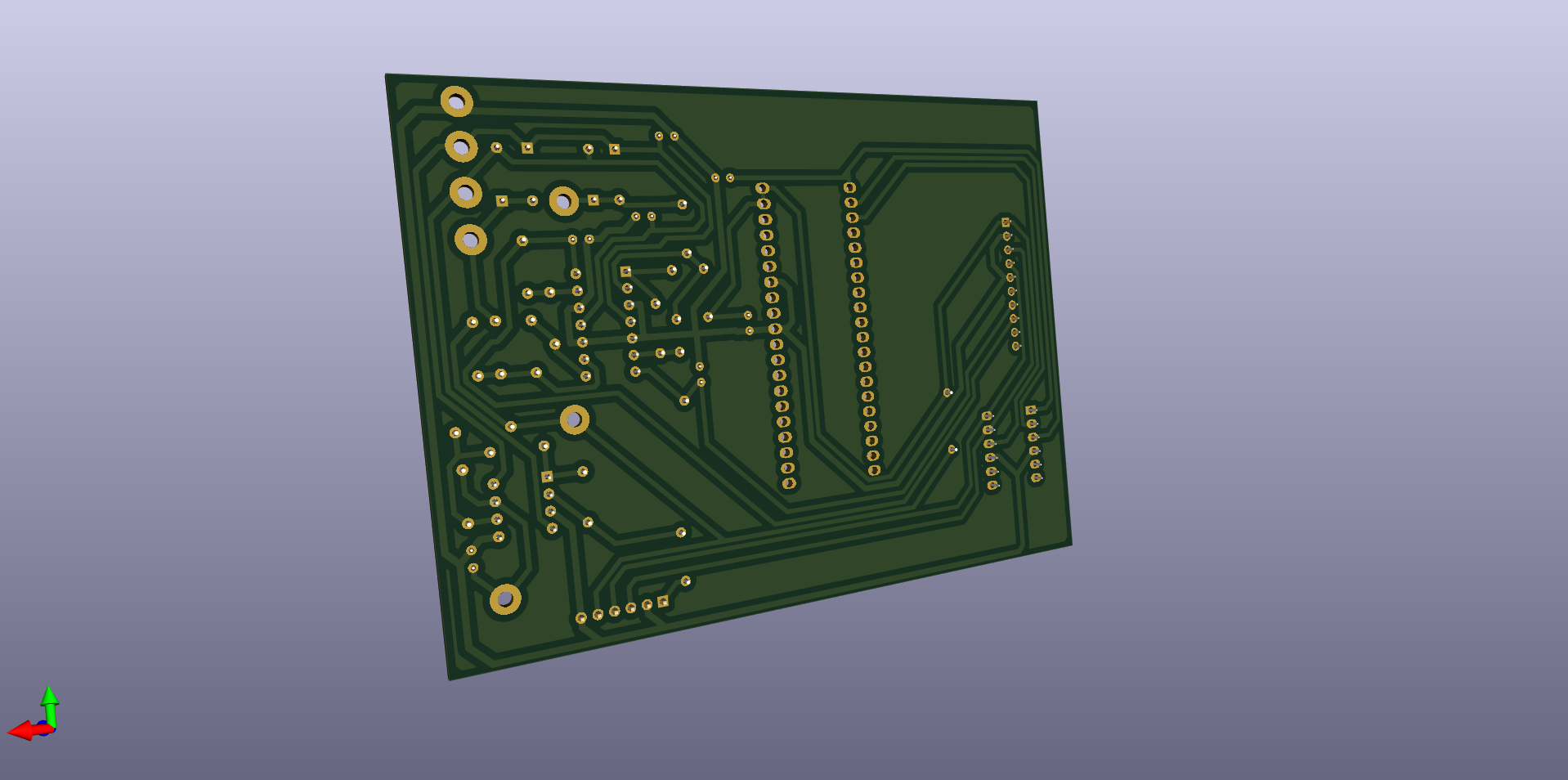

Signal Conditioner is an open source Raspberry Pi PCB design by DanMartins, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 113.3 × 84.4 mm, with 34 components from 13 distinct parts.
Its main chip is the Raspberry_Pi_2_3, from the Raspberry Pi family. Other key parts include the TL084 and NE5532. By type, the board carries 15 resistors, 7 capacitors, 5 connectors, 4 diodes and 2 ICs.
From the project
PCB signal conditioner implemented using KiCAD
Hardware development for IoTControl to interface with analog signals for control systems on PhD program at University of São Paulo. Part of this work is open source and available here on GitHub and there is a channel on [YouTube][youtube] where you can find videos about IoTControl platform.
You may want to reach me on [LinkedIn][linkedin] or ResearchGate, publications are available on [ORCID][orcid] and Lattes.

Main components on the Signal Conditioner
Signal Conditioner bill of materials (BOM)
34 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TL084 | DIP-14_W7.62mm_Socket | U1 |
| 1 | NE5532 | DIP-8_W7.62mm_Socket | U2 |
| 1 | Conn_01x12_Pin | DIP-12_DAN.GPIO_Conn | J8 |
| 1 | Raspberry_Pi_2_3 | DIP-40_DAN_EXT-RaspGPIO | J9 |
| 1 | ADS1115 | PinSocket_1x10_P2.54mm_Vertical | J10 |
| 1 | MCP 4725 | PinHeader_1x06_P2.54mm_Vertical | J13 |
| 1 | Level Shifter | DIP-8_DAN GPIO Connector | J14 |
| 1 | 0R | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | Jumper1 |
| 4 | 1N4749A | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4 |
| 7 | 100n | C_Rect_L4.6mm_W2.0mm_P2.50mm_MKS02_FKP02 | C1, C2, C3, C4, C5, C6, C7 |
| 6 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R8, R11, R12, R14, R15 |
| 5 | 20k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R3, R6, R7, R13 |
| 4 | 2k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4, R5, R9, R10 |
Signal Conditioner design files
The KiCad project lives in the DanMartins/Signal_Conditioner repository on GitHub; these links point at the commit this page was built from.
Signal Conditioner: common questions
What microcontroller does the Signal Conditioner use?
The Signal Conditioner is built around the Raspberry_Pi_2_3, from the Raspberry Pi family.
How big is the Signal Conditioner PCB?
The Signal Conditioner measures 113.3 × 84.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Signal Conditioner?
34 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Signal Conditioner design files?
From the DanMartins/Signal_Conditioner repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Signal Conditioner design in my own project?
Yes, under the terms of its GPL-3.0 license, which DanMartins chose for the repository.
Can I test firmware for the Signal Conditioner without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
