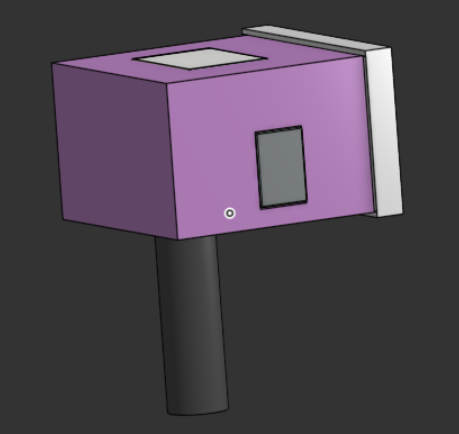

Doppler speed detector

darksunnp·doppler_speed_detector·hardware/kicad/Circuitofdoppergun.kicad_sch

Doppler speed detector
Simulate this board

About the Doppler speed detector PCB

Doppler speed detector is an open source AVR/Arduino PCB design by darksunnp, published on GitHub. It is a board, with 18 components from 12 distinct parts.

Its main chip is the Arduino_UNO_R3, from the AVR/Arduino family. Other key parts include the HB100 and LM358. By type, the board carries 7 resistors, 6 capacitors, 2 ICs and 1 module.

It belongs with the robotics & motion, displays & leds and sensors designs in this gallery.

Main components on the Doppler speed detector

HB100LM358Arduino_UNO_R3

Doppler speed detector bill of materials (BOM)

18 components, 12 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
HB100
U1
1
LM358
U2
1
Arduino_UNO_R3
A1
1
HY1602E
DS1
1
10k
RV1
2
1uF
C1, C3
2
100pF
C2, C4
1
10uF
C5
1
100nF
C6
4
10k
R1, R3, R5, R6
2
470k
R2, R4
1
220ohm
R7

Doppler speed detector design files

The KiCad project lives in the darksunnp/doppler_speed_detector repository on GitHub; these links point at the commit this page was built from.

Doppler speed detector: common questions

What microcontroller does the Doppler speed detector use?

The Doppler speed detector is built around the Arduino_UNO_R3, from the AVR/Arduino family.

How many components are on the Doppler speed detector?

18 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Doppler speed detector design files?

From the darksunnp/doppler_speed_detector repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.

Can I use the Doppler speed detector design in my own project?

The repository has no license, so all rights stay with darksunnp. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Doppler speed detector without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
