About the Icey PCB
Icey is an open source FPGA PCB design by darshg321, published on GitHub under the CERN-OHL-P-2.0 license. It is a 4-layer board measuring 68.7 × 53 mm, with 96 components from 34 distinct parts.
Its main chip is the ICE40UP5K-SG48I, from the FPGA family. Other key parts include the AMS1117-1.2, MAX3421EETJ+T, W25Q128JVSIQ, AMS1117-3.3 and FT2232HL-REEL. By type, the board carries 37 capacitors, 36 resistors, 6 ICs, 4 LEDs, 2 crystals and 2 connectors.

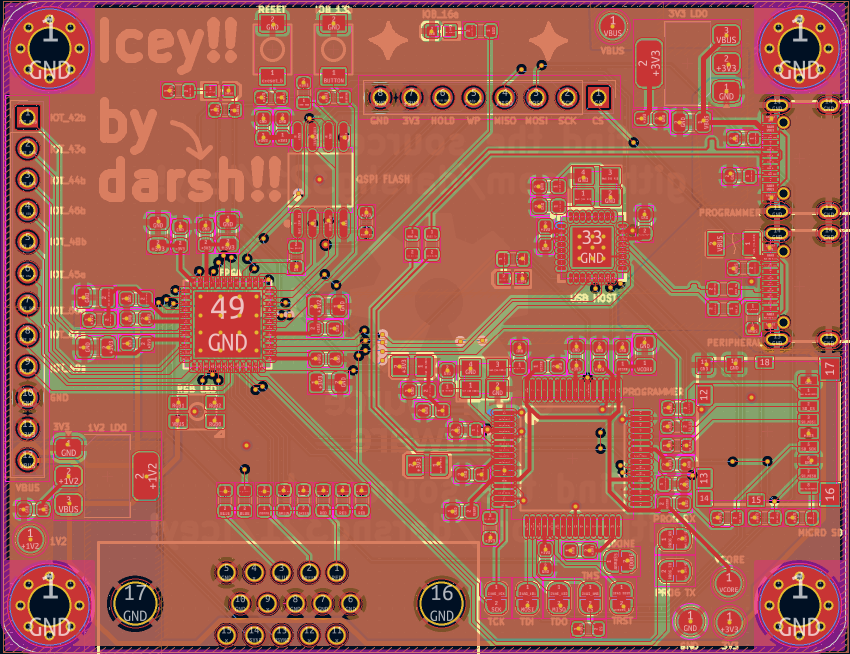

From the project
an Uno-sized FPGA iCE40-UP5K board for learning!
an Uno-sized FPGA iCE40-UP5K board for learning!
it features: - integrated VGA connector with display out - integrated USB peripheral support (such as keyboards!) - programming with usb C via JTAG or UART - QSPI flash - micro SD card - header pins broken out for extra features - LEDs - buttons

Main components on the Icey
Icey bill of materials (BOM)
96 components, 34 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AMS1117-1.2 UMW(友台半导体) | SOT-223-3_TabPin2 | U1 |
| 1 | ICE40UP5K-SG48I LATTICE(莱迪思) | QFN-48_L7.0-W7.0-P0.50-TL-EP5.4-1 | U2 |
| 1 | MAX3421EETJ+T ADI(亚德诺)/MAXIM(美信) | VQFN-32_L5.0-W5.0-P0.50-BL-EP3.2 | U3 |
| 1 | W25Q128JVSIQ W25Q128JVSIQTR Winbond(华邦) | SOIC-8_L5.3-W5.3-P1.27-LS8.0-BL | U4 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U5 |
| 1 | FT2232HL-REEL FT2232HL FTDI(飞特帝亚) | LQFP-64_L10.0-W10.0-P0.50-LS12.0-TL | U6 |
| 2 | X322512MSB4SI YXC(扬兴晶振) | CRYSTAL-SMD_4P-L3.2-W2.5-BL | X1, X2 |
| 1 | Conn_01x12 | PinHeader_1x12_P2.54mm_Vertical | J1 |
| 1 | Conn_01x08 | PinHeader_1x08_P2.54mm_Vertical | J2 |
| 1 | TF-008 SOFNG(硕方) | TF-SMD_TF-008 | Card1 |
| 1 | VGA-002 BOOMELE(博穆精密) | D-SUB-TH_VGA-002 | DSub1 |
| 1 | MF-NSMF020-2 BOURNS | F1206 | F1 |
| 2 | TS-1088-AR02016 XUNPU(讯普) | SW-SMD_L3.9-W3.0-P4.45 | SW2, SW3 |
| 2 | TYPE-C 16PIN 2MD(073) TYPE-C 16PIN 2MD SHOU HAN(首韩) | USB-C-SMD_TYPE-C-16PIN-2MD-073 | USB1, USB2 |
| 3 | KT-0603R KENTO | LED-SMD_L1.6-W0.8-R-RD | LED1, LED2, LED3 |
| 1 | S4-3528RGBTA-A TUOZHAN(拓展光电) | LED-SMD_4P-L3.2-W2.8-LS3.5-TL-1 | LED4 |
| 2 | GZ2012D601TF 600@100MHz Sunlord(顺络) | L0805 | L1, L2 |
| 8 | 4.7uF | C_0805_2012Metric | C1, C5, C9, C14, C31, C33, C35, C37 |
| 5 | 1uF | C_0603_1608Metric | C2, C4, C26, C29, C40 |
| 20 | 100nF | C_0603_1608Metric | C3, C8, C12, C13, C17, C18, C19, C20 +12 |
Show 14 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 22pF | C_0603_1608Metric | C6, C7, C15, C16 |
| 2 | 5.1K | R_0603_1608Metric | R3, R4 |
| 2 | 33 | R_0603_1608Metric | R5, R6 |
| 3 | 1K | R_0603_1608Metric | R9, R25, R29 |
| 3 | 0 | R_0603_1608Metric | R14, R15, R35 |
| 1 | 12K | R_0603_1608Metric | R16 |
| 13 | 10K | R_0603_1608Metric | R17, R19, R20, R21, R34, R38, R39, R41 +5 |
| 1 | 270 | R_0603_1608Metric | R18 |
| 4 | 510 | R_0603_1608Metric | R24, R28, R32, R36 |
| 2 | 2K | R_0603_1608Metric | R26, R27 |
| 1 | 820 | R_0603_1608Metric | R30 |
| 1 | 430 | R_0603_1608Metric | R31 |
| 1 | 100 | R_0603_1608Metric | R33 |
| 2 | 56K | R_0603_1608Metric | R40, R44 |
Icey design files
The KiCad project lives in the darshg321/Icey repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/Icey.kicad_pcb
- SchematicPCB/Icey.kicad_sch
- BOMproduction/JLC_BOM.xls
Icey: common questions
What microcontroller does the Icey use?
The Icey is built around the ICE40UP5K-SG48I, from the FPGA family.
How big is the Icey PCB?
The Icey measures 68.7 × 53 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Icey?
96 components, from 34 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Icey design files?
From the darshg321/Icey repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Icey design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which darshg321 chose for the repository.
Can I test firmware for the Icey without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
