About the TaschenOper PCB

TaschenOper is an open source RP2040/RP2350 PCB design by davedarko, published on GitHub under the MIT license. It is a 2-layer board measuring 60 × 100 mm, with 119 components from 14 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. Other key parts include the H11L1. By type, the board carries 28 capacitors, 25 switches, 25 diodes, 8 resistors, 4 connectors and 2 ICs.

From the project

A handheld inspired by adafruits numpad and certain pocket music devices

A handheld inspired by adafruits numpad and certain pocket music devices.

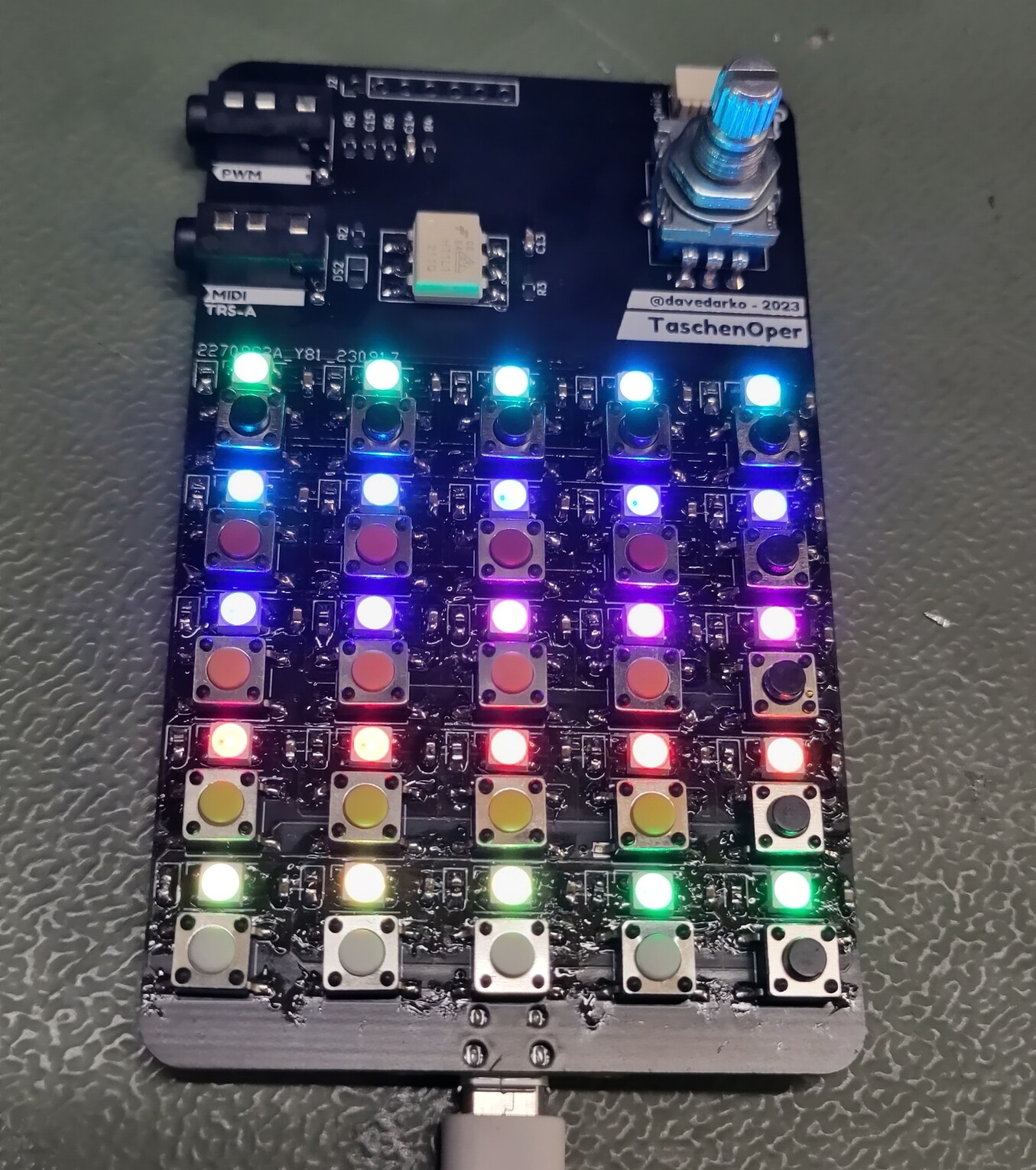

TaschenOper, from the project README — From the project README

Main components on the TaschenOper

Pico H11L1

TaschenOper bill of materials (BOM)

119 components, 14 distinct parts.

Qty	Part	Footprint	Refs
1	Pico	RPi_Pico_SMD	U1
1	H11L1	DIP-6_W8.89mm_SMDSocket_LongPads	U2
2	AudioJack4	Jack_3.5mm_PJ320D_Horizontal	J1, J3
1	Conn_01x07_Female	PinHeader_1x07_P2.54mm_Vertical	J2
1	Conn_01x04_Socket	JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal	J4
27	1N4148	D_0805_2012Metric_Pad1.15x1.40mm_HandSolder	DS1, DS2, DS3, DS4, DS5, DS6, DS7, DS8 +19
25	SW_Push	SW_SPST_PTS645	SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +17
25	WS2812B	LED_SK6812MINI_PLCC4_3.5x3.5mm_P1.75mm	D1, D2, D3, D4, D5, D6, D7, D8 +17
27	100nF	C_0603_1608Metric_Pad1.08x0.95mm_HandSolder	C1, C2, C3, C4, C5, C6, C7, C8 +19
1	47uF	C_0603_1608Metric_Pad1.08x0.95mm_HandSolder	C15
3	220	R_0603_1608Metric_Pad0.98x0.95mm_HandSolder	R1, R2, R4
3	4.7k	R_0603_1608Metric_Pad0.98x0.95mm_HandSolder	R3, R7, R8
1	100	R_0603_1608Metric_Pad0.98x0.95mm_HandSolder	R5
1	1.8k	R_0603_1608Metric_Pad0.98x0.95mm_HandSolder	R6

TaschenOper design files

The KiCad project lives in the davedarko/TaschenOper repository on GitHub; these links point at the commit this page was built from.

LayoutKicad/TaschenOper.kicad_pcb
SchematicKicad/TaschenOper.kicad_sch

TaschenOper: common questions

What microcontroller does the TaschenOper use?

The TaschenOper is built around the Pico, from the RP2040/RP2350 family.

How big is the TaschenOper PCB?

The TaschenOper measures 60 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TaschenOper?

119 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the TaschenOper design files?

From the davedarko/TaschenOper repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the TaschenOper design in my own project?

Yes, under the terms of its MIT license, which davedarko chose for the repository.
