Entrenador atmega328p

About the Entrenador atmega328p PCB

Entrenador atmega328p is an open source AVR/Arduino PCB design by davixcky, published on GitHub. It is a board, with 47 components from 30 distinct parts.

Its main chip is the ATmega328P-PU, from the AVR/Arduino family. Other key parts include the LM7805, 5161AS DECENAS and 5161AS UNIDADES. By type, the board carries 13 resistors, 10 diodes, 10 capacitors, 4 ICs, 3 transistors and 3 connectors.

It belongs with the displays & leds designs in this gallery.

From the project

Entrenador de microcontroladores con ATMega328P (DIP) - Sistemas Embebidos 1, actividad 10.1.12

Sistemas Embebidos 1 — Actividad 10.1.12 (sección 10.1. Microcontrolador ATmega328 del material)

Integrantes: David Orozco, Jose Torres, Leo Rojas

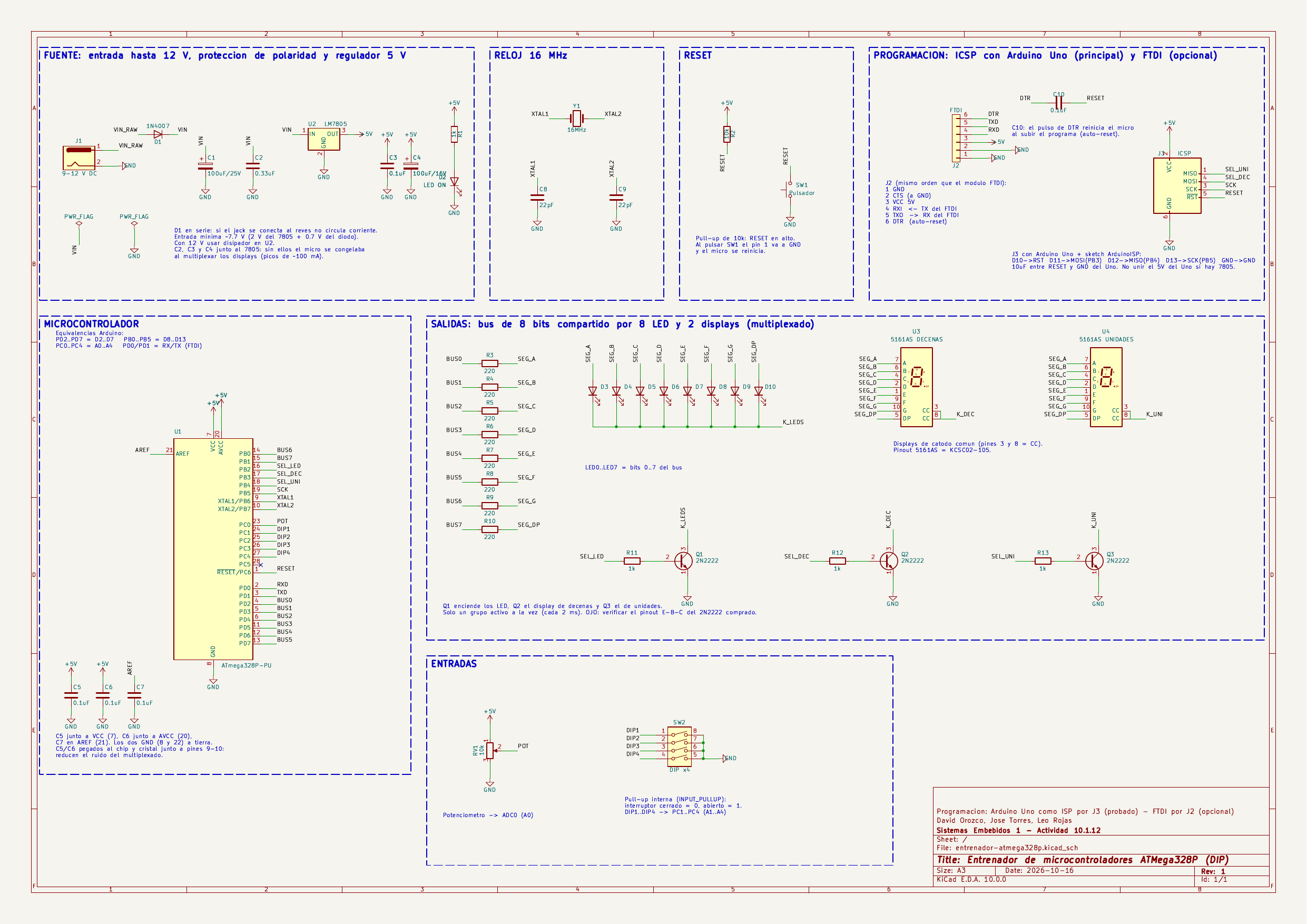

- PDF: kicad/esquematico.pdf (A3). - Proyecto KiCad 10: kicad/entrenador-atmega328p.kicadpro. - El esquemático se genera con kicad/tools/generaresquematico.py y se verifica con: - kicad-cli sch erc → 0 errores, 0 advertencias. - kicad/tools/verificarnetlist.py → compara el netlist exportado por KiCad con las conexiones esperadas: 149 pines, 43 redes, 0 errores. - Las etiquetas con el mismo nombre (por ejemplo SEGA, BUS3) están unidas. - Para…

Main components on the Entrenador atmega328p

ATmega328P-PULM78055161AS DECENAS5161AS UNIDADES

Entrenador atmega328p bill of materials (BOM)

47 components, 30 distinct parts.

QtyPartRefs
1
ATmega328P-PU
U1
1
LM7805
U2
1
5161AS DECENAS
U3
1
5161AS UNIDADES
U4
3
2N2222
Q1, Q2, Q3
1
16MHz
Y1
1
9-12 V DC
J1
1
FTDI
J2
1
ICSP
J3
1
10k
RV1
1
Pulsador
SW1
1
DIP x4
SW2
1
1N4007
D1
1
LED ON
D2
1
LED0
D3
1
LED1
D4
1
LED2
D5
1
LED3
D6
1
LED4
D7
1
LED5
D8
Show 10 more
QtyPartRefs
1
LED6
D9
1
LED7
D10
1
100uF/25V
C1
1
0.33uF
C2
5
0.1uF
C3, C5, C6, C7, C10
1
100uF/16V
C4
2
22pF
C8, C9
4
1k
R1, R11, R12, R13
1
10k
R2
8
220
R3, R4, R5, R6, R7, R8, R9, R10

Entrenador atmega328p design files

The KiCad project lives in the davixcky/entrenador-atmega328p repository on GitHub; these links point at the commit this page was built from.

Entrenador atmega328p: common questions

What microcontroller does the Entrenador atmega328p use?

The Entrenador atmega328p is built around the ATmega328P-PU, from the AVR/Arduino family.

How many components are on the Entrenador atmega328p?

47 components, from 30 distinct parts. The full bill of materials is listed on this page.

Where can I download the Entrenador atmega328p design files?

From the davixcky/entrenador-atmega328p repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Entrenador atmega328p design in my own project?

The repository has no license, so all rights stay with davixcky. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Entrenador atmega328p without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
