Keeb Small Hotswap Encoder Wireless

DeniskaRediska21·Keeb_Small_Hotswap_Encoder_Wireless·Kicad/Keeb_small_symetrical_hotswap_left/Keeb.kicad_pcb

Keeb Small Hotswap Encoder Wireless PCB layout, top view — open source RP2040/RP2350 board by DeniskaRediska21

About the Keeb Small Hotswap Encoder Wireless PCB

Keeb Small Hotswap Encoder Wireless is an open source RP2040/RP2350 PCB design by DeniskaRediska21, published on GitHub. It is a 2-layer board measuring 96.2 × 98.1 mm, with 24 components from 6 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. Other key parts include the KY-040. By type, the board carries 20 switches, 2 ICs and 2 connectors.

It belongs with the keyboards and iot & wireless designs in this gallery.

From the project

This project attempts to create easelly reproducible split ortholinear hotswap mechanical keyboard.

This project attempts to create easelly reproducible split ortholinear hotswap mechanical keyboard.

Gimmics: + This design doesn't require any diodes + Uses PiPico as MC, runs on CircuitPython + Key layouts are changed by dragging a file onto PiPicos storrage + Halves are connected through TypeC + PCB fits into 100x100mm square, so it is very cheap to order from Chineese manifacturers

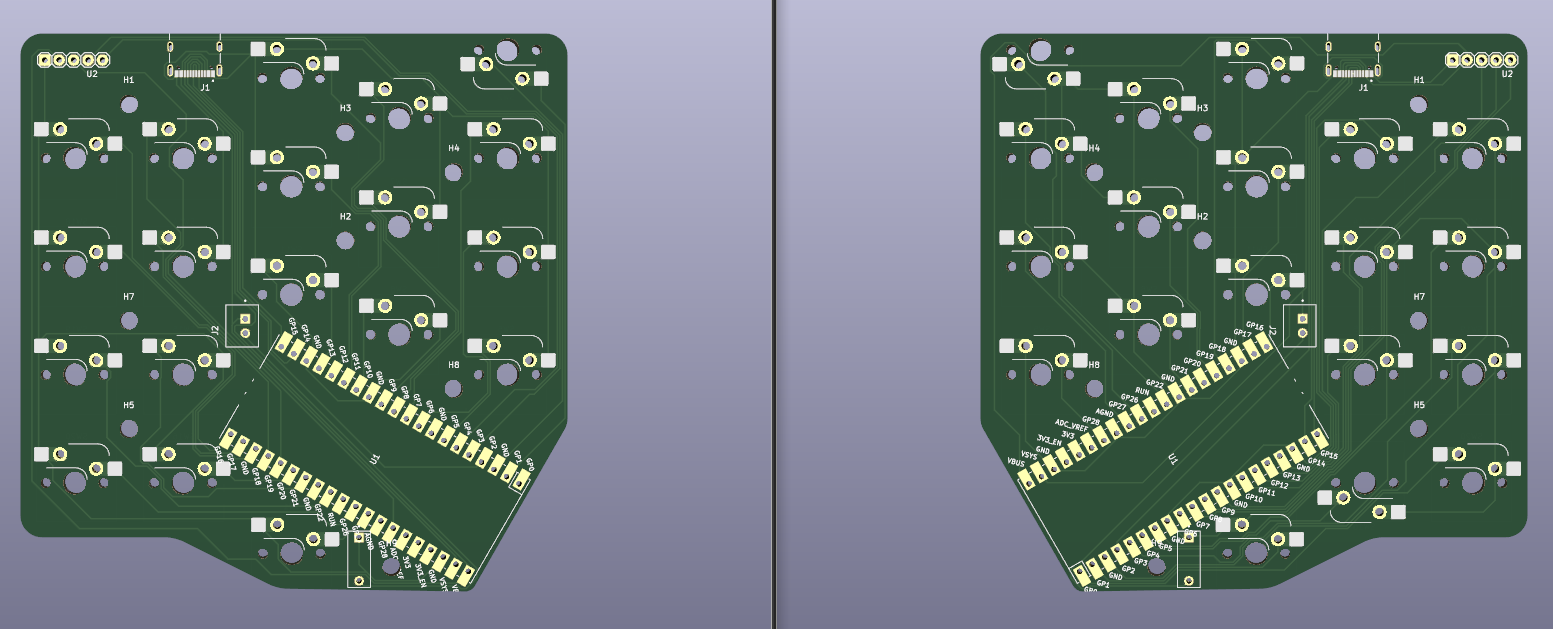

Keeb Small Hotswap Encoder Wireless, from the project README
From the project README

Main components on the Keeb Small Hotswap Encoder Wireless

PicoKY-040

Keeb Small Hotswap Encoder Wireless bill of materials (BOM)

24 components, 6 distinct parts.

QtyPartRefs
1
Pico
U1
1
KY-040
U2
1
TYPE-C-31-M-12
J1
1
B2B-XH-A_LF__SN_
J2
1
DS01-254-L-01BE
S1
19
CherryMX
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +11

Keeb Small Hotswap Encoder Wireless design files

The KiCad project lives in the DeniskaRediska21/Keeb_Small_Hotswap_Encoder_Wireless repository on GitHub; these links point at the commit this page was built from.

Keeb Small Hotswap Encoder Wireless: common questions

What microcontroller does the Keeb Small Hotswap Encoder Wireless use?

The Keeb Small Hotswap Encoder Wireless is built around the Pico, from the RP2040/RP2350 family.

How big is the Keeb Small Hotswap Encoder Wireless PCB?

The Keeb Small Hotswap Encoder Wireless measures 96.2 × 98.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Keeb Small Hotswap Encoder Wireless?

24 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Keeb Small Hotswap Encoder Wireless design files?

From the DeniskaRediska21/Keeb_Small_Hotswap_Encoder_Wireless repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Keeb Small Hotswap Encoder Wireless design in my own project?

The repository has no license, so all rights stay with DeniskaRediska21. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Keeb Small Hotswap Encoder Wireless without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
