Board latest is an open source PCB design by dennisss, published on GitHub under the Apache-2.0 license. It is a 4-layer board measuring 85 × 25 mm, with 28 components from 20 distinct parts.
Other key parts include the AG5300, DS3231MZ, SLS32AIA010MSUSON10XTMA2 and SK6812MINI-E. By type, the board carries 7 capacitors, 6 resistors, 5 ICs, 4 connectors, 3 transistors and 1 battery holder.
It belongs with the power & battery designs in this gallery.
From the project
Monorepo for awesome tools/projects/libraries

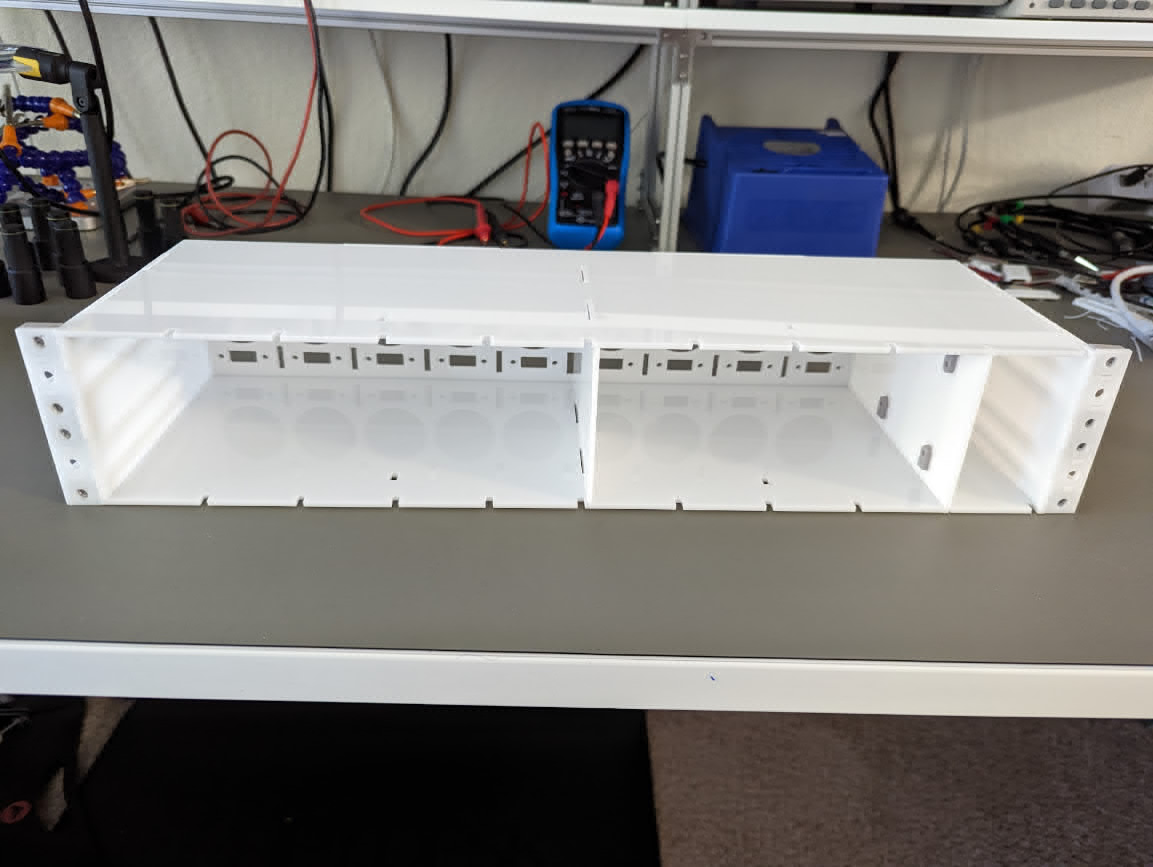

This is a 2U rack mount enclosure for running up to 10 Raspberry Pi 'Model B' form factor SBCs with space for per-board 40mm fan. Additionally provided is a complementary addon board for PoE power delivery, fan control, etc.
- Laser cut pieces - Glue together with Weld-On 4 Acrylic Adhesive - Assemble the laser cut pieces per the arrangement shown in the above pictures (excluding the trays). - If attaching to the legs of an Ikea Lack table, use 4 x (M5 60mm) screws
Main components on the Board latest
Board latest bill of materials (BOM)
28 components, 20 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AG5300 | AG5400 | U1 |
| 1 | DS3231MZ | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | SLS32AIA010MSUSON10XTMA2 | SLS32AIA010MSUSON10XTMA2 | U3 |
| 2 | SK6812MINI-E | SK6812B-SIDE | U4, U5 |
| 2 | 2N7002 | SOT-23 | Q1, Q2 |
| 1 | DMG2305 | SOT-23 | Q3 |
| 1 | PI_POE | PinSocket_1x04_P2.54mm_Horizontal | J1 |
| 1 | PI_GPIO | PinSocket_2x20_P2.54mm_Horizontal | J2 |
| 1 | FAN | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J3 |
| 1 | AUX | Harwin_M20-89016xx_1x16_P2.54mm_Horizontal | J4 |
| 2 | D_Bridge_+AA- | CD-HD2004 | BR1, BR2 |
| 1 | Battery_Cell | BatteryHolder_Keystone_3000_1x12mm | BT1 |
| 1 | 10n | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1 |
| 1 | 470u | CP_Radial_D10.0mm_P5.00mm | C2 |
| 1 | 100n | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C3 |
| 2 | 0.1u | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C4, C8 |
| 1 | 0.1u | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C5 |
| 1 | 1u | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C6 |
| 5 | 10K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R1, R2, R4, R6, R7 |
| 1 | 100 | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R3 |
Board latest design files
The KiCad project lives in the dennisss/dacha repository on GitHub; these links point at the commit this page was built from.
Board latest: common questions
How big is the Board latest?
The Board latest measures 85 × 25 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Board latest?
28 components, from 20 distinct parts. The full bill of materials is listed on this page.
Where can I download the Board latest design files?
From the dennisss/dacha repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Board latest design in my own project?
Yes, under the terms of its Apache-2.0 license, which dennisss chose for the repository.
