About the ESP32 Interface PCB

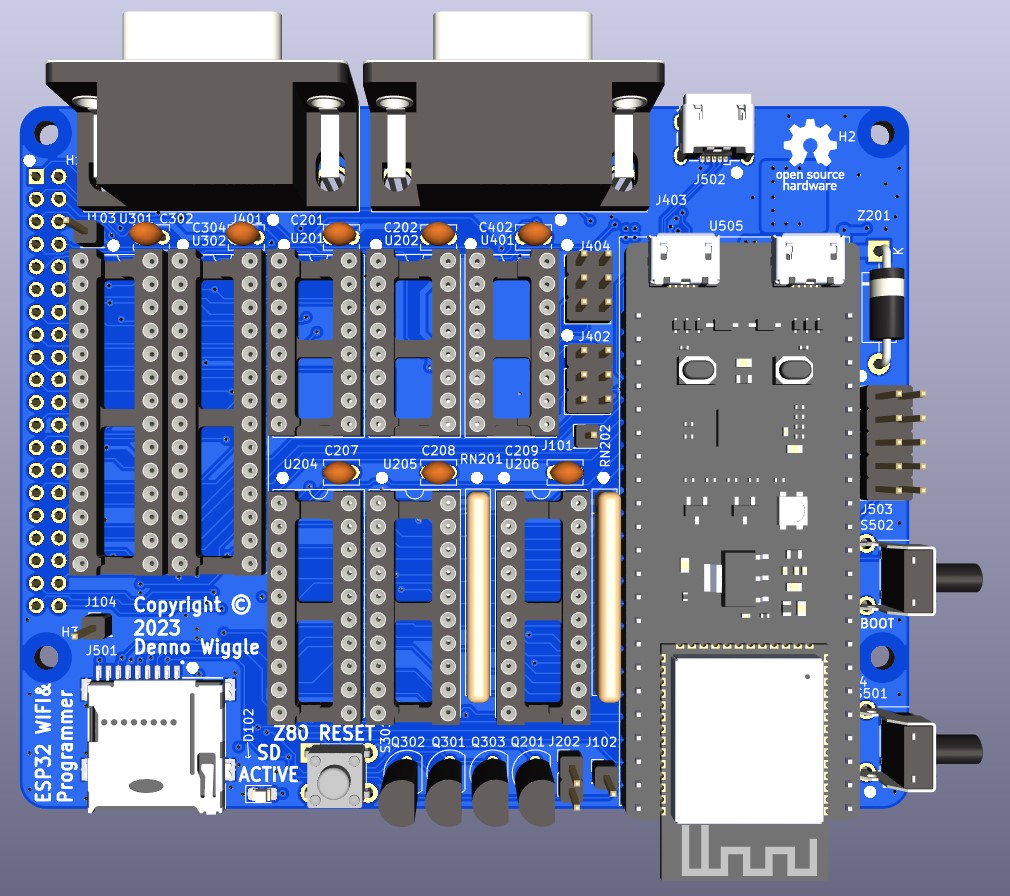

ESP32 Interface is an open source PCB design by dennowiggle, published on GitHub under the LGPL-2.1 license. It is a 4-layer board measuring 100 × 79 mm, with 59 components from 8 distinct parts.
Other key parts include the SN74LVC1G04DBVR, SN74LVC1G125DBVR and SN74LVC8T245DBR. By type, the board carries 28 capacitors, 24 resistors and 7 ICs.
It belongs with the retro computing and usb & debug tools designs in this gallery.
From the project
Facilitate learning the Z80 Retro! hardware and software.
1. The 'output' directory contains the BOM, netlist, and PDF schematic.
3. Silkscreen box on back side should extend around R501.
4. Holes for U505, the ESP32 module, are tight but it is possible to fit the module in. Larger pin holes would be preferred.

Main components on the ESP32 Interface
ESP32 Interface bill of materials (BOM)
59 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SN74LVC1G04DBVR Texas Instruments | SOT-23-5_HandSoldering | U101 |
| 4 | SN74LVC1G125DBVR Texas Instruments | SOT-23-5_HandSoldering | U501, U503, U508, U509 |
| 2 | SN74LVC8T245DBR Texas Instruments | SSOP-24_5.3x8.2mm_P0.65mm | U502, U504 |
| 18 | 885012207045 100nF Würth Elektronik | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C101, C204, C205, C403, C404, C405, C406, C501 +10 |
| 10 | CL21A106KOQNNNG 10uF Samsung Electro-Mechanics | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C203, C206, C210, C301, C303, C305, C401, C502 +2 |
| 3 | RC0805JR-071KL 1K Yaego | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R102, R201, R305 |
| 14 | RC0805JR-0710KL 10K Yaego | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R301, R302, R303, R308, R309, R501, R502, R503 +6 |
| 7 | RC0805JR-0733RL 33R Yaego | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R306, R307, R505, R506, R508, R509, R510 |
ESP32 Interface design files
The KiCad project lives in the dennowiggle/ESP32_Interface repository on GitHub; these links point at the commit this page was built from.
ESP32 Interface: common questions
How big is the ESP32 Interface PCB?
The ESP32 Interface measures 100 × 79 mm, has 4 copper layers and is 1.60484 mm thick.
How many components are on the ESP32 Interface?
59 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the ESP32 Interface design files?
From the dennowiggle/ESP32_Interface repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the ESP32 Interface design in my own project?
Yes, under the terms of its LGPL-2.1 license, which dennowiggle chose for the repository.
