BME280-Breakout

Destination-SPACE·BME280-Breakout·CAD-files/bme280Breakout.kicad_pcb

BME280-Breakout layout, top view — open source board by Destination-SPACE
Simulate this board

About the BME280-Breakout

BME280-Breakout is an open source PCB design by Destination-SPACE, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 12.7 × 12.7 mm, with 10 components from 5 distinct parts.

Other key parts include the BME280. By type, the board carries 4 resistors, 3 connectors, 2 capacitors and 1 IC.

It belongs with the sensors and dev boards & breakouts designs in this gallery.

From the project

BME280 Breakout Board KiCad files

Requires symbols and footprints from DS Global Library

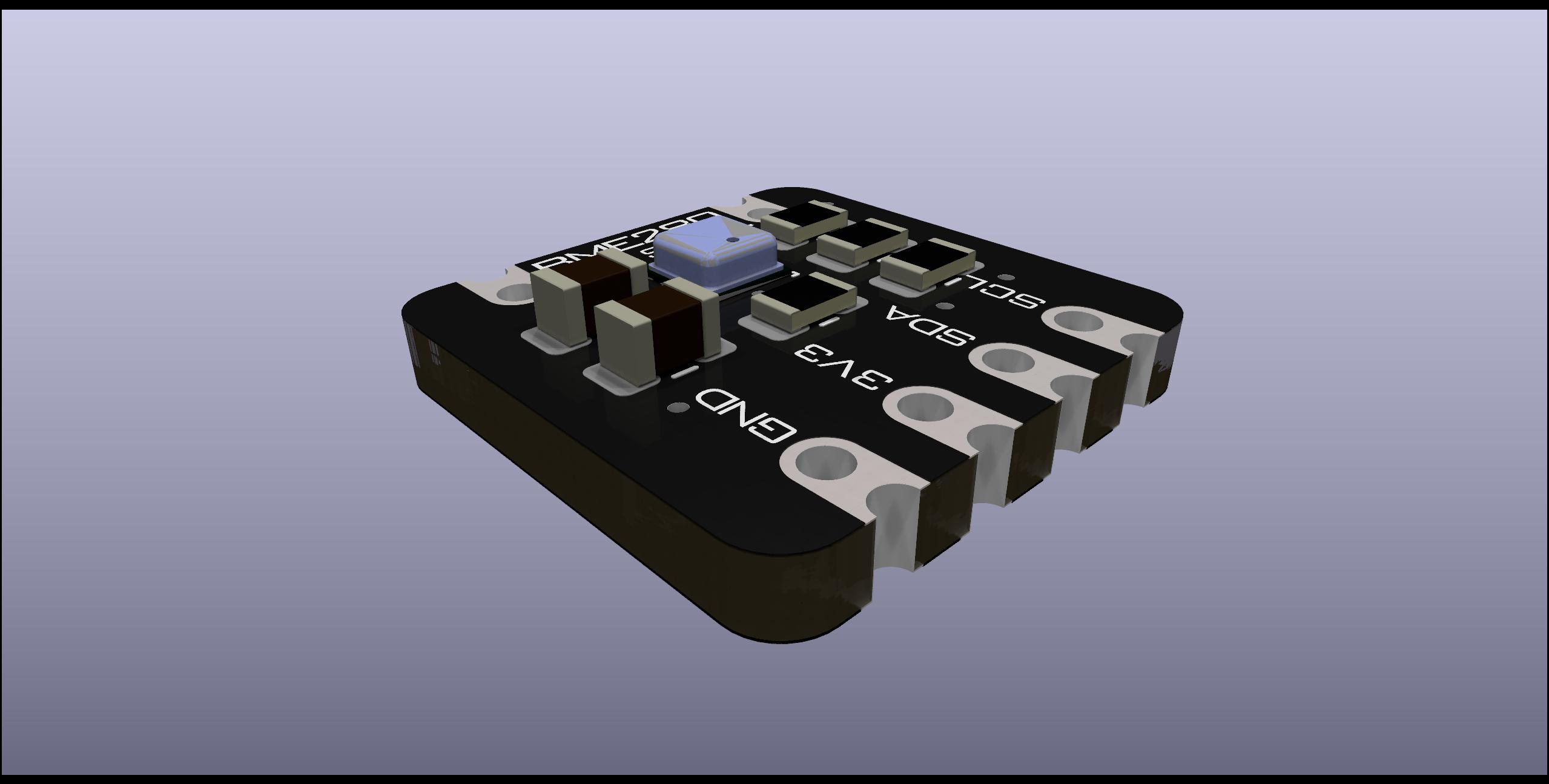

BME280-Breakout, from the project README
From the project README

Main components on the BME280-Breakout

BME280

BME280-Breakout bill of materials (BOM)

10 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BME280
Bosch Sensortec
U1
1
Castellated_Conn_01x04
J1
2
Castellated_Conn_01x01
J2, J3
2
CL21B104KBCNNNC
0.1uF
Samsung Electro-Mechanics
C1, C2
4
ERA-6AEB472V
4.7K
Panasonic Electronic Components
R1, R2, R3, R4

BME280-Breakout design files

The KiCad project lives in the Destination-SPACE/BME280-Breakout repository on GitHub; these links point at the commit this page was built from.

BME280-Breakout: common questions

How big is the BME280-Breakout?

The BME280-Breakout measures 12.7 × 12.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BME280-Breakout?

10 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BME280-Breakout design files?

From the Destination-SPACE/BME280-Breakout repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the BME280-Breakout design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which Destination-SPACE chose for the repository.
