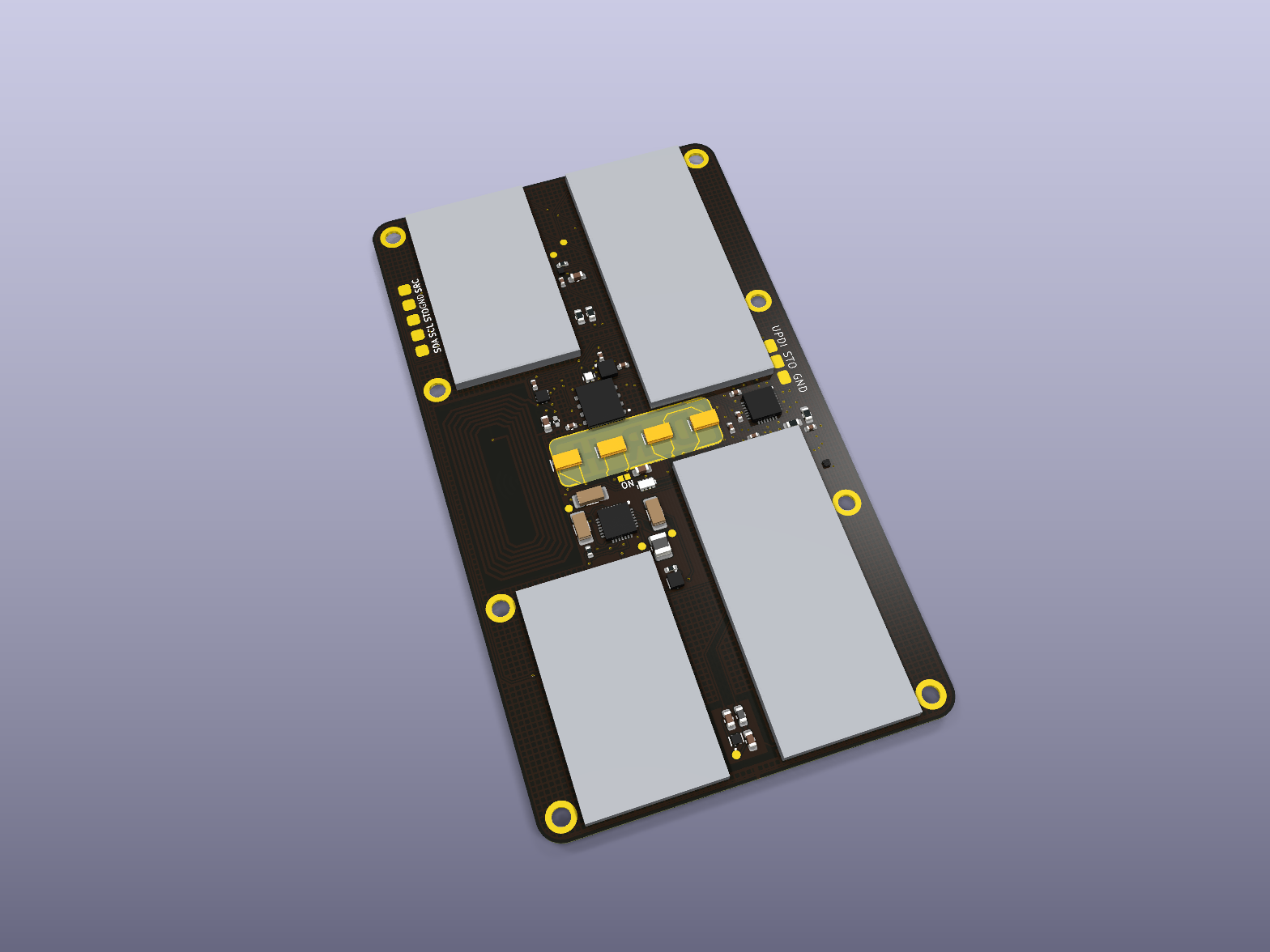

Solar business card
About the Solar business card PCB
Solar business card is an open source PCB design by devinhorowitz, published on GitHub under the MIT license. It is a 2-layer board measuring 50.8 × 88.9 mm, with 42 components from 35 distinct parts.
Other key parts include the AVR64EA28-E/STX, ADXL367BCCZ-RL7, NT3H2211W0FHKH, TPS22916CYFPR and MB85RC512TYPN-GS-AWEWE1. By type, the board carries 18 capacitors, 9 resistors, 8 ICs, 4 diodes, 2 inductors and 1 transistor.
It belongs with the power & battery designs in this gallery.
From the project
This is what PCBWay ships: the 1-up card still attached to its 65.6 × 103.7 mm frame, before you snap the two tabs. The gold ring inset in the frame is the hard-gold plating bus, mask-opened so the plating rack has bare copper to clip, with a spur crossing each break tab into the
This is what PCBWay ships: the 1-up card still attached to its 65.6 × 103.7 mm frame, before you snap the two tabs. The gold ring inset in the frame is the hard-gold plating bus, mask-opened so the plating rack has bare copper to clip, with a spur crossing each break tab into the card at x = 25.4. Both faces are raytraced from the panel CI actually generates — see scripts/render.py, and "The PCBWay panel" below. No components are shown because none are fitted at this stage; that is the fab's deliverable, not an omission.
Main components on the Solar business card
Solar business card bill of materials (BOM)
42 components, 35 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AVR64EA28-E/STX AVR64EA28 (VQFN28) Microchip Technology | U1 | U1 |
| 1 | ADXL367BCCZ-RL7 ADXL367 Analog Devices | ADXL367 CC-12-4_ADI | U3 |
| 1 | NT3H2211W0FHKH NT3H2211 NXP Semiconductors | U5 | U5 |
| 2 | TPS22916CYFPR TPS22916C Texas Instruments | TPS22916_YFP0004 | U6, U10 |
| 1 | MB85RC512TYPN-GS-AWEWE1 MB85RC512TY RAMXEED | U7_DFN8 | U7 |
| 1 | 10AEM10300C0000 AEM10300 e-peas | U8_QFN28 | U8 |
| 1 | TPS7A0233PDQNR Texas Instruments | Texas_X2SON-4_1x1mm_P0.65mm | U9 |
| 1 | DMG1012T-7 DMG1012T Diodes Incorporated | SOT-523 | Q2 |
| 1 | LA P47F-V2BB-24-3B5A-30-R18-Z LA P47F ams-OSRAM | D2 | D2 |
| 1 | LA P47F-V2BB-24-3B5A-30-R18-Z LA P47F ams-OSRAM | D3 | D3 |
| 1 | LA P47F-V2BB-24-3B5A-30-R18-Z LA P47F ams-OSRAM | D4 | D4 |
| 1 | LA P47F-V2BB-24-3B5A-30-R18-Z LA P47F ams-OSRAM | D5 | D5 |
| 1 | BLM18PG221SN1D ferrite Murata | L_0603_1608Metric | FB1 |
| 1 | DFE252010F-100M=P2 10uH Murata | L_1008_2520Metric | L2 |
| 2 | GRT155R71H104KE01D 100nF Murata | C1 | C1, C29 |
| 1 | GRT155R71H104KE01D 100nF Murata | C3 | C3 |
| 2 | GRT188R61C106KE13D 10uF Murata | C_0603_1608Metric | C4, C13 |
| 1 | GRT155R71H104KE01D 100nF Murata | C5 | C5 |
| 1 | GRT155R71H104KE01D 100nF Murata | C6 | C6 |
| 1 | GRT155R71H104KE01D 100nF Murata | C8 | C8 |
Show 15 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | QSCP251Q470G1GV001T 47pF Johanson Technology | C_0603_1608Metric | C9 |
| 1 | GRT155R71C224KE01D 220nF Murata | C11 | C11 |
| 1 | GRT155R71H104KE01D 100nF Murata | C12 | C12 |
| 1 | GRT188R71E105KE13D 1uF Murata | C_0603_1608Metric | C22 |
| 1 | GRM188Z71E225ME43D 2.2uF Murata | C_0603_1608Metric | C23 |
| 1 | GRT155R71H103KE01D 10nF Murata | C1 | C24 |
| 1 | GRM319R61C226KE15D 22uF Murata | C_1206_3216Metric_HS_LP085 | C25 |
| 2 | GRM319R61E106KA12D 10uF Murata | C_1206_3216Metric_HS_LP085 | C26, C27 |
| 1 | GRT155R71H104KE01D 100nF Murata | C_0402_1005Metric | C28 |
| 3 | MCT0603MD2004BP500 2M Vishay | R_0603_1608Metric | R5, R6, R15 |
| 1 | AC0402FR-071ML 1M Yageo | R14 | R14 |
| 1 | MCT0603MD1004BP500 1M Vishay | R_0603_1608Metric | R16 |
| 2 | AC0402FR-071ML 1M Yageo | C1 | R17, R18 |
| 1 | EXB-28V151JX 150R Panasonic | R_Array_Convex_4x0402 | RN1 |
| 1 | EXB-24V472JX 4.7k Panasonic | R_Array_Convex_2x0402 | RN2 |
Solar business card design files
The KiCad project lives in the devinhorowitz/solar-business-card repository on GitHub; these links point at the commit this page was built from.
Solar business card: common questions
How big is the Solar business card PCB?
The Solar business card measures 50.8 × 88.9 mm, has 2 copper layers and is 0.6 mm thick.
How many components are on the Solar business card?
42 components, from 35 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Solar business card design files?
From the devinhorowitz/solar-business-card repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Solar business card design in my own project?
Yes, under the terms of its MIT license, which devinhorowitz chose for the repository.
