About the Optimus-Hub PCB

Optimus-Hub is an open source PCB design by devisunofficial, published on GitHub. It is a 4-layer board measuring 72.7 × 88.7 mm, with 76 components from 28 distinct parts.

Other key parts include the GL850G-HHY60, GL823K-HCY04, TPD2E001DRYR, TPS2552DBVR and HX TF PUSH. By type, the board carries 40 capacitors, 11 ICs, 11 resistors, 2 crystals, 2 LEDs and 2 diodes.

It belongs with the usb & debug tools designs in this gallery.

From the project

Optimus hub is a USB 2.0 hub which has USB Type-C upstream port and 6 downstream USB Type-A port and one TF-Card reader

Optimus hub is a USB 2.0 hub which has USB Type-C upstream port and 6 downstream USB Type-A port and one TF-Card reader

- Optimus Eyes colour changes when there is a fault in downstream ports - 6 downstram Ports with true USB 2.0 capabilities (it should have) - ESD protection for each Port - Master switch that automatically cuts downstram power to save equipments - A TF-Card Reader on USB-HUB

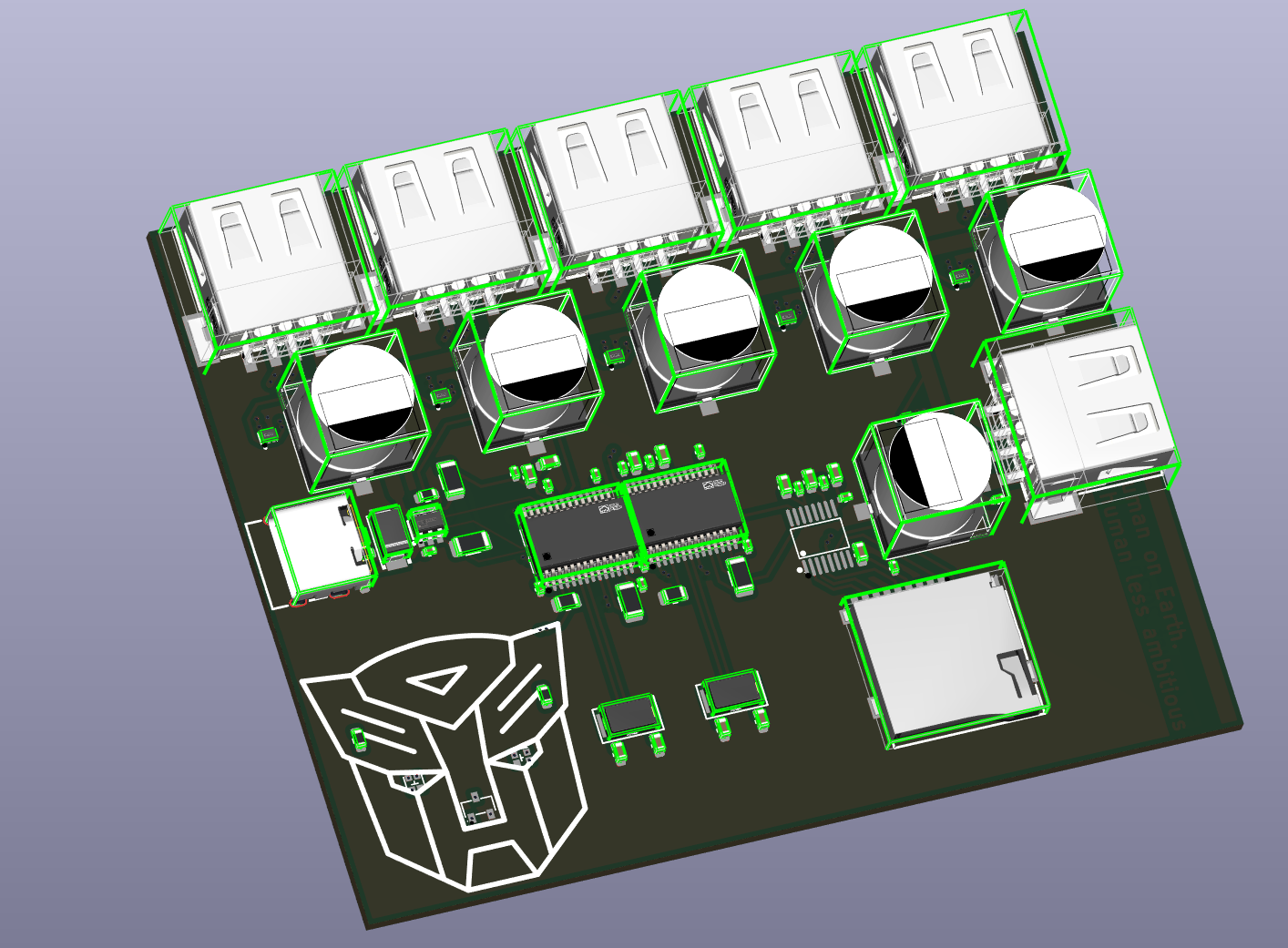

Optimus-Hub, from the project README
From the project README

Main components on the Optimus-Hub

GL850G-HHY60GL823K-HCY04TPD2E001DRYRTPS2552DBVRHX TF PUSH

Optimus-Hub bill of materials (BOM)

76 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
GL850G-HHY60
GENESYS(创惟)
U1, U9
1
GL823K-HCY04
GENESYS(创惟)
U2
6
TPD2E001DRYR
TI(德州仪器)
U3, U4, U6, U7, U10, U11
1
TPS2552DBVR
TI(德州仪器)
U5
1
HX TF PUSH
hanxia(韩下)
U8
1
2N7002 7002
CJ(江苏长电/长晶)
Q1
2
ABM3-12.000MHZ-D2Y-T
Crystal
ABRACON
X1, X2
1
BX-TYPE-A-MWT4P
DownStream-1
Bossie(博锡)
USB1
1
TYPE-C16PIN
SHOU HAN(首韩)
USB2
1
BX-TYPE-A-MWT4P
DownStream-2
Bossie(博锡)
USB3
3
BX-TYPE-A-MWT4P
DownStream-3
Bossie(博锡)
USB4, USB6, USB7
1
BX-TYPE-A-MWT4P
DownStream-4
Bossie(博锡)
USB5
2
SZYY1615RGB-B 4pin
SZYY1615RGB-B 4PIN
yongyu(永裕光电)
LED1, LED3
1
USBLC6-2P6
ST(意法半导体)
D1
1
SMAJ5.0A
RUILON(瑞隆源)
D3
4
22PF
22pF
C1, C2, C35, C36
1
0.1NF
0.1nF
C3
1
22UF
22uF
C4
17
0.1UF
0.1uF
C5, C7, C9, C11, C13, C16, C18, C19 +9
6
10UF
10uF
C6, C15, C17, C27, C28, C33
Show 8 more
QtyPartRefs
6
120UF
120uF
C8, C10, C12, C14, C38, C40
3
100NF
100nF
C22, C25, C26
2
4.7UF
4.7uF
C23, C24
2
680
R1, R11
4
10K
10k
R2, R6, R7, R10
1
3k
R3
2
5.1K
5.1k
R4, R5
2
100
R8, R9

Optimus-Hub design files

The KiCad project lives in the devisunofficial/Optimus-Hub repository on GitHub; these links point at the commit this page was built from.

Optimus-Hub: common questions

How big is the Optimus-Hub PCB?

The Optimus-Hub measures 72.7 × 88.7 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Optimus-Hub?

76 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Optimus-Hub design files?

From the devisunofficial/Optimus-Hub repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Optimus-Hub design in my own project?

The repository has no license, so all rights stay with devisunofficial. Use it as a reference, and ask the author before reusing the design.
