Ahokore

dezlidezlidezli·ahokore·v2-fantail/pcbfiles/ahokore.kicad_pcb

Ahokore PCB layout, top view — open source Nordic nRF board by dezlidezlidezli
Simulate this board

About the Ahokore PCB

Ahokore is an open source Nordic nRF PCB design by dezlidezlidezli, published on GitHub under the Custom license license. It is a 2-layer board measuring 265.7 × 103.8 mm, with 98 components from 24 distinct parts.

Its main chip is the YJ-18010, from the Nordic nRF family. Other key parts include the AP2112K-3.3TRG1 and TP4054. By type, the board carries 40 diodes, 38 switches, 9 resistors, 4 capacitors, 3 ICs and 1 transistor.

It belongs with the iot & wireless and keyboards designs in this gallery.

From the project

Ahokore is a 36-key one-piece split keyboard, with full wireless functionality.

Ahokore is a 36-key one-piece split keyboard, with full wireless functionality. Stagger is copied from the Ferris, as I found that very comfortable. The name is "wireless" translated into Maori.

V1 is tested to be fully working, and uses a nice!nano.

V2 has been tested and is fully working, and a small group-buy has been run. Extras will be available within a few weeks (written on 30/6/21), on store.dez.li.

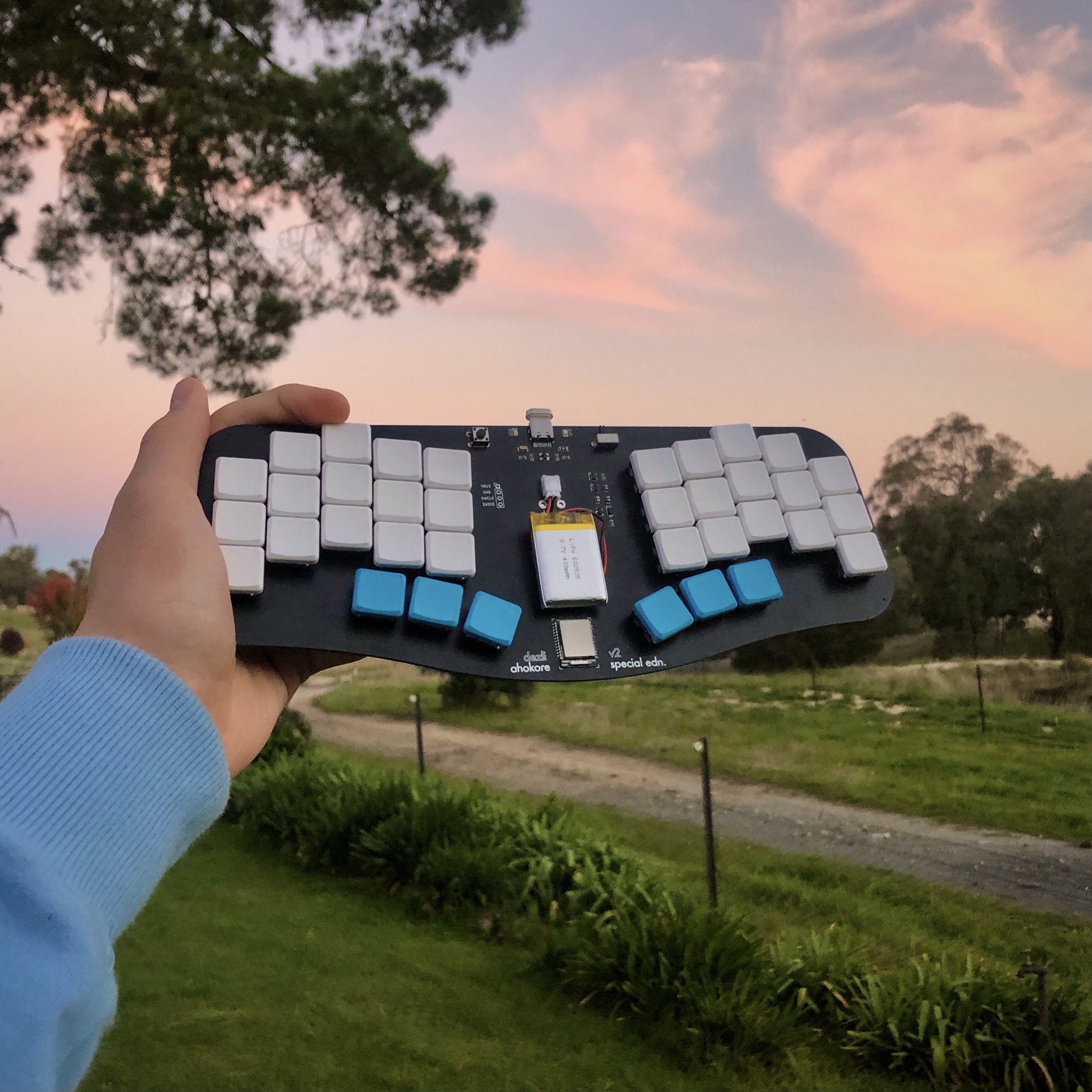

Ahokore, from the project README
From the project README

Main components on the Ahokore

AP2112K-3.3TRG1TP4054YJ-18010

Ahokore bill of materials (BOM)

98 components, 24 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP2112K-3.3TRG1
AP2112K-3.3
Diodes Incorporated
U2
1
TP4054
Youtai Semiconductor Co., Ltd.
U3
1
YJ-18010
nRF52840_holyiot_18010
Holyiot
U4
1
AO3401A
BORN
Q1
1
Battery_Cell
JST Sales America Inc.
BT1
1
1206L050/15YR
500ma
Littelfuse
F1
1
SW_SPST
Schurter Inc.
SW1
36
SW_Push
SW2, SW3, SW4, SW5, SW6, SW7, SW8, SW9 +28
1
OS102011MA1QN1
SW_SPDT
C&K
SW38
1
TYPE-C-31-M-12
HRO-TYPE-C-31-M-12
Korean Hroparts Elec
USB1
1
1N5819W
1N5819
LGE
D1
1
NCD0805R1
POWERLED
Foshan NationStar Optoelectronics
D2
36
1N4148W
D_Small
Diotec
D3, D4, D5, D6, D7, D8, D9, D10 +28
1
17-21SUYC/TR8
LED_Small
Hubei KENTO Elec
D39
1
SR05
Leiditech
D40
1
CL21A475KAQNNNE
4.7uF
Samsung Electro-Mechanics
C1
1
1206B472K202NT
4.7n
FH(Guangdong Fenghua Advanced Tech)
C2
2
CL21B105KBFNNNE
1uF
Samsung Electro-Mechanics
C3, C4
2
0805W8F5101T5E
5.1k
Uniroyal Elec
R1, R5
2
0805W8F1002T5E
10k
Uniroyal Elec
R2, R3
Show 4 more
QtyPartRefs
2
0805W8F1001T5E
1k
Uniroyal Elec
R4, R9
1
0805W8F1004T5E
1M
Uniroyal Elec
R6
1
0805W8F8063T5E
806k
Uniroyal Elec
R7
1
0805W8F2004T5E
2M
Uniroyal Elec
R8

Ahokore design files

The KiCad project lives in the dezlidezlidezli/ahokore repository on GitHub; these links point at the commit this page was built from.

Ahokore: common questions

What microcontroller does the Ahokore use?

The Ahokore is built around the YJ-18010, from the Nordic nRF family.

How big is the Ahokore PCB?

The Ahokore measures 265.7 × 103.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ahokore?

98 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Ahokore design files?

From the dezlidezlidezli/ahokore repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Ahokore design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Ahokore without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
