Adc
About the Adc PCB
Adc is an open source PCB design by dimitrit, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 81 × 36 mm, with 5 components from 5 distinct parts.
Other key parts include the AD7819. By type, the board carries 2 connectors, 2 capacitors and 1 IC.
It belongs with the retro computing designs in this gallery.
From the project
A range of gadgets that can be plugged in to the PAL-1 RIOT Expansion Module to provide specific functionality.

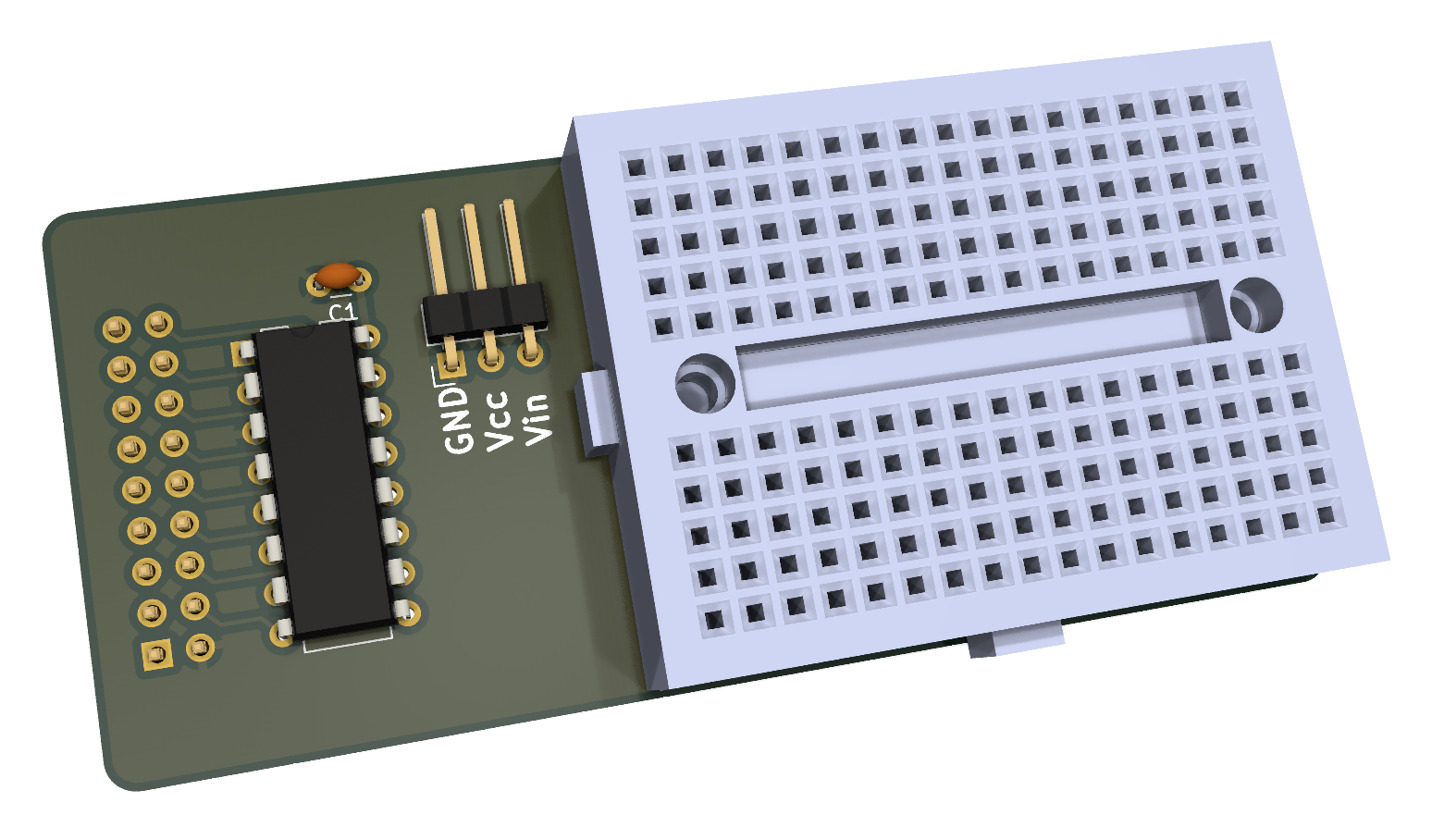

The PAL1-ADC is an Analog-to-Digital Converter for the PAL-1 system intended to plug in to the PAL-1 RIOT Expansion Module[^1].
The analog-to-digital converter enables high throughput data capture (up to 200 kSPS) via an 8-bit 'bus'. A small on-board prototype area facilitates experimentation. Refer to the AD7819 datasheet[^2] for details.
The wozfp.a65 and bcdfp.a65 source files are from Jeff Tranter's github repository and have been modified for vasm6502oldstyle` syntax.[^3]
Main components on the Adc
Adc bill of materials (BOM)
5 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AD7819 | DIP-16_W7.62mm | U1 |
| 1 | Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Horizontal | J1 |
| 1 | Conn_RIOT | PinHeader_2x09_P2.54mm_Vertical | J2 |
| 1 | 0.1uF | C_Disc_D3.0mm_W1.6mm_P2.50mm | C1 |
| 1 | 10uF | CP_Radial_D5.0mm_P2.50mm | C2 |
Adc design files
The KiCad project lives in the dimitrit/pal1gadgets repository on GitHub; these links point at the commit this page was built from.
- Layoutadc/kicad/adc.kicad_pcb
- Schematicadc/kicad/adc.kicad_sch
Adc: common questions
How big is the Adc PCB?
The Adc measures 81 × 36 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Adc?
5 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Adc design files?
From the dimitrit/pal1gadgets repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Adc design in my own project?
Yes, under the terms of its GPL-3.0 license, which dimitrit chose for the repository.
