Iec
About the Iec PCB

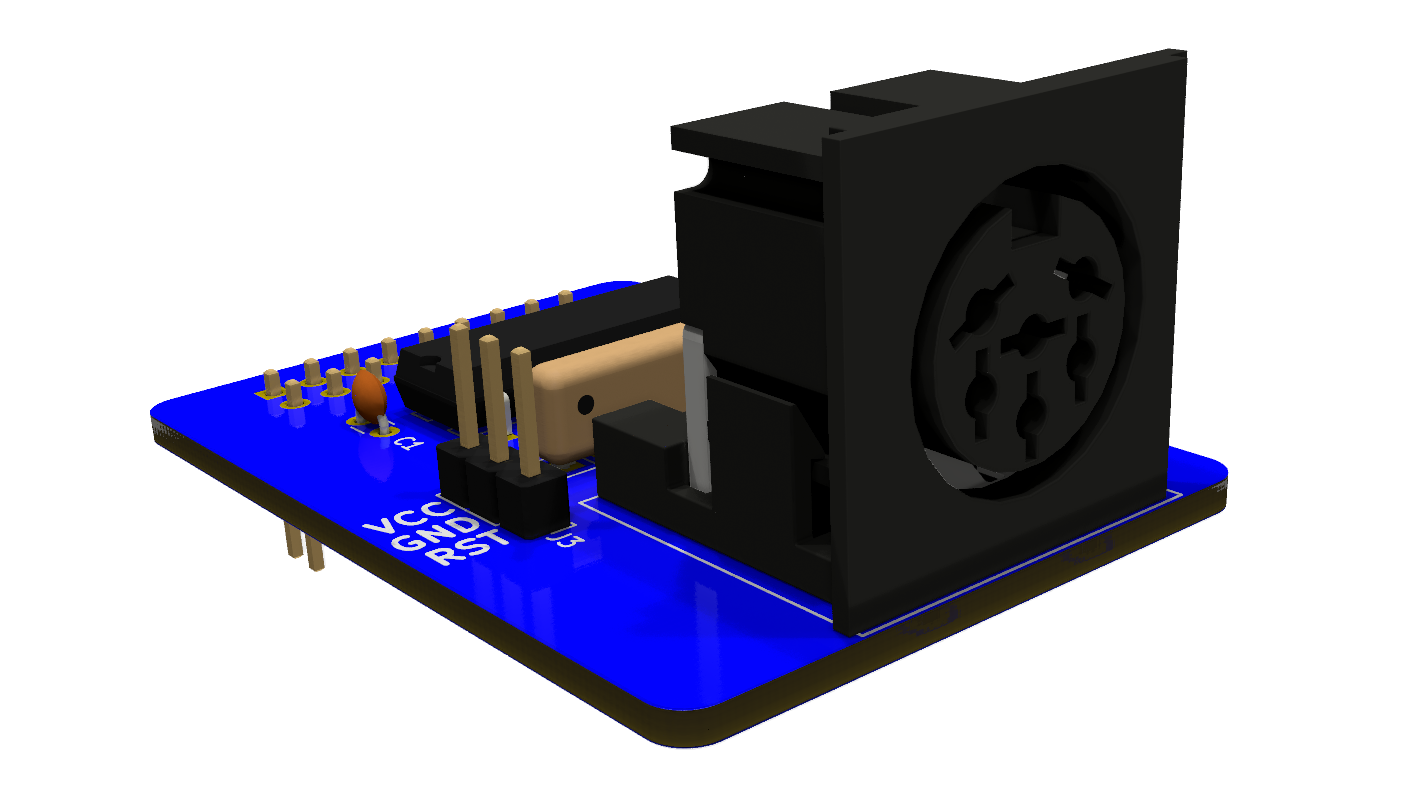

Iec is an open source PCB design by dimitrit, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 48.1 × 34 mm, with 6 components from 6 distinct parts.
Other key parts include the 74LS06. By type, the board carries 3 connectors, 1 IC, 1 capacitor and 1 resistor.
It belongs with the retro computing designs in this gallery.
From the project
A range of gadgets that can be plugged in to the PAL-1 RIOT Expansion Module to provide specific functionality.
The PAL1-IEC gadget is an IEC/Serial adapter for the PAL-1 system intended to plug in to the PAL-1 RIOT Expansion Module.[^1]
The IEC gadget allows Commodore disk storage devices and printers to be connected to the PAL-1. The schematic is based on an original design by D McMurtrie.[^2]
[^1]: Liu Ganning, ‘RIOT EXPANSION’, 2021 [accessed 26 January 2024]. [^2]: Dave McMurtrie, 'Implementing Commodore's IEC bus protocol on a KIM-1 single board computer', 2022 [accessed 12 March 2024]
Main components on the Iec
Iec bill of materials (BOM)
6 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS06 | DIP-14_W7.62mm | U1 |
| 1 | Conn_RIOT | PinHeader_2x09_P2.54mm_Vertical | J1 |
| 1 | DIN-6 | DIN-6 | J2 |
| 1 | Conn_Ext | PinHeader_1x03_P2.54mm_Vertical | J3 |
| 1 | 0.1uF | C_Disc_D3.0mm_W1.6mm_P2.50mm | C1 |
| 1 | 1K | R_Array_SIP5 | RN1 |
Iec design files
The KiCad project lives in the dimitrit/pal1gadgets repository on GitHub; these links point at the commit this page was built from.
- Layoutiec/kicad/iec.kicad_pcb
- Schematiciec/kicad/iec.kicad_sch
Iec: common questions
How big is the Iec PCB?
The Iec measures 48.1 × 34 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Iec?
6 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the Iec design files?
From the dimitrit/pal1gadgets repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Iec design in my own project?
Yes, under the terms of its GPL-3.0 license, which dimitrit chose for the repository.
