Rtc

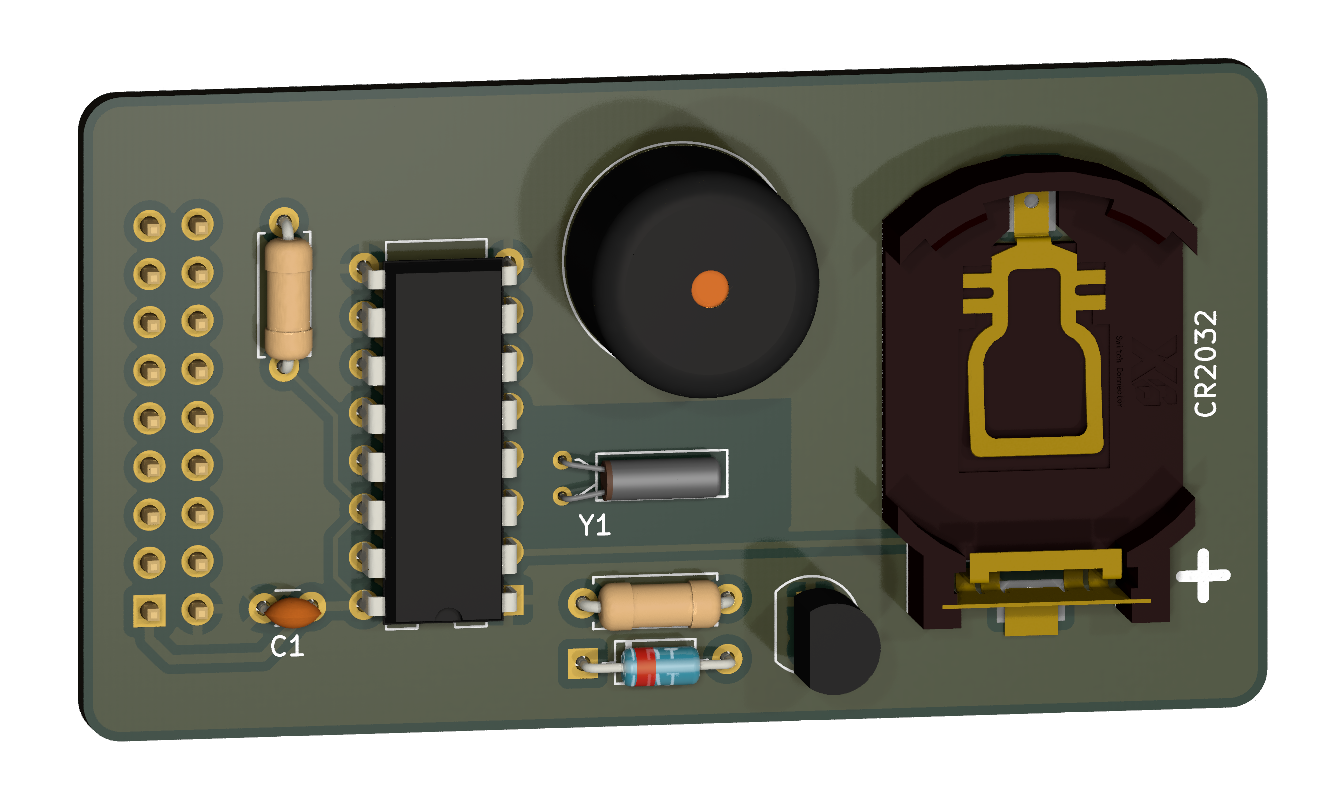

About the Rtc PCB
Rtc is an open source PCB design by dimitrit, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 62.5 × 34 mm, with 10 components from 10 distinct parts.
Other key parts include the DS1305N. By type, the board carries 2 resistors, 1 IC, 1 transistor, 1 crystal, 1 connector and 1 battery holder.
It belongs with the retro computing designs in this gallery.
From the project
A range of gadgets that can be plugged in to the PAL-1 RIOT Expansion Module to provide specific functionality.
PAL1-RTC is a real time clock/calendar for the PAL-1 system intended to plug in to the PAL-1 RIOT Expansion Module.[^1]
The clock/calendar provides seconds, minutes, hours, day, date, month, and year information. The end of the month date is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with AM/PM indicator. In addition, 96 bytes of NV RAM are provided for data storage. Refer to the DS1305 datasheet for details.[^2]
Main components on the Rtc
Rtc bill of materials (BOM)
10 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DS1305N | DIP-16_W7.62mm | U1 |
| 1 | 2N3904 | TO-92_Inline_Wide | Q1 |
| 1 | 32.768khz | Crystal_C26-LF_D2.1mm_L6.5mm_Horizontal | Y1 |
| 1 | Conn_RIOT | PinHeader_2x09_P2.54mm_Vertical | J1 |
| 1 | CR2032 | CH7410-2032 | BT1 |
| 1 | Buzzer | Buzzer_12x9.5RM7.6 | BZ1 |
| 1 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1 |
| 1 | 0.1uF | C_Disc_D3.0mm_W1.6mm_P2.50mm | C1 |
| 1 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 1 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
Rtc design files
The KiCad project lives in the dimitrit/pal1gadgets repository on GitHub; these links point at the commit this page was built from.
- Layoutrtc/kicad/rtc.kicad_pcb
- Schematicrtc/kicad/rtc.kicad_sch
Rtc: common questions
How big is the Rtc PCB?
The Rtc measures 62.5 × 34 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rtc?
10 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the Rtc design files?
From the dimitrit/pal1gadgets repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Rtc design in my own project?
Yes, under the terms of its GPL-3.0 license, which dimitrit chose for the repository.
