CMDB Adv

Distaff·RPi_CM_Drone_Board·pcb_CMDB_Adv/CMDB_Adv.kicad_pcb

CMDB Adv PCB layout, top view — open source Raspberry Pi board by Distaff

About the CMDB Adv PCB

CMDB Adv is an open source Raspberry Pi PCB design by Distaff, published on GitHub under the MIT license. It is a 6-layer board measuring 59.7 × 78 mm, with 9 components from 9 distinct parts.

Its main chip is the 10164227-1001A1RLF, from the Raspberry Pi family.

It belongs with the robotics & motion and dev boards & breakouts designs in this gallery.

From the project

Source of the CM5-based drone controller used for onboard image processing, communication, and high-level automation. Originally created for IARC2026 (drone engineering competition), used in other competitions as well.

IARC HAT Provides programmable ESP32-S3, with SX-1262 for LoRa connectivity, killswitch that disables FC, and ESC/FC connectors.

3D render: | Front | Back | | ------------------------------------------------------------ | ------------------------------------------------------------ | | | |

3D render: | Front | Back | | ------------------------------------------------------------ | ------------------------------------------------------------ | | | |

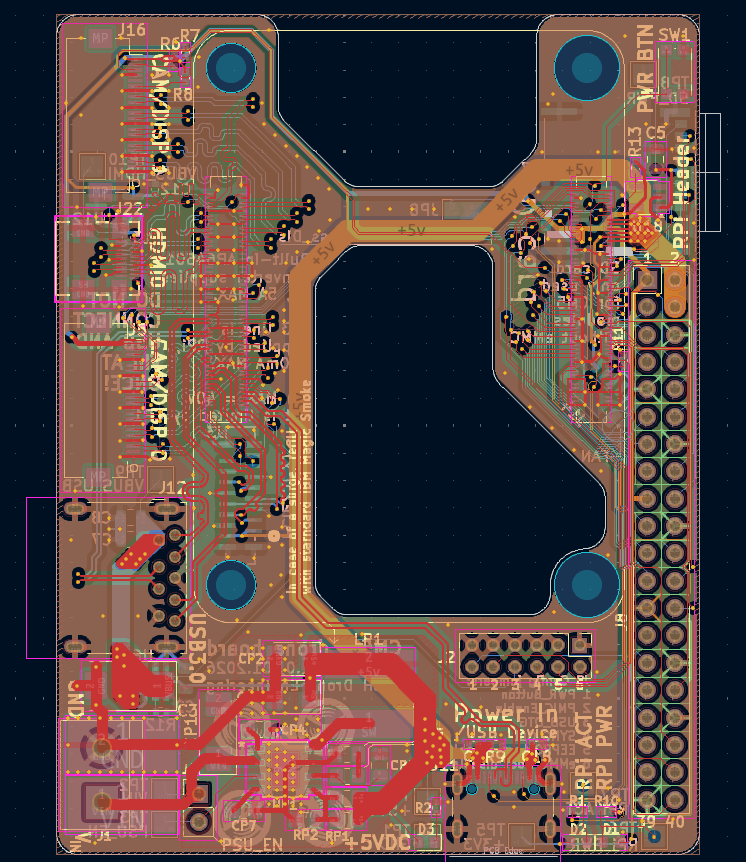

CMDB Adv, from the project README
From the project README

CMDB Adv bill of materials (BOM)

9 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
POWER TERMINAL
J1
1
CONN_02X06_ODD_EVEN
Bus_M.2_Socket_M
MTCONN
J2
1
J_PSU_EN
J4
1
48393-0003
CONN_USB3_A
MOLEX
J12
1
CONN_USB_PWR_OTG
GCT
J13
1
CONN_DOCK
Samtec
J15
1
FH12-22S-0.5SH55
CONN_CAM1
Hirose
J16
1
CONN_CAM0
Hirose
J17
1
10164227-1001A1RLF
ComputeModule5-CM5
Hirose
Module1

CMDB Adv design files

The KiCad project lives in the Distaff/RPi_CM_Drone_Board repository on GitHub; these links point at the commit this page was built from.

CMDB Adv: common questions

What microcontroller does the CMDB Adv use?

The CMDB Adv is built around the 10164227-1001A1RLF, from the Raspberry Pi family.

How big is the CMDB Adv PCB?

The CMDB Adv measures 59.7 × 78 mm, has 6 copper layers and is 1.09336 mm thick.

How many components are on the CMDB Adv?

9 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the CMDB Adv design files?

From the Distaff/RPi_CM_Drone_Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the CMDB Adv design in my own project?

Yes, under the terms of its MIT license, which Distaff chose for the repository.

Can I test firmware for the CMDB Adv without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
