EuroBusboard PCB layout, top view — open source board by DIYSynthMNL

About the EuroBusboard PCB

EuroBusboard is an open source PCB design by DIYSynthMNL, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 146 × 70 mm, with 69 components from 31 distinct parts.

By type, the board carries 42 connectors, 12 diodes, 6 capacitors, 6 resistors and 3 test points.

It belongs with the audio designs in this gallery.

From the project

A Eurorack Bus Board that has 8 outputs

A Eurorack bus board with 8 module slots, distributing ±12V + GND across multiple connector formats. The project has three PCB variants in the same KiCad project: 10-pin IDC + JST combined, 10-pin IDC only, and JST only.

The KiCad project contains four configurations. Pick one when fabricating the PCB:

All variants share the same power-input + reverse-protection + filter section. Only the per-slot connectors differ.

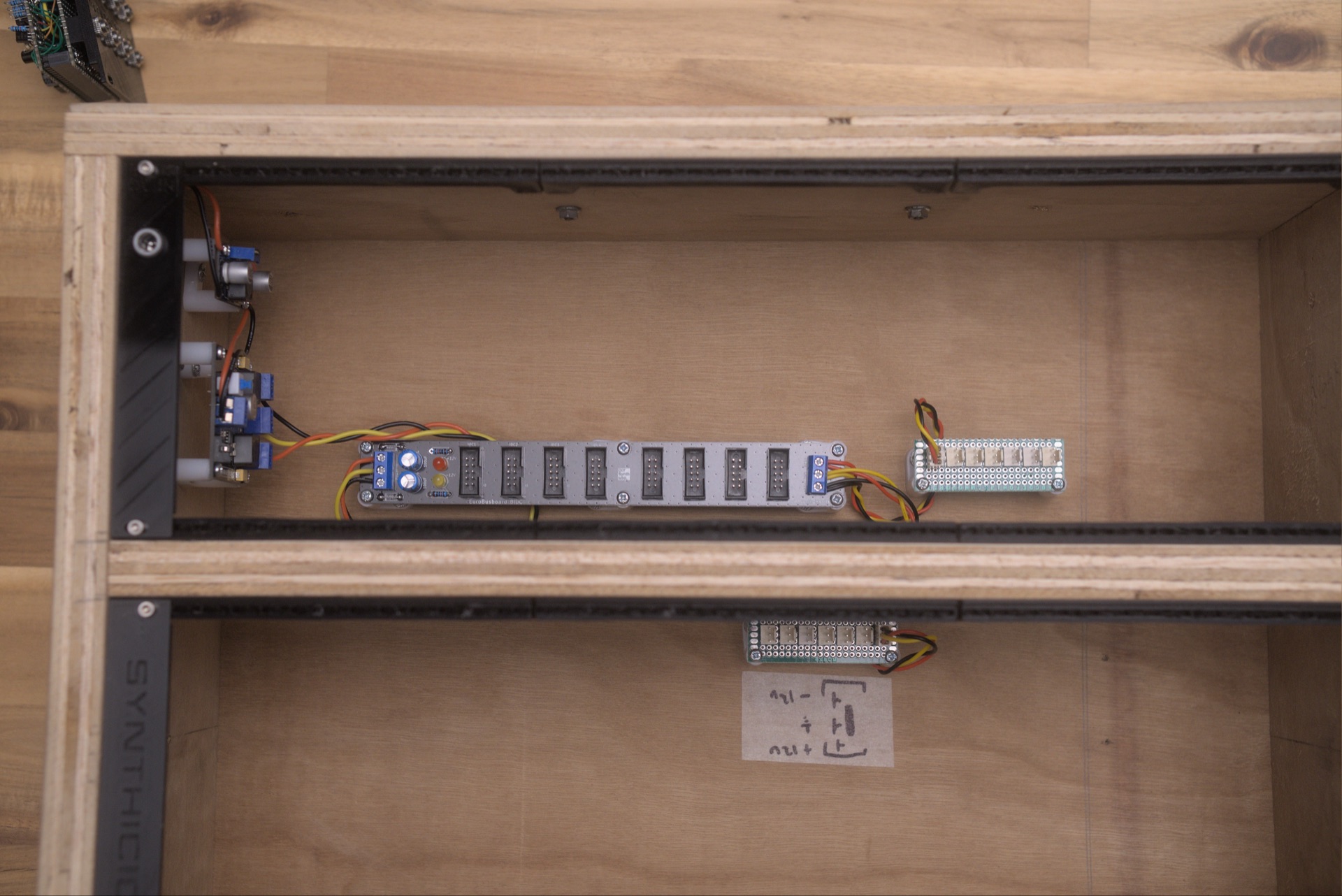

EuroBusboard, from the project README
From the project README

EuroBusboard bill of materials (BOM)

69 components, 31 distinct parts.

QtyPartRefs
3
Power In
J1, J41, J43
2
IDC1
J2, J23
2
JST1
J3, J33
2
IDC2
J4, J24
2
JST2
J5, J34
2
IDC3
J6, J25
2
JST3
J7, J35
2
IDC4
J8, J26
2
JST4
J9, J36
2
IDC5
J10, J27
2
JST5
J11, J37
2
IDC6
J12, J28
2
JST6
J13, J38
2
IDC7
J14, J29
2
JST7
J15, J39
2
IDC8
J16, J30
2
JST8
J17, J40
1
Power thru
J18
1
Power In
J19
1
Power thru
J20
Show 11 more
QtyPartRefs
1
Power Thru
J21
1
Power In
J22
2
Power out
J42, J44
1
+12V
TP1
1
GND
TP2
1
-12V
TP3
3
+12V
D1, D11, D13
3
-12V
D2, D12, D15
6
4007
D3, D4, D9, D10, D14, D16
6
100uF
C1, C2, C5, C6, C7, C8
6
10K
R1, R2, R5, R6, R7, R8

EuroBusboard design files

The KiCad project lives in the DIYSynthMNL/EuroBusboard repository on GitHub; these links point at the commit this page was built from.

EuroBusboard: common questions

How big is the EuroBusboard PCB?

The EuroBusboard measures 146 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the EuroBusboard?

69 components, from 31 distinct parts. The full bill of materials is listed on this page.

Where can I download the EuroBusboard design files?

From the DIYSynthMNL/EuroBusboard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the EuroBusboard design in my own project?

Yes, under the terms of its GPL-3.0 license, which DIYSynthMNL chose for the repository.
