About the Flashlight PCB

Flashlight is an open source ESP32 PCB design by dizcza, published on GitHub. It is a 2-layer board measuring 46 × 122 mm, with 58 components from 24 distinct parts.

Its main chip is the USB_C_Receptacle_USB2.0_16P, from the ESP32 family. Other key parts include the XB4908A, MT3608, TP5000, R6BHC-A05_LED-19-223 and SS12J01_071. By type, the board carries 28 diodes, 11 resistors, 7 capacitors, 5 ICs, 3 inductors and 1 transistor.

From the project

DIY Flahslight PCB Kicad design

Kicad PCB design for my wooden flashlight V1 (see https://github.com/dizcza/lasercut_collection). Originally designed by HackLabKyiv residents.

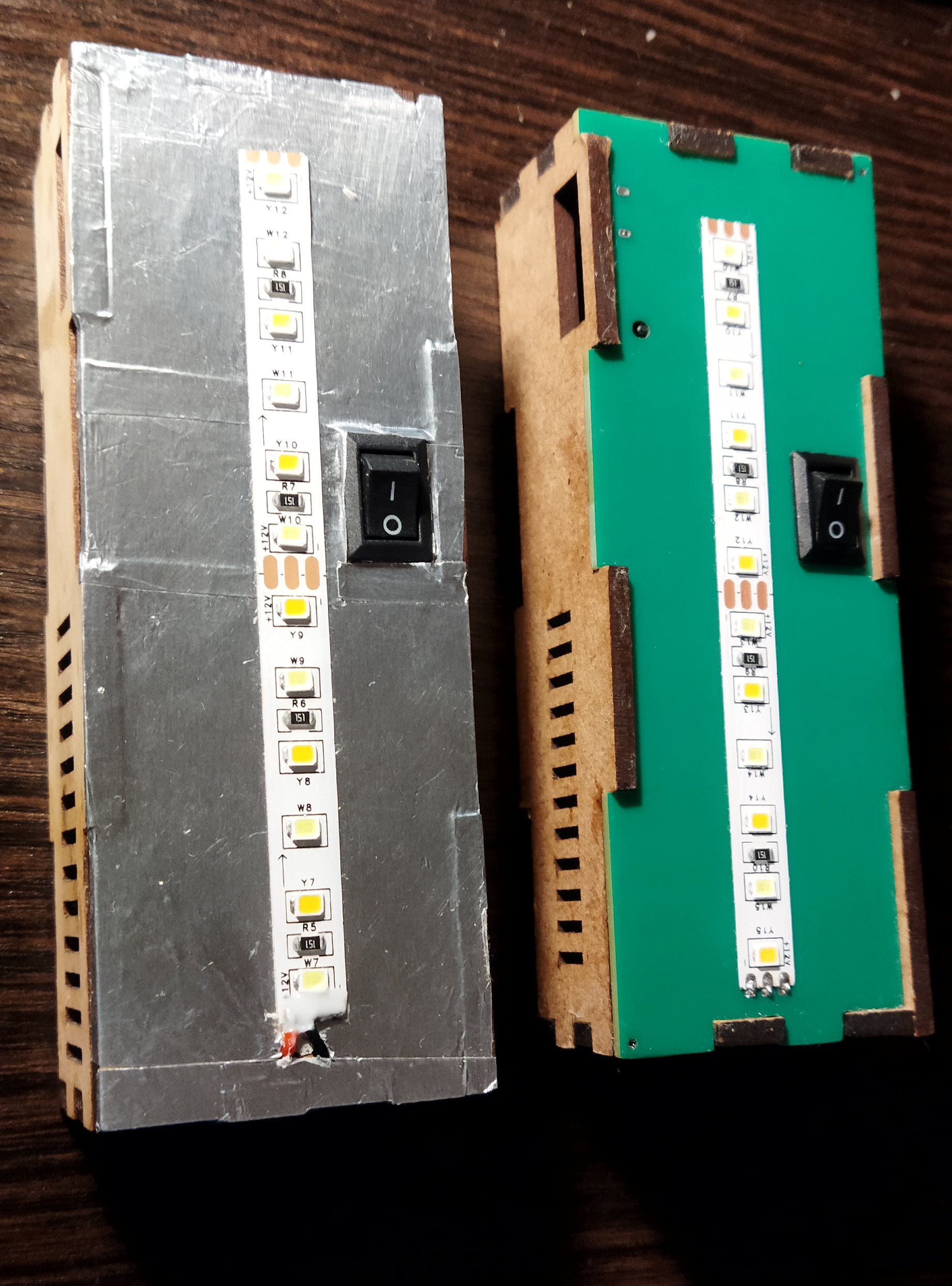

An ordinary 12V LED strip is soldered to the front side of the PCB.

OpenSCAD design file: https://github.com/dizcza/lasercut_collection/blob/master/Lampa.scad

Flashlight, from the project README
From the project README

Main components on the Flashlight

XB4908AMT3608TP5000R6BHC-A05_LED-19-223SS12J01_071

Flashlight bill of materials (BOM)

58 components, 24 distinct parts.

QtyPartRefs
1
XB4908A
U1
1
MT3608
U2
1
TP5000
U3
1
R6BHC-A05_LED-19-223
U4
1
SS12J01_071
U5
1
HSS2333
Q2
1
USB_C_Receptacle_USB2.0_16P
J11
1
Battery_Cell
BT1
1
BSMD1210-150-6V
F2
4
D_Schottky
D1, D2, D4, D5
11
LED
D3, D7, D10, D14, D15, D16, D18, D19 +3
13
LED_Pad
D6, D8, D9, D11, D12, D13, D17, D20 +5
1
FerriteBead
FB1
2
10uH
L1, L2
3
10uF/10V
C1, C5, C6
1
1uF
C2
3
22uF/35V
C3, C4, C7
3
33
R1, R5, R9
2
1k
R2, R3
1
10k
R4
Show 4 more
QtyPartRefs
1
5.23k
R6
1
200k
R7
1
0.05
R8
2
5.1k
R20, R21

Flashlight design files

The KiCad project lives in the dizcza/flashlight_kicad repository on GitHub; these links point at the commit this page was built from.

Flashlight: common questions

What microcontroller does the Flashlight use?

The Flashlight is built around the USB_C_Receptacle_USB2.0_16P, from the ESP32 family.

How big is the Flashlight PCB?

The Flashlight measures 46 × 122 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Flashlight?

58 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the Flashlight design files?

From the dizcza/flashlight_kicad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Flashlight design in my own project?

The repository has no license, so all rights stay with dizcza. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Flashlight without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
