Chrkpl
About the Chrkpl PCB
Chrkpl is an open source PCB design by dl9lj, published on GitHub under the MIT license. It is a 2-layer board measuring 60 × 60 mm, with 17 components from 10 distinct parts.
Other key parts include the TPIC6595 and L7805. By type, the board carries 6 connectors, 6 capacitors, 3 ICs and 2 resistors.
It belongs with the rf & radio and iot & wireless designs in this gallery.
From the project
wireless remote control for different antenna tuners

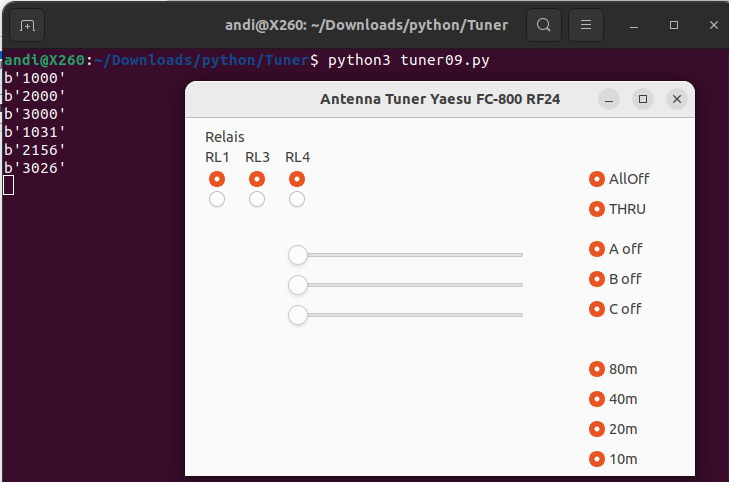

Yaesu FC-1000 / FC-800 started with buying a Yaesu Automatic Antenna Tuner FC-1000 w/o control unit. I started with removing the existing controller and thought about to do a replacement with an atmega328p in combination with 3 HC595 shift register. Interface to a laptop pc via uart. I had this setup running (328p firmware in C). But after working with NRF24L01 modules I decided to do the interface wireless. 328p is no longer required but the 595 board can be used.The 3 HC595 are connected via wires and DSUB9 connector to an externel arduino with NRF24L01 module. I wrote a python script with…
Main components on the Chrkpl
Chrkpl bill of materials (BOM)
17 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TPIC6595 | DIP-20_W7.62mm_Socket | U1, U2 |
| 1 | L7805 | TO-220-3_Vertical | U3 |
| 1 | 5pin | PinHeader_1x05_P2.54mm_Vertical | J1 |
| 2 | 2pin | PinHeader_1x02_P2.54mm_Vertical | J2, J3 |
| 1 | 26pin | PinHeader_2x13_P2.54mm_Vertical | J4 |
| 2 | 2pin | TE_826576-2_1x02_P3.96mm_Vertical | J5, J6 |
| 1 | 100u | CP_Radial_D8.0mm_P3.80mm | C1 |
| 4 | 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C2, C4, C5, C6 |
| 1 | 10u | CP_Radial_D6.3mm_P2.50mm | C3 |
| 2 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2 |
Chrkpl design files
The KiCad project lives in the dl9lj/tuner repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/Chrkpl.kicad_pcb
- Schematickicad/Chrkpl.kicad_sch
Chrkpl: common questions
How big is the Chrkpl PCB?
The Chrkpl measures 60 × 60 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Chrkpl?
17 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the Chrkpl design files?
From the dl9lj/tuner repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Chrkpl design in my own project?
Yes, under the terms of its MIT license, which dl9lj chose for the repository.
