About the Upico PCB

Upico is an open source RP2040/RP2350 PCB design by dotcypress, published on GitHub under the Apache-2.0 license. It is a 6-layer board measuring 36 × 77 mm, with 59 components from 25 distinct parts.

Its main chip is the C2040, from the RP2040/RP2350 family. Other key parts include the C2843335, C15999, AP22652_3x and C2158038. By type, the board carries 23 capacitors, 23 resistors, 7 ICs, 4 connectors, 1 crystal and 1 diode.

From the project

uConsole RP2040 Expansion Card

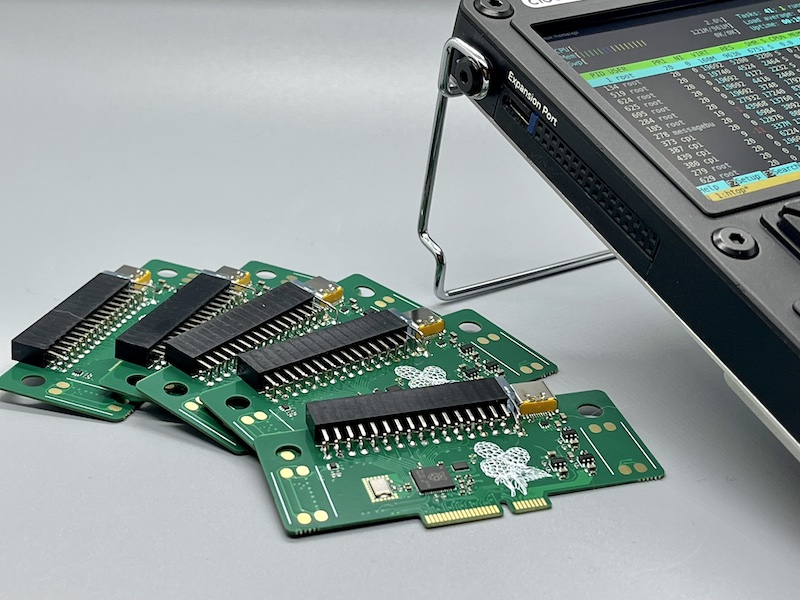

uPico is a RP2040 powered expansion card designed to enhance the capabilities of Clockwork's uConsole.

⚠️ Only R-01 and CM4 core are supported by control application. Work in progress for A04/A06 core modules.

Second project name is atto, cause 10−6 * 10-12 = 10-18 🤓

Internal Speakers Support Type-C (USB 2.0) port with programmable power switch and overcurrent protection 3.3V and 5V external power out with programmable switch and overcurrent protection RP2040 with extenal double-double PMOD compatible connector * RP2040 controllable LED

Upico, from the project README — From the project README

Main components on the Upico

C2843335 C2040 C15999 AP22652_3x C2158038

Upico bill of materials (BOM)

59 components, 25 distinct parts.

Qty	Part	Footprint	Refs
1	C2843335 W25Q32JVUX	USON-8_2x3mm_P0.5mm	U1
1	C2040 RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U2
2	C15999 USBLC6-2P6	SOT-666	U3, U4
1	AP22652_3x	SOT-23-6	U5
2	C2158038 AP22652_3x	SOT-23-6	U6, U7
1	C3035208 12MHz	Crystal_SMD_5032-2Pin_5.0x3.2mm	Y1
1	uConsoleEXT	ext	J1
1	C2897436 uPico Connect	PinSocket_2x16_P2.54mm_Horizontal	J2
1	C165948 USB_C_Receptacle_USB2.0	USB_C_Receptacle_HRO_TYPE-C-31-M-12	J3
1	Camera	Hirose_FH12-22S-0.5SH_1x22-1MP_P0.50mm_Horizontal	J4
1	LED	LED_SideEmitter_Rectangular_W4.5mm_H1.6mm	D1
2	C107002 27pF	C_0402_1005Metric	C1, C2
12	C1525 100nF	C_0402_1005Metric	C3, C4, C7, C8, C9, C10, C11, C12 +4
2	C23733 4.7uF	C_0402_1005Metric	C5, C6
7	C96446 10uF	C_0603_1608Metric	C14, C15, C16, C17, C21, C22, C23
2	C11702 1K	R_0402_1005Metric	R1, R3
7	DNP	R_0402_1005Metric	R2, R6, R7, R8, R9, R12, R13
2	C226392 27R	R_0402_1005Metric	R4, R5
2	C25879 2.2K	R_0402_1005Metric	R10, R11
1	C25123 510R	R_0402_1005Metric	R14

Show 5 more

Qty	Part	Footprint	Refs
2	C114756 56K	R_0402_1005Metric	R15, R16
1	10K	R_0402_1005Metric	R17
3	C25744 10K	R_0402_1005Metric	R18, R19, R20
2	C25741 100K	R_0402_1005Metric	R21, R22
1	C114756 47K	R_0402_1005Metric	R23

Upico design files

The KiCad project lives in the dotcypress/upico repository on GitHub; these links point at the commit this page was built from.

Layoutpcb/upico.kicad_pcb
Schematicpcb/upico.kicad_sch
