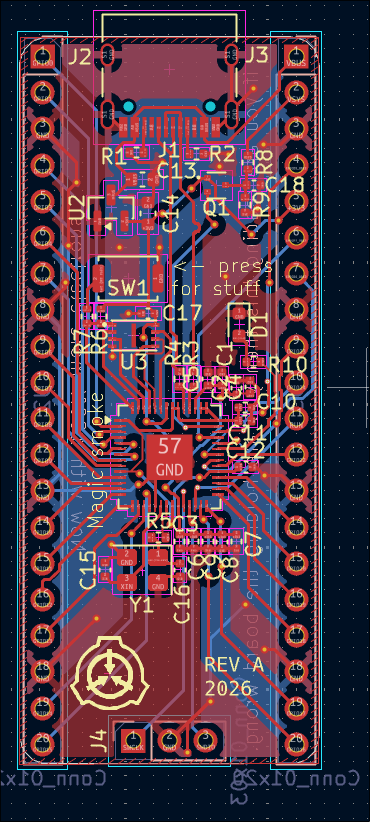

About the Custom-Devboard PCB

Custom-Devboard is an open source RP2040/RP2350 PCB design by dragonruler1000, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 21 × 51 mm, with 39 components from 22 distinct parts.

Its main chip is the C2040, from the RP2040/RP2350 family. Other key parts include the C144202 and W25Q16JVUXIQ. By type, the board carries 18 capacitors, 10 resistors, 4 connectors, 3 ICs, 1 transistor and 1 crystal.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

BOM: | Item Count | item name | Unit price $ | Total Price | Price with discounts | Link | Running total $ | Running total with coupons | part number | Notes | |------------|--------------------|--------------|--------------|-----------------------|--------------------------------------------------------------------------|------------------|--------------------------------|-------------|-------| | 2 | rp2040 | 0.98 | 1.96 | 1.96 | https://jlcpcb.com/partdetail/RaspberryPi-RP2040/C2040 | 2.08 | 2.08 | 1 | | | 2 | USB-C port | 0.18 | 0.36 | 0.36 |…

Main components on the Custom-Devboard

C2040 C144202 W25Q16JVUXIQ

Custom-Devboard bill of materials (BOM)

39 components, 22 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	C2040 RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U1
1	C144202 MCP1700x-120xxMB	SOT-23	U2
1	W25Q16JVUXIQ W25Q128JVS Winbond(华邦)	USON-8_L3.0-W2.0-P0.50-BL-EP	U3
1	C2830301 DMG1012T	SOT-523	Q1
1	C9002 12MHz	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
1	C165948 USB_C_Receptacle_USB2.0_14P	USB_C_Receptacle_HRO_TYPE-C-31-M-12	J1
2	Conn_01x20	PinHeader_1x20_P2.54mm_Vertical	J2, J3
1	Conn_01x03	PinHeader_1x03_P2.54mm_Vertical	J4
1	C720477 SW_Push	SW_Push_SPST_NO_Alps_SKRK	SW1
1	C52675989 Green	LED_0603_1608Metric	D1
2	C52923 1uF	C_0402_1005Metric	C1, C10
11	C1525 0.1uF	C_0402_1005Metric	C2, C3, C4, C5, C6, C7, C8, C9 +3
2	C19702 10uF	C_0603_1608Metric	C13, C14
2	C1562 33pF	C_0402_1005Metric	C15, C16
1	C1523 1nf	C_0402_1005Metric	C18
2	C25905 5.1K	R_0402_1005Metric	R1, R2
2	C5141043 27	R_0402_1005Metric	R3, R4
2	C11702 1K	R_0402_1005Metric	R5, R7
1	C25744 10K	R_0402_1005Metric	R6
1	C25764 200K	R_0402_1005Metric	R8

Show 2 more

Qty	Part	Footprint	Refs
1	C25741 100K	R_0402_1005Metric	R9
1	C25117 470R	R_0402_1005Metric	R10

Custom-Devboard design files

The KiCad project lives in the dragonruler1000/Custom-Devboard repository on GitHub; these links point at the commit this page was built from.

Custom-Devboard: common questions

What microcontroller does the Custom-Devboard use?

The Custom-Devboard is built around the C2040, from the RP2040/RP2350 family.

How big is the Custom-Devboard PCB?

The Custom-Devboard measures 21 × 51 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Custom-Devboard?

39 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Custom-Devboard design files?

From the dragonruler1000/Custom-Devboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Custom-Devboard design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which dragonruler1000 chose for the repository.

Can I test firmware for the Custom-Devboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
