Projekt Mechatronik DC-AC

DriveLink-HM·DriveLink·Mainboard/Projekt_Mechatronik_DC-AC.kicad_pcb

Projekt Mechatronik DC-AC PCB layout, top view — open source STM32 board by DriveLink-HM
Simulate this board

About the Projekt Mechatronik DC-AC PCB

Projekt Mechatronik DC-AC is an open source STM32 PCB design by DriveLink-HM, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 200 × 100 mm, with 177 components from 64 distinct parts.

Its main chip is the STM32G474RETx, from the STM32 family. Other key parts include the MP9488GS-P, MCP6N11-001E/SN, TLV9041IDBVRG4, IM06B50GC1 and AP63200WU. By type, the board carries 66 capacitors, 46 resistors, 19 diodes, 14 test points, 11 connectors and 9 ICs.

It belongs with the displays & leds designs in this gallery.

From the project

A Variable Frequency Drive, designed and built for Projekt Mechatronik in SoSe26

An open-hardware variable frequency drive (VFD) for three-phase induction motors, developed for the course Projekt Mechatronik at Munich University of Applied Sciences (HM).

DriveLink rectifies single-phase 230 V AC mains into a ≈325 V DC link and drives the motor through an Infineon IM06B50GC1 CIPOS Mini intelligent power module (600 V / 50 A). The power stage is controlled by an STM32G474 whose firmware is generated from a PLECS model, while a detachable ESP32-S3 HMI provides an OLED display, rotary-encoder control, and a WiFi web dashboard. This repository contains everything needed to…

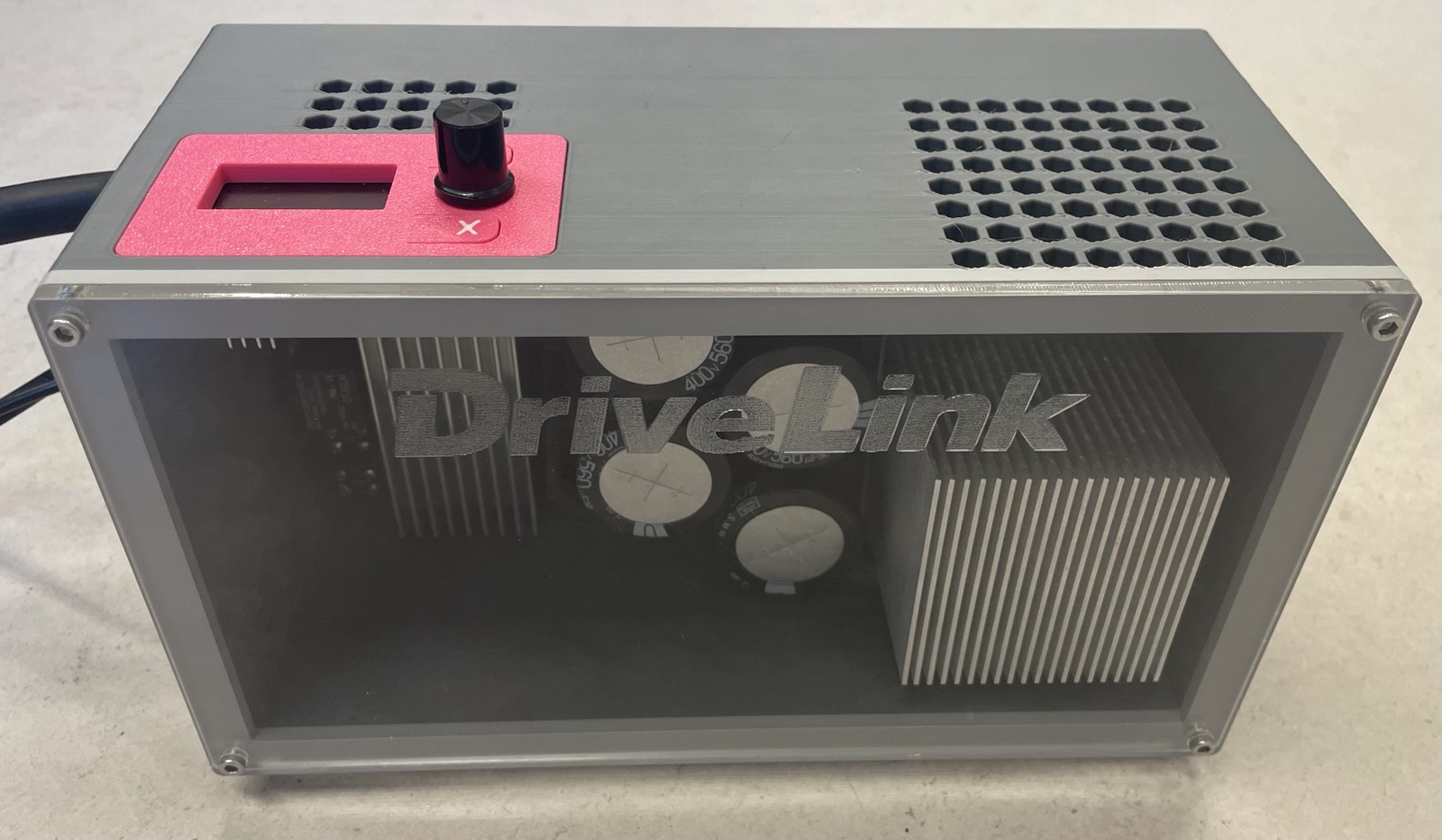

Projekt Mechatronik DC-AC, from the project README
From the project README

Main components on the Projekt Mechatronik DC-AC

MP9488GS-PMCP6N11-001E/SNTLV9041IDBVRG4IM06B50GC1AP63200WUSTM32G474RETx

Projekt Mechatronik DC-AC bill of materials (BOM)

177 components, 64 distinct parts.

QtyPartRefs
2
MP9488GS-P
IC1, IC5
3
MCP6N11-001E/SN
MCP6N11-001E_SN
IC2, IC3, IC4
1
TLV9041IDBVRG4
IC6
1
IM06B50GC1
U1
1
AP63200WU
U2
1
STM32G474RETx
U4
2
GSF0301
Q1, Q2
1
NX2016SA24S08891
Y2
1
Conn_01x02_MountingPin
J1
1
Conn_01x05_Pin
J2
1
Conn_ST_STDC14
J3
7
AMT0440007DB0000G
J5, J6, J8, J9, J10, J11, J12
1
Conn_01x06_Pin
J7
1
GBU5010-BP
BR1
1
100n
C_bypass_STM2
1
J107F1CS2012VDC.45
K1
1
SL325R020
RT1
13
TestPoint_2Pole
TP4, TP5, TP6, TP7, TP9, TP10, TP11, TP12 +5
1
TestPoint_2Pole
TP19
4
20V
D1, D2, D3, D4
Show 44 more
QtyPartRefs
2
1N4148
D5, D10
2
AR1FJ-M3/H
AR1FJ-M3_H
D6, D12
2
STTH1R06AF
D7, D11
2
LED
D8, D9
3
1N6857UR
D13, D14, D15
2
1N914WT
D16, D19
2
RB588VYM100FHTR
D17, D18
2
1.2mH
L1, L2
1
6.8u
L6
2
BLM21AG601SN1D
L9, L10
10
100nF
C1, C9, C11, C19, C29, C64, C65, C66 +2
14
1nF
C2, C3, C4, C5, C6, C12, C13, C14 +6
7
22µF
C7, C8, C10, C32, C33, C34, C35
2
1u
C15, C47
7
100n
C16, C42, C43, C44, C45, C46, C48
2
10µF
C18, C28
1
22nF
C22
3
1µF
C23, C49, C63
2
C3216X7T2W104K160AE
100nF, @450V
C24, C25
1
100pF
C30
1
4u7
C31
2
10µF, @450V
C36, C58
2
2.2µF
C37, C60
2
470pF
C38, C59
2
220nF
C39, C61
2
6,8p
C40, C41
2
100µF, @35V
C50, C62
4
1mF
C54, C55, C56, C57
7
1k
R1, R2, R3, R4, R28, R32, R37
6
10k
R5, R18, R25, R26, R36, R38
11
100
R6, R7, R8, R9, R10, R11, R20, R21 +3
1
68
R12
3
GMR100HJBFHR020
R13, R14, R15
2
23.7k
R16, R39
2
4.99k
R17, R43
2
3k
R19, R44
1
18,2k
R23
1
6,2k
R24
3
9.09k
R27, R31, R35
1
0
R29
2
2k
R40, R41
1
100
R42
2
100k
R46, R49
1
80; 0,2W
R47

Projekt Mechatronik DC-AC design files

The KiCad project lives in the DriveLink-HM/DriveLink repository on GitHub; these links point at the commit this page was built from.

Projekt Mechatronik DC-AC: common questions

What microcontroller does the Projekt Mechatronik DC-AC use?

The Projekt Mechatronik DC-AC is built around the STM32G474RETx, from the STM32 family.

How big is the Projekt Mechatronik DC-AC PCB?

The Projekt Mechatronik DC-AC measures 200 × 100 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Projekt Mechatronik DC-AC?

177 components, from 64 distinct parts. The full bill of materials is listed on this page.

Where can I download the Projekt Mechatronik DC-AC design files?

From the DriveLink-HM/DriveLink repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Projekt Mechatronik DC-AC design in my own project?

Yes, under the terms of its GPL-3.0 license, which DriveLink-HM chose for the repository.

Can I test firmware for the Projekt Mechatronik DC-AC without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
