Laboratory-Instrumentation-Amplifier with-16bit-1MSPS-ADC

drmcnelson·Laboratory-Instrumentation-Amplifier-with-16bit-1MSPS-ADC·INA_KiCAD_Files_Rev0/Instrumentation_Input.kicad_pcb

Laboratory-Instrumentation-Amplifier with-16bit-1MSPS-ADC PCB layout, top view — open source board by drmcnelson
Simulate this board

About the Laboratory-Instrumentation-Amplifier with-16bit-1MSPS-ADC PCB

Laboratory-Instrumentation-Amplifier with-16bit-1MSPS-ADC is an open source PCB design by drmcnelson, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 60 × 40 mm, with 74 components from 33 distinct parts.

Other key parts include the MCP33131D-10-I/MS, LT1994IMS8-TRPBF, ADA4510-2ARZ, REF3440QDBVRQ1 and TPS72218DBV (R/T). By type, the board carries 34 capacitors, 23 resistors, 5 ICs, 3 connectors, 2 transistors and 2 jumpers.

It belongs with the test & measurement and audio designs in this gallery.

From the project

Laboratory Instrumentation Amplifier with bipolar inputs, 16bit 1MSPS ADC, SPI for Teensy, Arduino

Instrumentation amplifiers ("INAs") are important for making sensitive precise stable voltage measurements with very high input impedance and strong noise rejection. If you do research in the physical sciences or engineering or study electrical phenomena in biological systems, then you have probably used an INA. They are a cornerstone of traditional instruments such as electrometers, and EKG machines, and laboratory studies in chemical physics, semiconductors, advanced materials, organo- and bio- electronics.

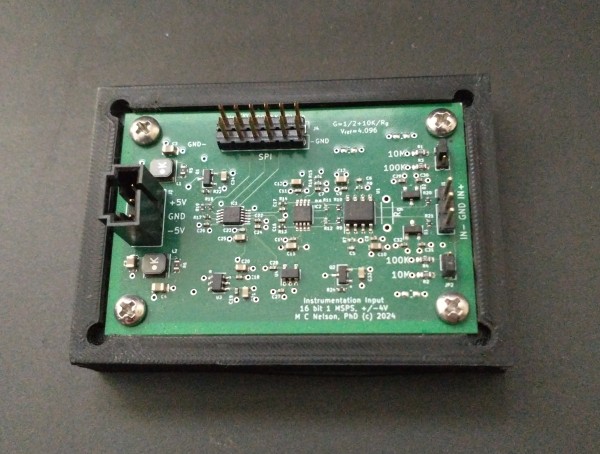

Laboratory-Instrumentation-Amplifier with-16bit-1MSPS-ADC, from the project README
From the project README

Main components on the Laboratory-Instrumentation-Amplifier with-16bit-1MSPS-ADC

MCP33131D-10-I/MSLT1994IMS8-TRPBFADA4510-2ARZREF3440QDBVRQ1TPS72218DBV (R/T)

Laboratory-Instrumentation-Amplifier with-16bit-1MSPS-ADC bill of materials (BOM)

74 components, 33 distinct parts.

QtyPartRefs
1
MCP33131D-10-I/MS
MCP33131D-10-I_MS
IC1
1
LT1994IMS8-TRPBF
IC2
1
ADA4510-2ARZ
ADA4510-02
U1
1
REF3440QDBVRQ1
U3
1
TPS72218DBV (R/T)
TPS72218
U4
1
MMBT4401
Q1
1
MMBT4403
Q2
1
Conn_01x03_Male
J1
1
0705430002
70543-0002
J2
1
929665-02-06-I
Conn_02x06_Odd_Even
J4
2
GRPB031VWVN-RC
Conn_01x03_Male
JP1, JP2
1
R
Rg1
2
MMBD1503A
D1, D2
2
587-2886-1-ND
10uH
L1, L2
4
22uF
C1, C2, C3, C4
2
10p
C5, C6
1
0.22uF
C7
12
0.1uF
C8, C9, C11, C14, C18, C19, C22, C26 +4
9
10uF
C10, C12, C13, C15, C20, C21, C25, C33 +1
2
3.3nF
C16, C17
Show 13 more
QtyPartRefs
1
100pF
C23
3
1uF
C24, C27, C28
2
10M
R1, R2
2
100k
R3, R4
2
100
R5, R6
2
10.0k
R7, R8
2
2.00k
R9, R10
4
1.00k
R11, R12, R15, R16
3
49.9
R13, R14, R18
1
10k
R17
1
30K
R19
2
200
R20, R21
2
1k
R22, R24

Laboratory-Instrumentation-Amplifier with-16bit-1MSPS-ADC design files

The KiCad project lives in the drmcnelson/Laboratory-Instrumentation-Amplifier-with-16bit-1MSPS-ADC repository on GitHub; these links point at the commit this page was built from.

Laboratory-Instrumentation-Amplifier with-16bit-1MSPS-ADC: common questions

How big is the Laboratory-Instrumentation-Amplifier with-16bit-1MSPS-ADC PCB?

The Laboratory-Instrumentation-Amplifier with-16bit-1MSPS-ADC measures 60 × 40 mm, has 4 copper layers and is 4.69 mm thick.

How many components are on the Laboratory-Instrumentation-Amplifier with-16bit-1MSPS-ADC?

74 components, from 33 distinct parts. The full bill of materials is listed on this page.

Where can I download the Laboratory-Instrumentation-Amplifier with-16bit-1MSPS-ADC design files?

From the drmcnelson/Laboratory-Instrumentation-Amplifier-with-16bit-1MSPS-ADC repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Laboratory-Instrumentation-Amplifier with-16bit-1MSPS-ADC design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
