FPGABoard

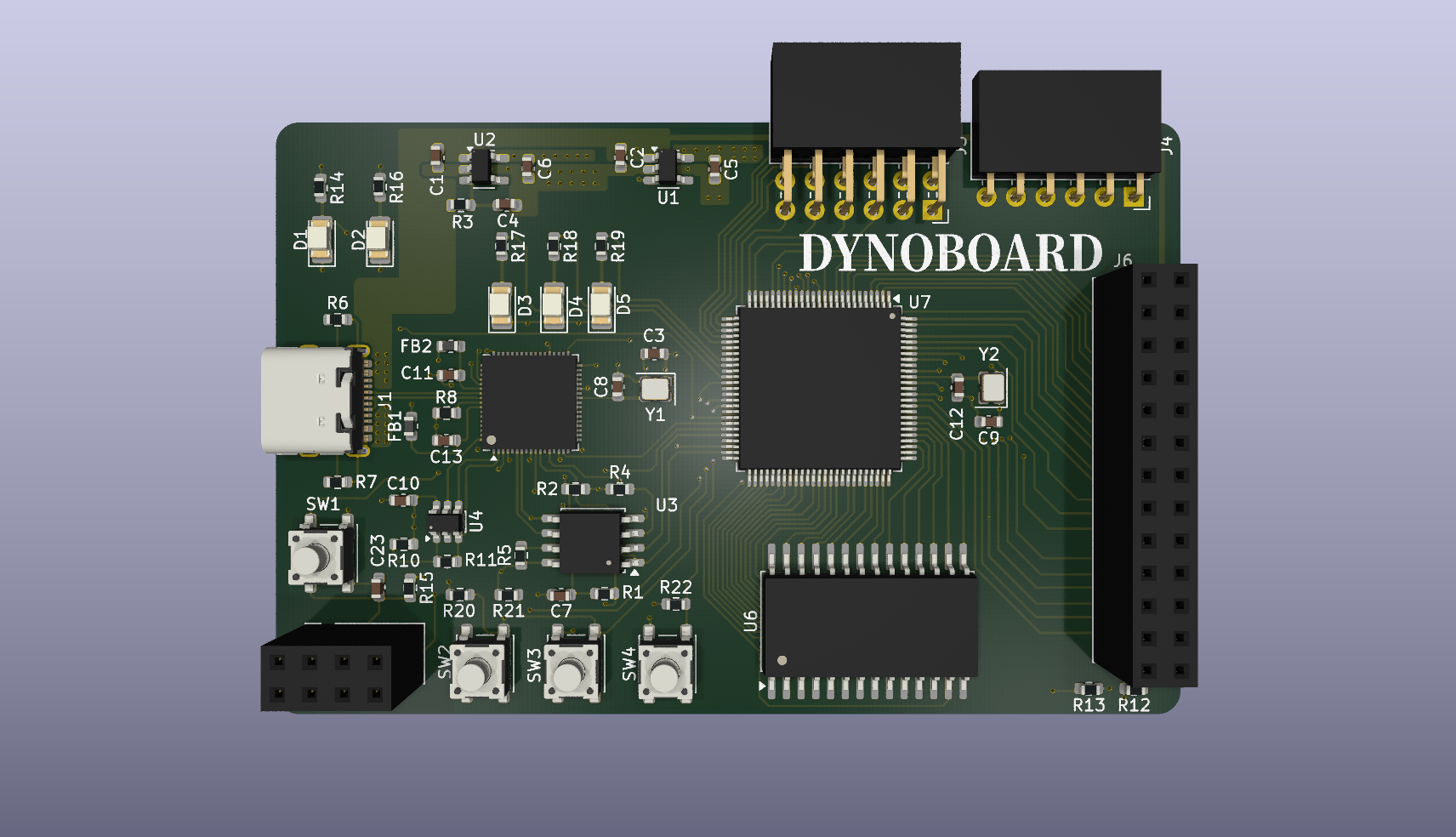

About the FPGABoard PCB
FPGABoard is an open source FPGA PCB design by Dynix7, published on GitHub under the Apache-2.0 license. It is a 4-layer board measuring 78 × 51 mm, with 80 components from 33 distinct parts.
Its main chip is the ICE40HX1K-VQ100, from the FPGA family. Other key parts include the AP2127K-1.2, AP2127K-3.3, W25Q32JVSS, 93LCxxBxxOT and FT2232HPQ. By type, the board carries 33 capacitors, 22 resistors, 7 ICs, 5 connectors, 5 diodes and 4 switches.
Main components on the FPGABoard
FPGABoard bill of materials (BOM)
80 components, 33 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP2127K-1.2 | SOT-23-5_HandSoldering | U1 |
| 1 | AP2127K-3.3 | SOT-23-5_HandSoldering | U2 |
| 1 | W25Q32JVSS | SOIC-8_5.3x5.3mm_P1.27mm | U3 |
| 1 | 93LCxxBxxOT | SOT-23-6 | U4 |
| 1 | FT2232HPQ | VQFN-68-1EP_8x8mm_P0.4mm_EP4.3x4.3mm | U5 |
| 1 | IS62LV256AL | SOP-28_8.4x18.16mm_P1.27mm | U6 |
| 1 | ICE40HX1K-VQ100 | TQFP-100_14x14mm_P0.5mm | U7 |
| 2 | SG-210STF | Oscillator_SMD_SeikoEpson_SG210-4Pin_2.5x2.0mm | Y1, Y2 |
| 1 | USB_C_Receptacle_USB2.0_14P | USB_C_Receptacle_G-Switch_GT-USB-7010ASV | J1 |
| 1 | Program | PinSocket_2x04_P2.54mm_Vertical | J2 |
| 1 | 12PMOD | PinSocket_2x06_P2.54mm_Horizontal | J3 |
| 1 | 6PMOD | PinSocket_1x06_P2.54mm_Horizontal | J4 |
| 1 | Conn_02x13_Odd_Even | PinSocket_2x13_P2.54mm_Vertical | J6 |
| 1 | ResetICE | SW_SPST_PTS647_Sx50 | SW1 |
| 1 | BTN0 | SW_SPST_PTS647_Sx50 | SW2 |
| 1 | BTN1 | SW_SPST_PTS647_Sx50 | SW3 |
| 1 | BTN2 | SW_SPST_PTS647_Sx50 | SW4 |
| 1 | DONE | LED_1206_3216Metric | D1 |
| 1 | PWRSTATUS | LED_1206_3216Metric | D2 |
| 1 | LED0 | LED_1206_3216Metric | D3 |
Show 13 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LED1 | LED_1206_3216Metric | D4 |
| 1 | LED2 | LED_1206_3216Metric | D5 |
| 2 | 60@100 | L_0603_1608Metric | FB1, FB2 |
| 4 | 4.7u | C_0603_1608Metric | C1, C2, C5, C6 |
| 9 | 100n | C_0603_1608Metric | C3, C7, C8, C9, C10, C11, C12, C13 +1 |
| 1 | 10u | C_0603_1608Metric | C4 |
| 19 | 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C14, C15, C16, C17, C18, C19, C20, C21 +11 |
| 12 | 10k | R_0603_1608Metric | R1, R2, R4, R5, R10, R16, R17, R18 +4 |
| 4 | 5k1 | R_0603_1608Metric | R3, R6, R7, R15 |
| 1 | 12k | R_0603_1608Metric | R8 |
| 1 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R9 |
| 3 | 2k2 | R_0603_1608Metric | R11, R12, R13 |
| 1 | 1k | R_0603_1608Metric | R14 |
FPGABoard design files
The KiCad project lives in the Dynix7/FPGABoard repository on GitHub; these links point at the commit this page was built from.
FPGABoard: common questions
What microcontroller does the FPGABoard use?
The FPGABoard is built around the ICE40HX1K-VQ100, from the FPGA family.
How big is the FPGABoard PCB?
The FPGABoard measures 78 × 51 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the FPGABoard?
80 components, from 33 distinct parts. The full bill of materials is listed on this page.
Where can I download the FPGABoard design files?
From the Dynix7/FPGABoard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the FPGABoard design in my own project?
Yes, under the terms of its Apache-2.0 license, which Dynix7 chose for the repository.
Can I test firmware for the FPGABoard without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
