LED-Panel-ESP12F

easai·LED-Panel-ESP12F·hardware/LED-Panel-ESP12F.kicad_pcb

LED-Panel-ESP12F PCB layout, top view — open source ESP8266 board by easai
Simulate this board

About the LED-Panel-ESP12F PCB

LED-Panel-ESP12F is an open source ESP8266 PCB design by easai, published on GitHub. It is a 2-layer board measuring 102.6 × 35.3 mm, with 21 components from 16 distinct parts.

Its main chip is the ESP-12F, from the ESP8266 family. Other key parts include the AMS1117-3.3. By type, the board carries 6 connectors, 6 resistors, 3 switches, 3 capacitors, 2 ICs and 1 buzzer.

It belongs with the iot & wireless designs in this gallery.

From the project

A compact ESP‑12F–based controller board designed to drive an 8×8 LED panel with an onboard buzzer, stable power regulation, and reliable programming support.

The HTML page is available in this GitHub repository: https://easai.github.io/LED-Panel-ESP12F/

A compact ESP‑12F–based controller board designed to drive an 8×8 LED panel with an onboard buzzer, stable power regulation, and reliable programming support. This project was completed with the generous support of my sponsor, whose fabrication assistance transformed a fragile prototype into a robust, reproducible hardware platform.

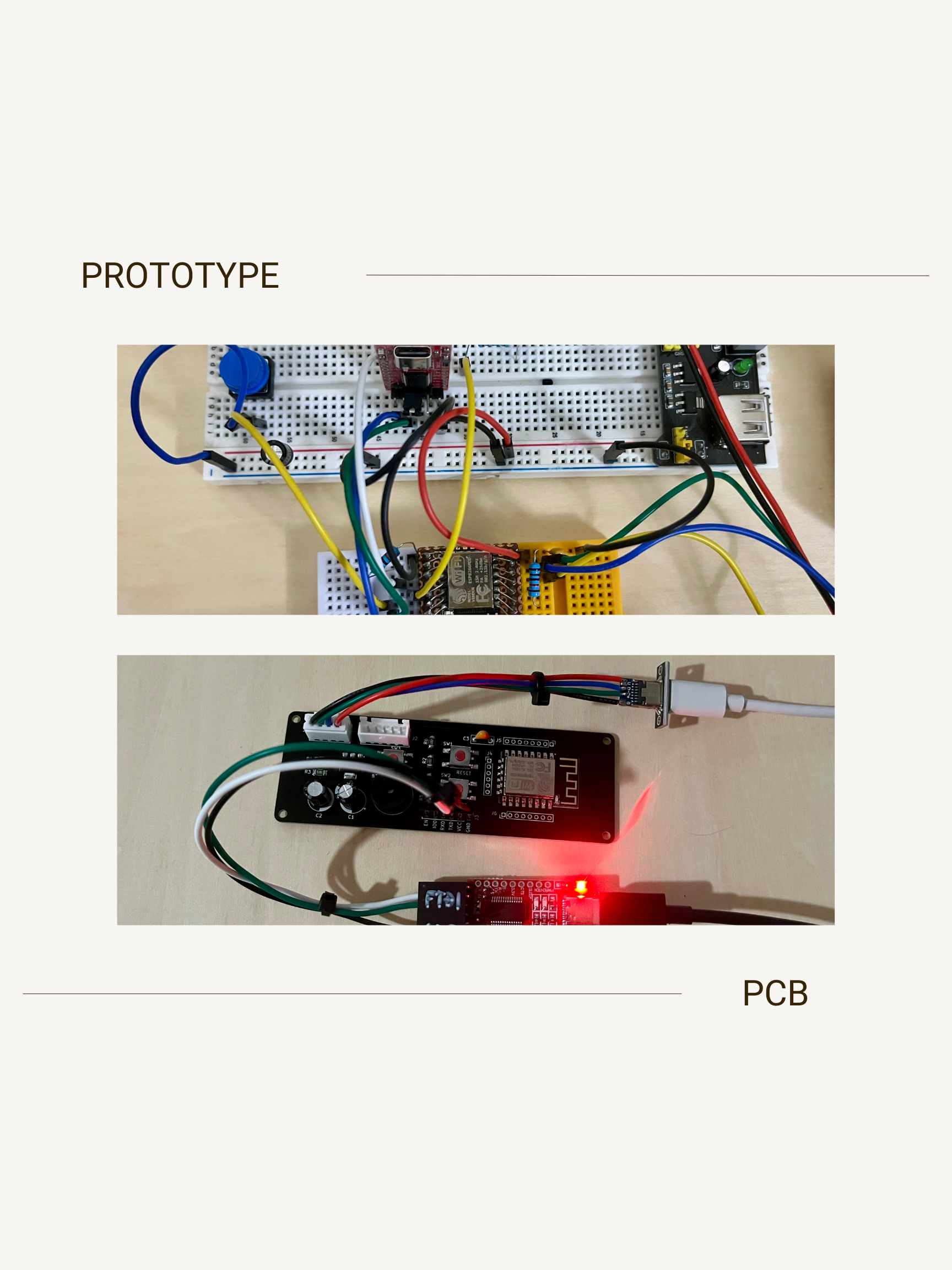

LED-Panel-ESP12F, from the project README
From the project README

Main components on the LED-Panel-ESP12F

ESP-12FAMS1117-3.3

LED-Panel-ESP12F bill of materials (BOM)

21 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP-12F
U1
1
AMS1117-3.3
U2
1
USB-C
J1
1
LED Panel
J2
1
Programming Header
J3
1
CONN_01X06_PIN
Conn_01x06_Pin
J4
2
CONN_01X08_PIN
Conn_01x08_Pin
J5, J6
1
Buzzer
BZ1
1
RESET
SW1
1
BOOT
SW2
1
MUTE
SW3
2
100UF
100uF
C1, C2
1
0.1 uF
C3
3
10k
R1, R2, R6
2
5.1k
R3, R4
1
100
R5

LED-Panel-ESP12F design files

The KiCad project lives in the easai/LED-Panel-ESP12F repository on GitHub; these links point at the commit this page was built from.

LED-Panel-ESP12F: common questions

What microcontroller does the LED-Panel-ESP12F use?

The LED-Panel-ESP12F is built around the ESP-12F, from the ESP8266 family.

How big is the LED-Panel-ESP12F PCB?

The LED-Panel-ESP12F measures 102.6 × 35.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LED-Panel-ESP12F?

21 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the LED-Panel-ESP12F design files?

From the easai/LED-Panel-ESP12F repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the LED-Panel-ESP12F design in my own project?

The repository has no license, so all rights stay with easai. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the LED-Panel-ESP12F without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
