Eidon tracker

Eidon-AI·eidon-tracker·pcb/eidon-tracker-v4/eidon-tracker.kicad_pcb

Eidon tracker PCB layout, top view — open source ESP32 board by Eidon-AI
Simulate this board

About the Eidon tracker PCB

Eidon tracker is an open source ESP32 PCB design by Eidon-AI, published on GitHub. It is a 2-layer board measuring 29.5 × 24.3 mm, with 17 components from 10 distinct parts.

Its main chip is the XIAO-ESP32-C6, from the ESP32 family. Other key parts include the BNO085. By type, the board carries 7 resistors, 5 capacitors, 2 ICs, 1 crystal, 1 battery holder and 1 switch.

It belongs with the iot & wireless, power & battery and sensors designs in this gallery.

From the project

Wearable battery powered IMU to Bluetooth module.

A complete Bluetooth IMU tracking system featuring custom hardware, 3D printed enclosure, and web-based applications. The Eidon Tracker transmits real-time quaternion orientation data over Bluetooth HID, making it perfect for motion capture, gaming, and interactive applications.

- High-precision IMU tracking with BNO085 9-DOF sensor - Bluetooth HID device - appears as standard input device - Real-time quaternion data streaming at 1000Hz - Custom 3D printed enclosure with integrated switches - Web-based applications for visualization and interaction - Battery monitoring with charging status -…

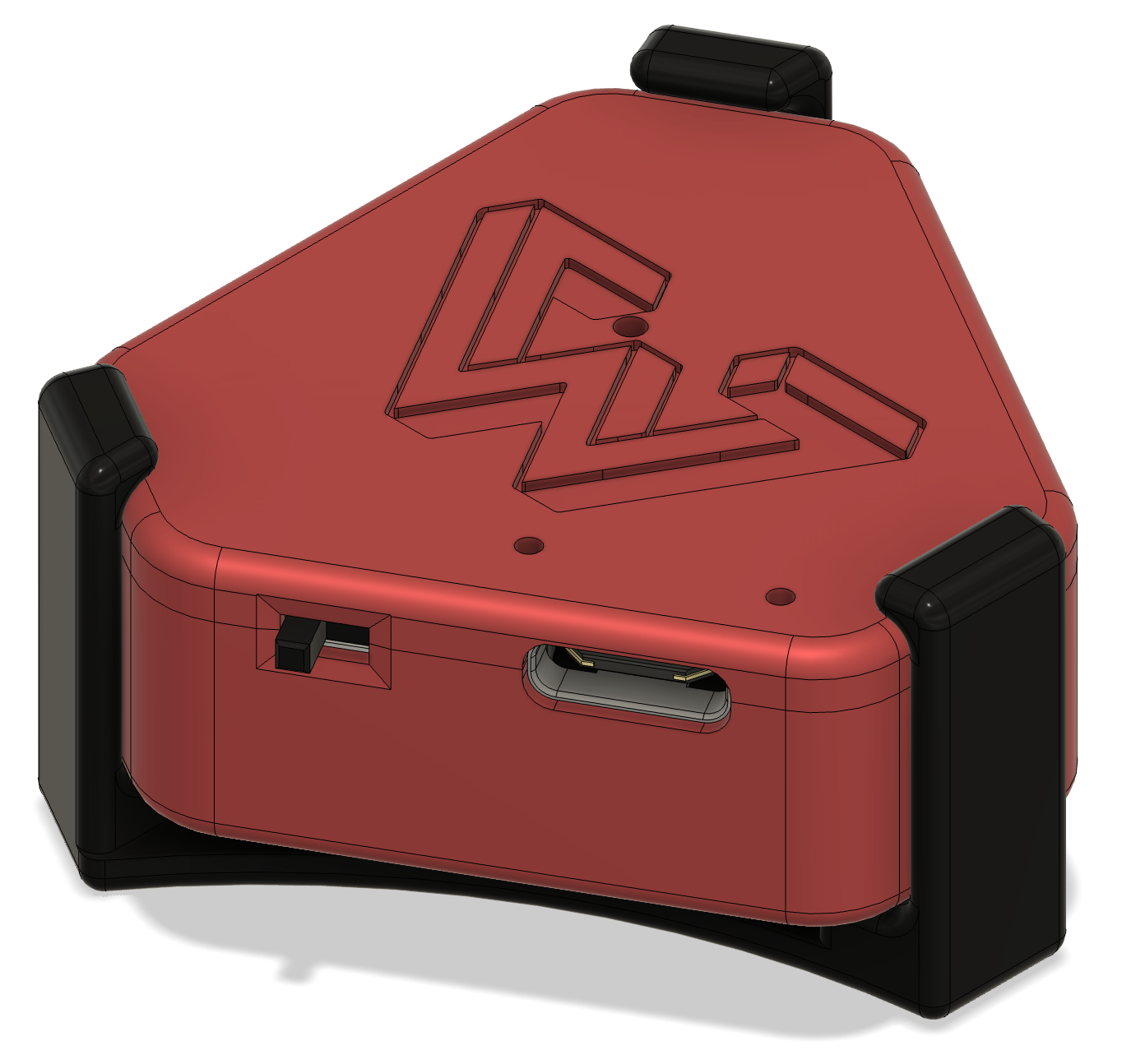

Eidon tracker, from the project README
From the project README

Main components on the Eidon tracker

XIAO-ESP32-C6BNO085

Eidon tracker bill of materials (BOM)

17 components, 10 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
XIAO-ESP32-C6
U1
1
BNO085
CEVA Technologies
U2
1
32.768KHZ
32.768KHz
X1
1
Battery
BT1
1
SW_SPDT
SW1
2
22PF
22pF
C1, C2
3
100NF
100nF
C3, C4, C5
2
220kΩ
R1, R2
2
2.2kΩ
R3, R4
3
10kΩ
R5, R6, R7

Eidon tracker design files

The KiCad project lives in the Eidon-AI/eidon-tracker repository on GitHub; these links point at the commit this page was built from.

Eidon tracker: common questions

What microcontroller does the Eidon tracker use?

The Eidon tracker is built around the XIAO-ESP32-C6, from the ESP32 family.

How big is the Eidon tracker PCB?

The Eidon tracker measures 29.5 × 24.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Eidon tracker?

17 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Eidon tracker design files?

From the Eidon-AI/eidon-tracker repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Eidon tracker design in my own project?

The repository has no license, so all rights stay with Eidon-AI. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Eidon tracker without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
