Nvme Carrier for LattePanda Mu
About the Nvme Carrier for LattePanda Mu PCB
Nvme Carrier for LattePanda Mu is an open source PCB design by El-Luhb, published on GitHub under the MIT license. It is a 4-layer board measuring 170.2 × 170.2 mm, with 339 components from 60 distinct parts.
Other key parts include the TPAZ1023-04F, ULC0524P, SY8253ADC, AMS1117-3.3 and W25Q128JVSIQ. By type, the board carries 168 capacitors, 85 resistors, 23 diodes, 18 connectors, 16 ICs and 10 inductors.
From the project

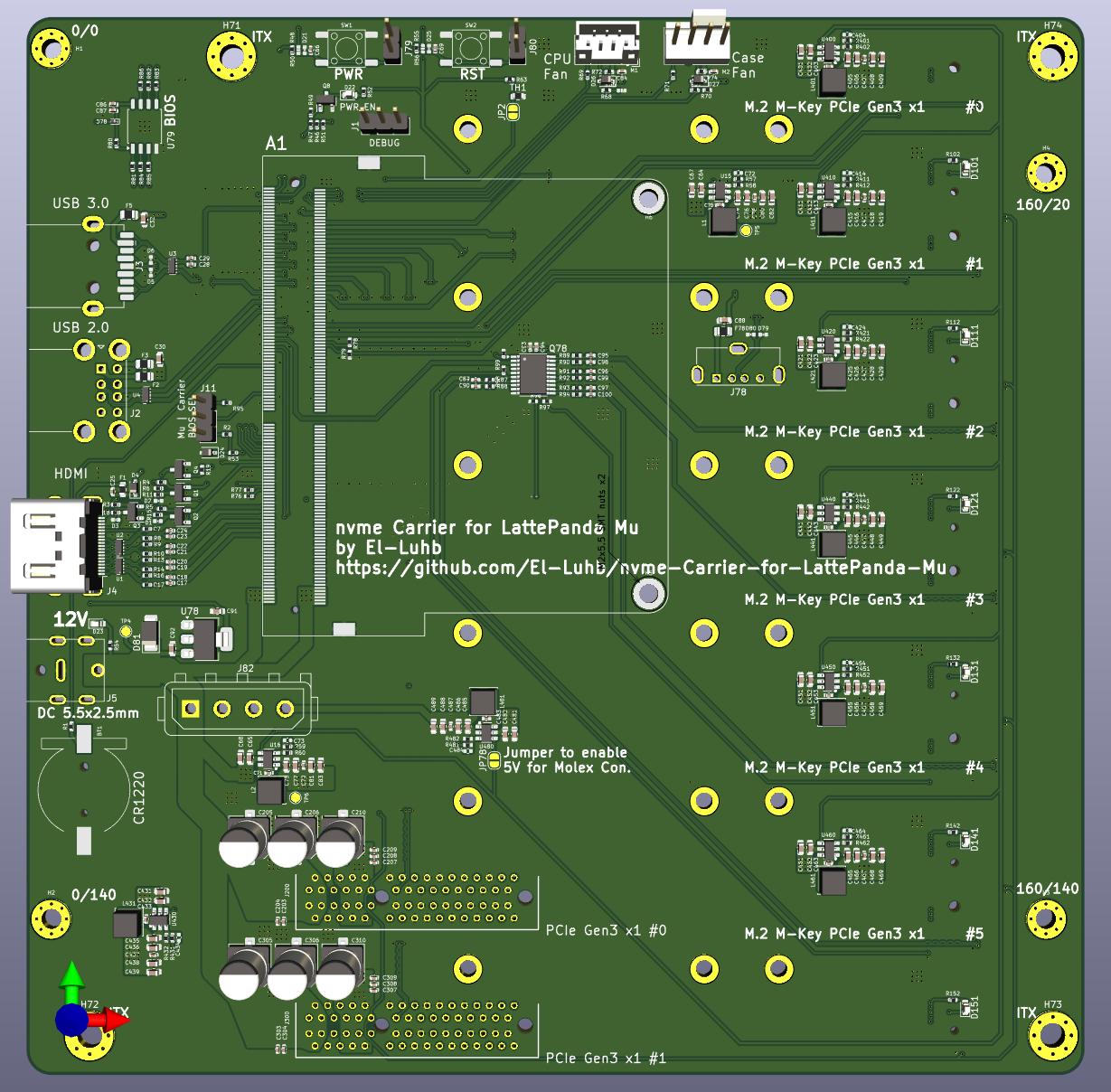

nvme Carrier PCB for the LattePanda Mu compute module
- 2x PCIe 3.0 x4 (x1 electrical) slot - one for user-selected network card - one for SATA controller, for example - 6x M.2 M Key up to 2280 (PCIe 3.0 x1) - RTC battery socket (CR1220 3V) - CPU fan socket - CASE fan socket - 1x USB 2.0 - MOLEX Connector for 5V (2A) and 12V Supply to HDDs
- 1x USB 3.2 10Gbps - 2x USB 2.0 - HDMI 2.0
Main components on the Nvme Carrier for LattePanda Mu
Nvme Carrier for LattePanda Mu bill of materials (BOM)
339 components, 60 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TPAZ1023-04F | Diodes_UDFN-10_1.0x2.5mm_P0.5mm | U1, U2 |
| 2 | ULC0524P | Diodes_UDFN-10_1.0x2.5mm_P0.5mm | U3, U4 |
| 10 | SY8253ADC | TSOT-23-6 | U15, U16, U400, U410, U420, U430, U440, U450 +2 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U78 |
| 1 | W25Q128JVSIQ | SOIC-8_5.23x5.23mm_P1.27mm | U79 |
| 1 | ADDR0069-P009A LattePanda_Mu | LattePanda_Module_H8.0mm_Horizontal | A1 |
| 1 | B4B-PH-K-S-GW Fan_4pin | JST_PH_B4B-PH-K_1x04_P2.00mm_Vertical | M1 |
| 1 | 470531000 Fan_4pin | FanPinHeader_1x04_P2.54mm_Vertical | M2 |
| 2 | NDS7002A 2N7002 | SOT-23 | Q1, Q8 |
| 3 | 2SK3018 | SOT-23 | Q2, Q3, Q4 |
| 1 | 9DBL411BGLFT | TSSOP-20_4.4x6.5mm_P0.65mm | Q78 |
| 2 | PZ2.54-1*3 Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Vertical | J1, J11 |
| 1 | UJ2-ADH-1-TH USB_A_Stacked | USB_A_CUI_UJ2-ADH-TH_Horizontal_Stacked | J2 |
| 1 | 692122030100 USB3_A | USB3_A_Receptacle_Wuerth_692122030100 | J3 |
| 1 | 2086581001 HDMI_A | HDMI_A_Molex_208658-1001_Horizontal | J4 |
| 1 | HX DC007B-2.5-J Barrel_Jack_Switch | DC_Jack_DC007B_30V_10A | J5 |
| 1 | 1050570001 USB_A | USB_A_Molex_105057_Vertical | J78 |
| 2 | PZ2.54-1*2 Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Vertical | J79, J80 |
| 1 | 770997-1 Conn_01x04 | TE_MATE-N-LOK_350211-1_1x04_P5.08mm_Vertical | J82 |
| 6 | 1-2199230-5 Bus_M.2_Socket_M | PCIe_M.2_Connectors_P=0.5mm_H=4.2mm_KeyM | J100, J110, J120, J130, J140, J150 |
Show 40 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | AAA-PCI-161-K03 Bus_PCI_Express_x4 | PCIe_x4_Gen3Slot_Connectors | J200, J300 |
| 1 | CR1220-2 Battery_Cell | Battery_Holder_CR1220_S8411-45R | BT1 |
| 1 | 0603L050/6AR 6V/50mA | R_0603_1608Metric | F1 |
| 3 | BSMD0805-100-6V 6V/1A | Fuse_0805_2012Metric | F2, F3, F78 |
| 1 | BSMD0805L-200 6V/2A | Fuse_0805_2012Metric | F5 |
| 1 | SolderJumper_2_Open | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP78 |
| 2 | DTSM-62K-V-T/R SW_Push | SW_Push_6x6x6 | SW1, SW2 |
| 1 | NCU18XH103F60RB NTC-10K | R_0603_1608Metric | TH1 |
| 9 | ESD5V0B03-1006 ESD5V0B03 | D_0402_1005Metric | D1, D2, D3, D5, D6, D21, D25, D79 +1 |
| 3 | 1N5819WS | D_SOD-323 | D4, D26, D27 |
| 8 | SZYY0603YG LED_G | LED_0603_1608Metric | D22, D23, D101, D111, D121, D131, D141, D151 |
| 1 | SZMM3Z3V3T1G 3V3 Izt=5mA | D_SOD-323 | D24 |
| 1 | RB521C30-2/TR D_Schottky | D_SOD-923 | D78 |
| 1 | PTVS12VP1UP,115 PTVS12VP1UP | D_SOD-128 | D81 |
| 10 | WPN4020H2R2MT 2.2uH/4.3A | L_Sunlord_SWPA4020S | L1, L2, L401, L411, L421, L431, L441, L451 +2 |
| 53 | GRM155R71H104KE14D 100nF/50V | C_0402_1005Metric | C17, C18, C19, C20, C21, C22, C23, C24 +45 |
| 44 | CL10A226MP8NUNE 22uF/10V | C_0603_1608Metric | C30, C32, C74, C75, C76, C77, C80, C81 +36 |
| 21 | CL10A226MO7JZNC 22uF/16V | C_0603_1608Metric | C64, C65, C67, C68, C92, C401, C402, C411 +13 |
| 2 | CL05A105KO5NNNC 1uF/16V | C_0402_1005Metric | C66, C69 |
| 2 | CL05A226MQ5QUNC 22uF/6.3V | C_0402_1005Metric | C86, C93 |
| 10 | 0402B104K160CT 0.1uF/16V | C_0402_1005Metric | C87, C89, C90, C94, C95, C96, C97, C98 +2 |
| 14 | CL05A106MP5NUNC 10uF/10V | C_0402_1005Metric | C101, C103, C111, C113, C121, C123, C131, C133 +6 |
| 16 | GRM155R61H224KE01D 220nF/50V | C_0402_1005Metric | C105, C106, C115, C116, C125, C126, C135, C136 +8 |
| 4 | VT1E101M-CRE54 100uF/25V | CP_Elec_6.3x7.7 | C205, C206, C305, C306 |
| 2 | VZT471M1ATR-0607 470uF/10V | CP_Elec_6.3x7.7 | C210, C310 |
| 3 | RC0402FR-071KL 1K/1% | R_0402_1005Metric | R1, R11, R47 |
| 6 | RC0402FR-0710KL 10K/1% | R_0402_1005Metric | R2, R49, R58, R63, R95, R482 |
| 13 | RC0402FR-072K2L 2.2K/1% | R_0402_1005Metric | R3, R5, R15, R18, R19, R52, R53, R102 +5 |
| 1 | RC0402FR-071ML 1M/1% | R_0402_1005Metric | R4 |
| 5 | RC0402FR-0721K5L 21.5K/1% | R_0402_1005Metric | R6, R54, R67, R68, R70 |
| 8 | RC0402FR-07470RL 470R/1% | R_0402_1005Metric | R7, R8, R9, R10, R13, R14, R16, R17 |
| 5 | RC0402FR-07100RL 100R/1% | R_0402_1005Metric | R46, R48, R55, R69, R71 |
| 17 | RC0402FR-07100KL 100K/1% | R_0402_1005Metric | R51, R59, R76, R77, R78, R79, R96, R97 +9 |
| 2 | RC0402FR-0775KL 75K/1% | R_0402_1005Metric | R57, R481 |
| 8 | RC0402FR-0722KL 22K/1% | R_0402_1005Metric | R60, R402, R412, R422, R432, R442, R452, R462 |
| 2 | RC0402FR-074K7L 4.7K/1% | R_0402_1005Metric | R72, R74 |
| 1 | RC0402FR-07120KL 120K/1% | R_0402_1005Metric | R80 |
| 1 | RMC 0402 0R N 0R | R_0402_1005Metric | R81 |
| 5 | RC0402FR-0715RL 15R/1% | R_0402_1005Metric | R82, R83, R84, R85, R86 |
| 8 | RC0402JR-0733RP 33R/5% | R_0402_1005Metric | R87, R88, R89, R90, R91, R92, R93, R94 |
