Nvme Carrier all M2
About the Nvme Carrier all M2 PCB
Nvme Carrier all M2 is an open source PCB design by El-Luhb, published on GitHub under the MIT license. It is a 4-layer board measuring 170.2 × 170.2 mm, with 358 components from 71 distinct parts.
Other key parts include the TPAZ1023-04F, ULC0524P, SY8253ADC, AMS1117-3.3 and W25Q128JVSIQ. By type, the board carries 163 capacitors, 96 resistors, 31 diodes, 20 connectors, 18 ICs and 10 inductors.
From the project

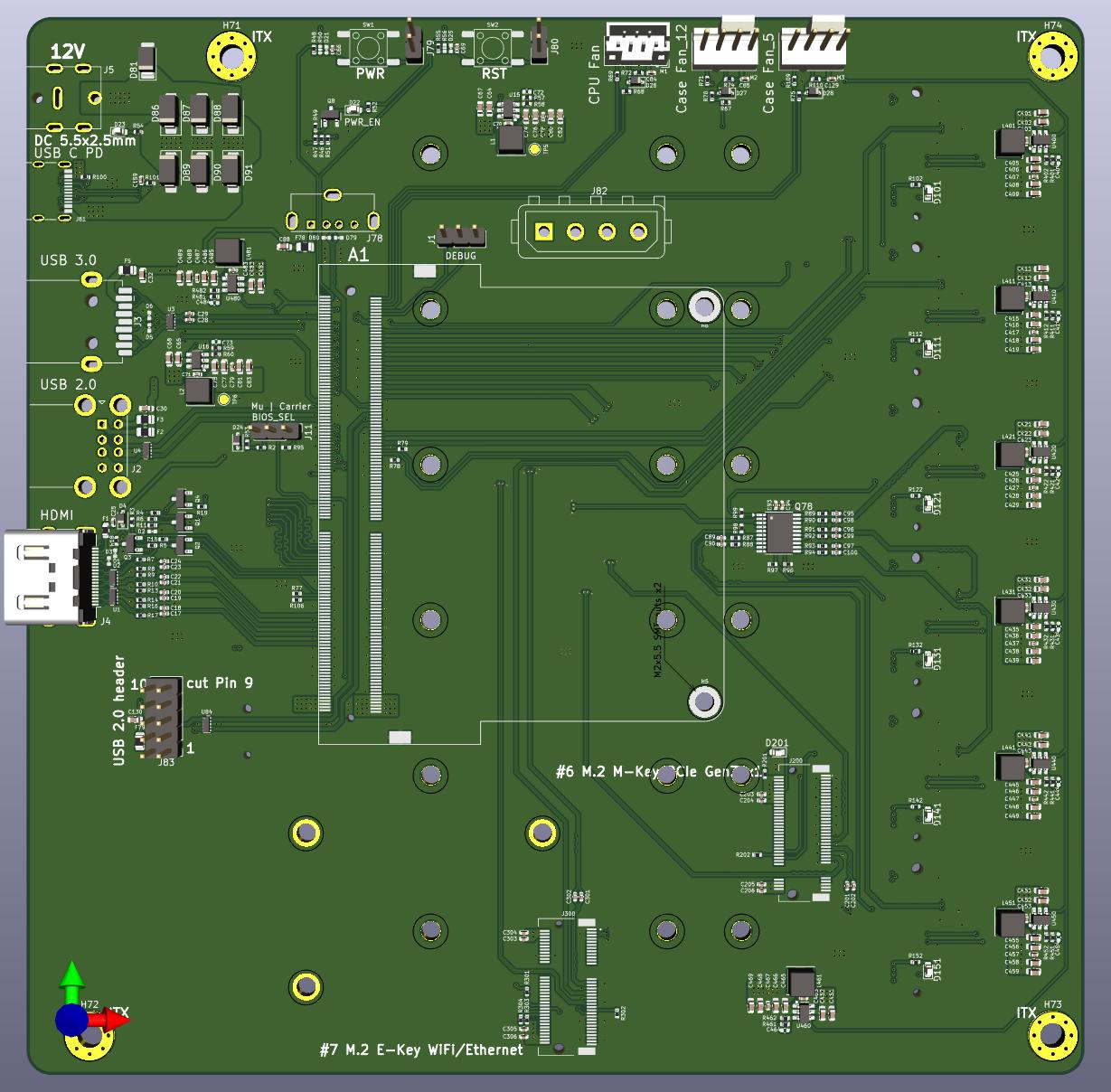

nvme Carrier PCB for the LattePanda Mu compute module
- DC 5.5x2.5mm: 12V (Max 10A) - USB-C 15V
- 1x M.2 M Key 2242 & 2280 (PCIe 3.0 x1) on the frontside - 1x M.2 E Key 2242 (PCIe 3.0 x1) on the frontside - 6x M.2 M Key up to 2280 (PCIe 3.0 x1) on the backside - RTC battery socket (CR1220 3V) - CPU fan socket - 2x CASE fan socket (1x only when using 12V) - 3x USB 2.0 (1x USB Port) - MOLEX Connector for 5V (2A) and 12V Supply to HDDs (only when using 12V)
Main components on the Nvme Carrier all M2
Nvme Carrier all M2 bill of materials (BOM)
358 components, 71 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TPAZ1023-04F | Diodes_UDFN-10_1.0x2.5mm_P0.5mm | U1, U2 |
| 3 | ULC0524P | Diodes_UDFN-10_1.0x2.5mm_P0.5mm | U3, U4, U84 |
| 10 | SY8253ADC | TSOT-23-6 | U15, U16, U400, U410, U420, U430, U440, U450 +2 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U78 |
| 1 | W25Q128JVSIQ | SOIC-8_5.23x5.23mm_P1.27mm | U79 |
| 1 | CH224K | SSOP-10-1EP_3.9x4.9mm_P1mm_EP2.1x3.3mm | U80 |
| 1 | ADDR0069-P009A LattePanda_Mu | LattePanda_Module_H8.0mm_Horizontal | A1 |
| 1 | B4B-PH-K-S-GW Fan_4pin | JST_PH_B4B-PH-K_1x04_P2.00mm_Vertical | M1 |
| 2 | 470531000 Fan_4pin | FanPinHeader_1x04_P2.54mm_Vertical | M2, M3 |
| 2 | NDS7002A 2N7002 | SOT-23 | Q1, Q8 |
| 3 | 2SK3018 | SOT-23 | Q2, Q3, Q4 |
| 1 | 9DBL411BGLFT | TSSOP-20_4.4x6.5mm_P0.65mm | Q78 |
| 2 | PZ2.54-1*3 Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Vertical | J1, J11 |
| 1 | UJ2-ADH-1-TH USB_A_Stacked | USB_A_CUI_UJ2-ADH-TH_Horizontal_Stacked | J2 |
| 1 | 692122030100 USB3_A | USB3_A_Receptacle_Wuerth_692122030100 | J3 |
| 1 | 2086581001 HDMI_A | HDMI_A_Molex_208658-1001_Horizontal | J4 |
| 1 | HX DC007B-2.5-J Barrel_Jack_Switch | DC_Jack_DC007B_30V_10A | J5 |
| 1 | 1050570001 USB_A | USB_A_Molex_105057_Vertical | J78 |
| 2 | PZ2.54-1*2 Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Vertical | J79, J80 |
| 1 | GT-USB-7010ASV USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_G-Switch_GT-USB-7010ASV | J81 |
Show 51 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 770997-1 Conn_01x04 | TE_MATE-N-LOK_350211-1_1x04_P5.08mm_Vertical | J82 |
| 1 | PZ254V-12-10P PINHD_2x5_Male | PinHeader_2x05_P2.54mm_Vertical | J83 |
| 6 | 1-2199230-5 Bus_M.2_Socket_M | PCIe_M.2_Connectors_P=0.5mm_H=4.2mm_KeyM | J100, J110, J120, J130, J140, J150 |
| 1 | Bus_M.2_Socket_M | PCIe_M.2_Connectors_P=0.5mm_H=4.2mm_KeyM | J200 |
| 1 | Bus_M.2_Socket_E | PCIe_M.2_Connectors_P=0.5mm_H=4.2mm_KeyE | J300 |
| 1 | CR1220-2 Battery_Cell | Battery_Holder_CR1220_S8411-45R | BT1 |
| 1 | 0603L050/6AR 6V/50mA | R_0603_1608Metric | F1 |
| 4 | BSMD0805-100-6V 6V/1A | Fuse_0805_2012Metric | F2, F3, F78, F79 |
| 1 | BSMD0805L-200 6V/2A | Fuse_0805_2012Metric | F5 |
| 2 | DTSM-62K-V-T/R SW_Push | SW_Push_6x6x6 | SW1, SW2 |
| 1 | NCU18XH103F60RB NTC-10K | R_0603_1608Metric | TH1 |
| 9 | ESD5V0B03-1006 ESD5V0B03 | D_0402_1005Metric | D1, D2, D3, D5, D6, D21, D25, D79 +1 |
| 4 | 1N5819WS | D_SOD-323 | D4, D26, D27, D28 |
| 8 | SZYY0603YG LED_G | LED_0603_1608Metric | D22, D23, D101, D111, D121, D131, D141, D151 |
| 1 | SZMM3Z3V3T1G 3V3 Izt=5mA | D_SOD-323 | D24 |
| 1 | RB521C30-2/TR D_Schottky | D_SOD-923 | D78 |
| 1 | PTVS12VP1UP,115 PTVS12VP1UP | D_SOD-128 | D81 |
| 6 | SS54 | D_SMA | D86, D87, D88, D89, D90, D91 |
| 1 | LED_G | LED_0603_1608Metric | D201 |
| 10 | WPN4020H2R2MT 2.2uH/4.3A | L_Sunlord_SWPA4020S | L1, L2, L401, L411, L421, L431, L441, L451 +2 |
| 46 | GRM155R71H104KE14D 100nF/50V | C_0402_1005Metric | C17, C18, C19, C20, C21, C22, C23, C24 +38 |
| 45 | CL10A226MP8NUNE 22uF/10V | C_0603_1608Metric | C30, C32, C74, C75, C76, C77, C80, C81 +37 |
| 21 | CL10A226MO7JZNC 22uF/16V | C_0603_1608Metric | C64, C65, C67, C68, C92, C401, C402, C411 +13 |
| 2 | CL05A105KO5NNNC 1uF/16V | C_0402_1005Metric | C66, C69 |
| 2 | CL05A226MQ5QUNC 22uF/6.3V | C_0402_1005Metric | C86, C93 |
| 10 | 0402B104K160CT 0.1uF/16V | C_0402_1005Metric | C87, C89, C90, C94, C95, C96, C97, C98 +2 |
| 12 | CL05A106MP5NUNC 10uF/10V | C_0402_1005Metric | C101, C103, C111, C113, C121, C123, C131, C133 +4 |
| 16 | GRM155R61H224KE01D 220nF/50V | C_0402_1005Metric | C105, C106, C115, C116, C125, C126, C135, C136 +8 |
| 1 | 1uF/16V | C_0402_1005Metric | C159 |
| 4 | 10uF/10V | C_0402_1005Metric | C203, C205, C303, C305 |
| 4 | 100nF/50V | C_0402_1005Metric | C204, C206, C304, C306 |
| 3 | RC0402FR-071KL 1K/1% | R_0402_1005Metric | R1, R11, R47 |
| 6 | RC0402FR-0710KL 10K/1% | R_0402_1005Metric | R2, R49, R58, R63, R95, R482 |
| 13 | RC0402FR-072K2L 2.2K/1% | R_0402_1005Metric | R3, R5, R15, R18, R19, R52, R53, R102 +5 |
| 1 | RC0402FR-071ML 1M/1% | R_0402_1005Metric | R4 |
| 6 | RC0402FR-0721K5L 21.5K/1% | R_0402_1005Metric | R6, R54, R67, R68, R70, R75 |
| 8 | RC0402FR-07470RL 470R/1% | R_0402_1005Metric | R7, R8, R9, R10, R13, R14, R16, R17 |
| 6 | RC0402FR-07100RL 100R/1% | R_0402_1005Metric | R46, R48, R55, R69, R71, R109 |
| 17 | RC0402FR-07100KL 100K/1% | R_0402_1005Metric | R51, R59, R77, R78, R79, R96, R97, R98 +9 |
| 2 | RC0402FR-0775KL 75K/1% | R_0402_1005Metric | R57, R481 |
| 8 | RC0402FR-0722KL 22K/1% | R_0402_1005Metric | R60, R402, R412, R422, R432, R442, R452, R462 |
| 3 | RC0402FR-074K7L 4.7K/1% | R_0402_1005Metric | R72, R74, R110 |
| 1 | RC0402FR-07120KL 120K/1% | R_0402_1005Metric | R80 |
| 1 | RMC 0402 0R N 0R | R_0402_1005Metric | R81 |
| 5 | RC0402FR-0715RL 15R/1% | R_0402_1005Metric | R82, R83, R84, R85, R86 |
| 8 | RC0402JR-0733RP 33R/5% | R_0402_1005Metric | R87, R88, R89, R90, R91, R92, R93, R94 |
| 1 | RC0402FR-0721K5L 10K/1% | R_0402_1005Metric | R100 |
| 1 | RC0402FR-0721K5L 1K/1% | R_0402_1005Metric | R101 |
| 1 | 2.2K/1% | R_0402_1005Metric | R201 |
| 3 | 0R/1% | R_0402_1005Metric | R202, R301, R302 |
| 2 | 10K/1% | R_0402_1005Metric | R303, R304 |
Nvme Carrier all M2 design files
The KiCad project lives in the El-Luhb/nvme-Carrier-for-LattePanda-Mu repository on GitHub; these links point at the commit this page was built from.
Nvme Carrier all M2: common questions
How big is the Nvme Carrier all M2 PCB?
The Nvme Carrier all M2 measures 170.2 × 170.2 mm, has 4 copper layers and is 1.6062 mm thick.
How many components are on the Nvme Carrier all M2?
358 components, from 71 distinct parts. The full bill of materials is listed on this page.
Where can I download the Nvme Carrier all M2 design files?
From the El-Luhb/nvme-Carrier-for-LattePanda-Mu repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Nvme Carrier all M2 design in my own project?
Yes, under the terms of its MIT license, which El-Luhb chose for the repository.
