Possu2

Elektroniikkakerho·Led-merkki·kicad/possu/possu2.kicad_pcb

Possu2 PCB layout, top view — open source AVR/Arduino board by Elektroniikkakerho

About the Possu2 PCB

Possu2 is an open source AVR/Arduino PCB design by Elektroniikkakerho, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 48.9 × 67.3 mm, with 43 components from 8 distinct parts.

Its main chip is the ATTINY861-S, from the AVR/Arduino family. By type, the board carries 32 diodes, 4 resistors, 3 connectors, 1 IC, 1 fuse and 1 switch.

From the project

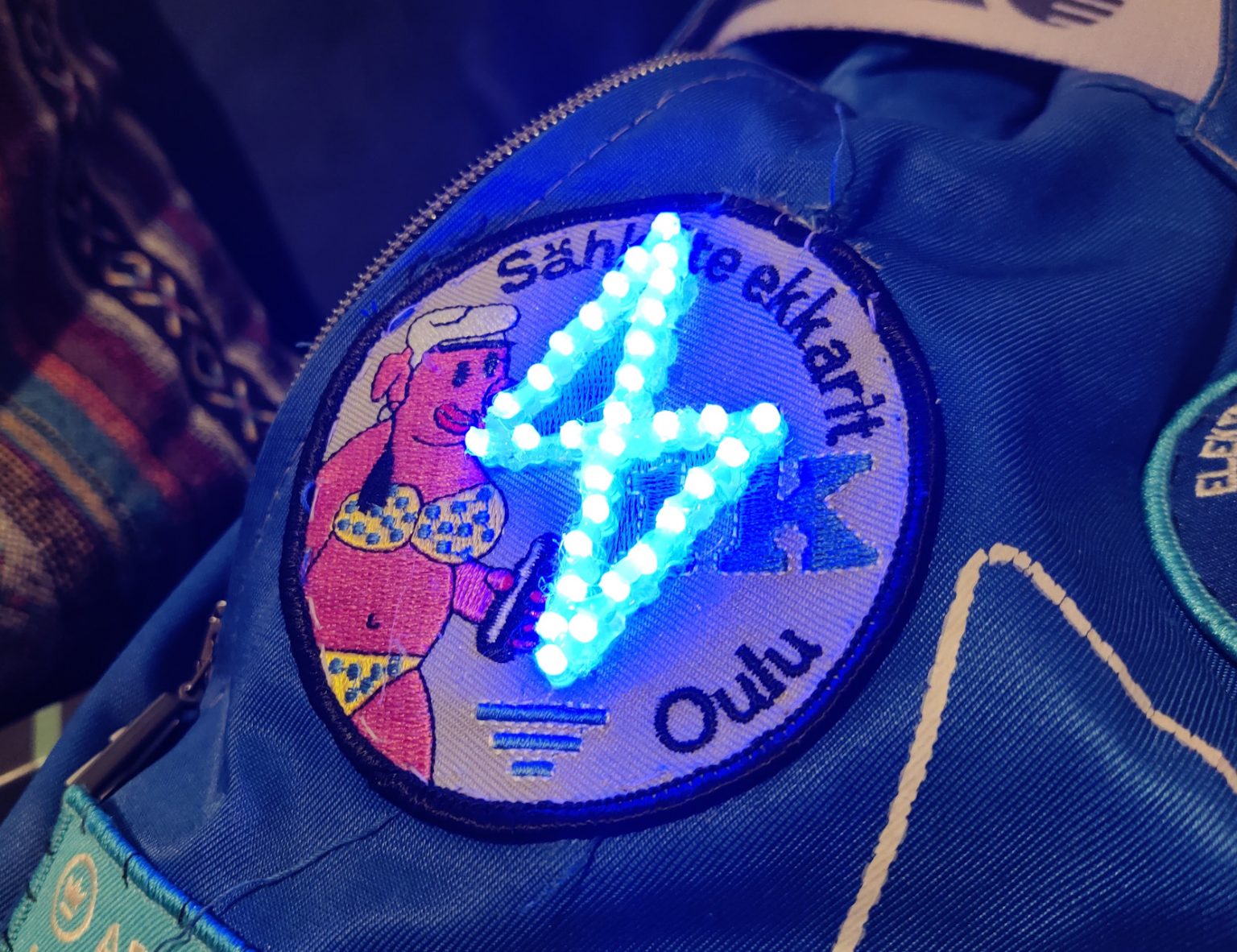

Haalarimerkki sinisellä ledisalamalla!

Levyyn on myös suunniteltu kytkin, jolla voisi vaikka sammuttaa laitteen tai toimittaa muuta toiminnallisuutta, mutta näitä ei ole koodissa toteutettu vieläkään.

Kuusipinninen liitin on ohjelmointia varten ja sitä kautta ohjelma siirretääm mikrokontrollerille. Ohjelmointi hoituu Arduinon ISP:n kautta.

Nyt kun sinulla on piirilevy, laitetaampa siihen komponentit kiinni.

Possu2, from the project README
From the project README

Main components on the Possu2

ATTINY861-S

Possu2 bill of materials (BOM)

43 components, 8 distinct parts.

QtyPartRefs
1
ATTINY861-S
IC1
1
CONN_6
P1
2
CONN_2
P2, P3
1
Polyfuse
F1
1
SW_PUSH
SW1
32
LED
D1, D2, D3, D4, D5, D6, D7, D8 +24
1
CP1
C1
4
110
R1, R2, R3, R4

Possu2 design files

The KiCad project lives in the Elektroniikkakerho/Led-merkki repository on GitHub; these links point at the commit this page was built from.

Possu2: common questions

What microcontroller does the Possu2 use?

The Possu2 is built around the ATTINY861-S, from the AVR/Arduino family.

How big is the Possu2 PCB?

The Possu2 measures 48.9 × 67.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Possu2?

43 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Possu2 design files?

From the Elektroniikkakerho/Led-merkki repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Possu2 design in my own project?

Yes, under the terms of its GPL-3.0 license, which Elektroniikkakerho chose for the repository.

Can I test firmware for the Possu2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
