Adafruit USB Type C Downstream Breakout rev B
About the Adafruit USB Type C Downstream Breakout rev B
Adafruit USB Type C Downstream Breakout rev B is an open source PCB design by eloicote, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 20.3 × 14 mm, with 3 components from 3 distinct parts.
By type, the board carries 2 ICs and 1 jumper.
It belongs with the dev boards & breakouts and robotics & motion designs in this gallery.
From the project
ESP32 based freemoving drone with a camera for FPV which utilizes three omniwheels in a delta formation to move freely in 3 dimensions

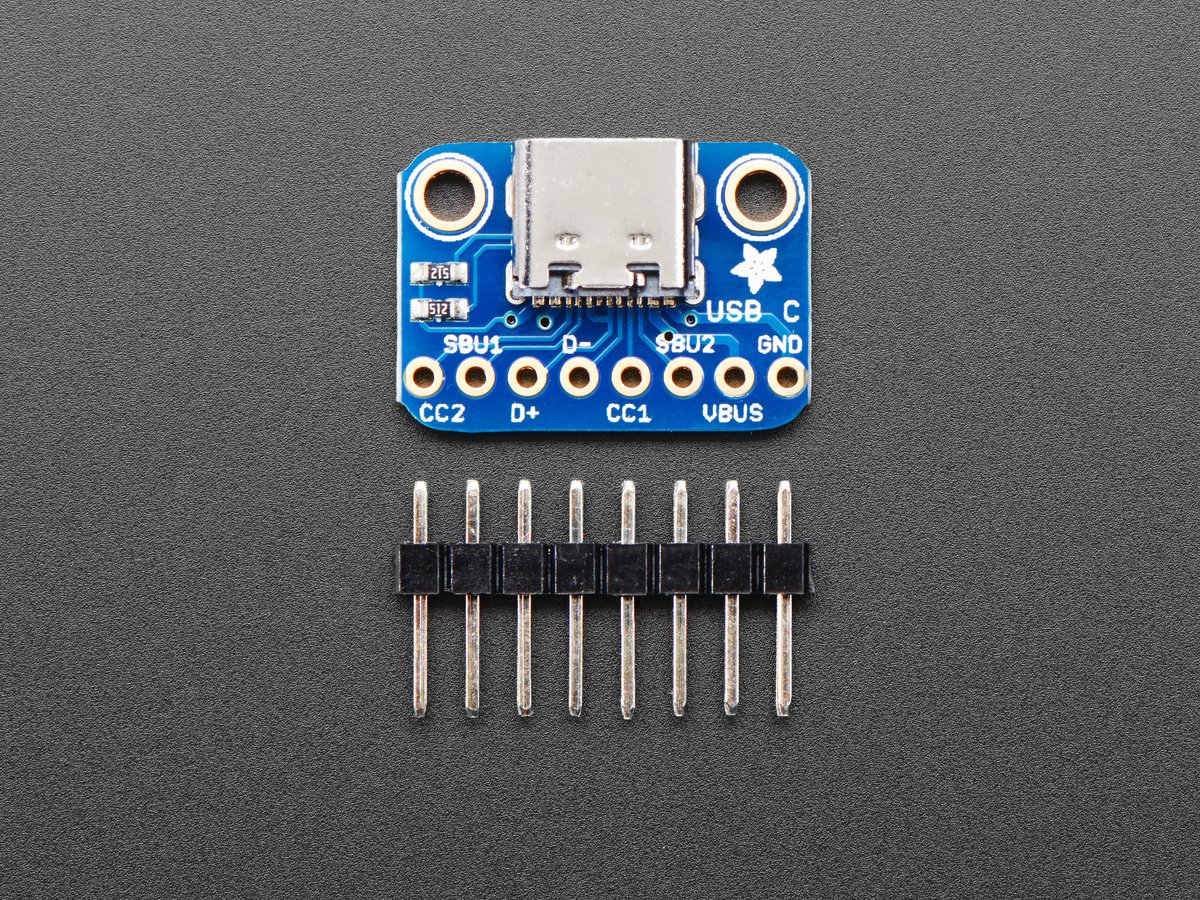

PCB files for the Adafruit USB C Breakout Board - Downstream Connection. Format is EagleCAD schematic and board layout * https://www.adafruit.com/product/4090
Throw out all those Mini and Micro B USB cables you have in a plastic bin - the next generation of USB connectors is here with USB C! You will start to see these connectors pop up on all sorts of devices, as the industry moves from micro B or lightening to the new standard. Well, at least until the next standard comes out
Adafruit USB Type C Downstream Breakout rev B bill of materials (BOM)
3 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | — | ADAFRUIT_2.5MM | U$3 |
| 1 | — | PCBFEAT-REV-040 | U$8 |
| 1 | — | 1X08_ROUND_76 | JP1 |
Adafruit USB Type C Downstream Breakout rev B design files
The KiCad project lives in the eloicote/remote_omnidirectional_droid repository on GitHub; these links point at the commit this page was built from.
Adafruit USB Type C Downstream Breakout rev B: common questions
How big is the Adafruit USB Type C Downstream Breakout rev B?
The Adafruit USB Type C Downstream Breakout rev B measures 20.3 × 14 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Adafruit USB Type C Downstream Breakout rev B?
3 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the Adafruit USB Type C Downstream Breakout rev B design files?
From the eloicote/remote_omnidirectional_droid repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Adafruit USB Type C Downstream Breakout rev B design in my own project?
Yes, under the terms of its GPL-3.0 license, which eloicote chose for the repository.
