Spotipad PCB layout, top view — open source RP2040/RP2350 board by emb3rcia

About the Spotipad PCB

Spotipad is an open source RP2040/RP2350 PCB design by emb3rcia, published on GitHub. It is a 2-layer board measuring 58 × 37.1 mm, with 6 components from 4 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 4 switches, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

Spotify control micropad made for hackpad.hackclub.com

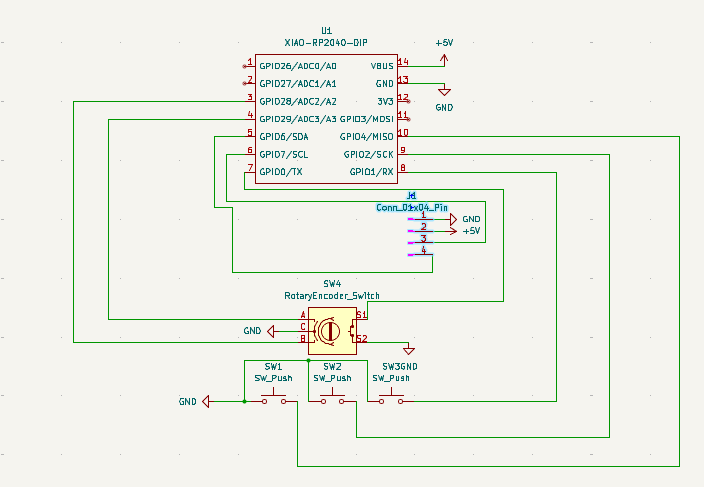

Spotipad, from the project README
From the project README

Main components on the Spotipad

XIAO-RP2040-DIP

Spotipad bill of materials (BOM)

6 components, 4 distinct parts.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
1
Conn_01x04_Pin
J1
3
SW_Push
SW1, SW2, SW3
1
RotaryEncoder_Switch
SW4

Spotipad design files

The KiCad project lives in the emb3rcia/spotipad repository on GitHub; these links point at the commit this page was built from.

Spotipad: common questions

What microcontroller does the Spotipad use?

The Spotipad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the Spotipad PCB?

The Spotipad measures 58 × 37.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Spotipad?

6 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Spotipad design files?

From the emb3rcia/spotipad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Spotipad design in my own project?

The repository has no license, so all rights stay with emb3rcia. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Spotipad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
