P-1000010 Okra Cicada 2G PCBA
EnAccess·Cicada-GSM-HW·design/source/kicad/P-1000010_Okra Cicada 2G PCBA.kicad_pcb
About the P-1000010 Okra Cicada 2G PCBA PCB
P-1000010 Okra Cicada 2G PCBA is an open source PCB design by EnAccess, published on GitHub under the MIT license. It is a 2-layer board measuring 40 × 65 mm, with 53 components from 32 distinct parts.
Other key parts include the 74LVC1G17GW, USBLC6-2SC6, MT3406 and SIM800C. By type, the board carries 20 capacitors, 14 resistors, 7 diodes, 5 ICs, 5 connectors and 1 transistor.
It belongs with the iot & wireless designs in this gallery.
From the project
IoT Communications Module for Energy Access. A quick way to get production ready, bi-directional communications for your IoT embedded device.
This repository contains the hardware design of IOT embedded bi-directional communications device. through 2G, 3G, 4G modemsTech.
Checkout the examples in the firmware repository here
If you are only interested in manufacturing the PCBs, you only need files in the /manufacturing/ directory. send them to your contract manufacturer of choice,Some examples of other turnkey PCBA manufacturers are:

Main components on the P-1000010 Okra Cicada 2G PCBA
P-1000010 Okra Cicada 2G PCBA bill of materials (BOM)
53 components, 32 distinct parts — part numbers from the project's BOM.

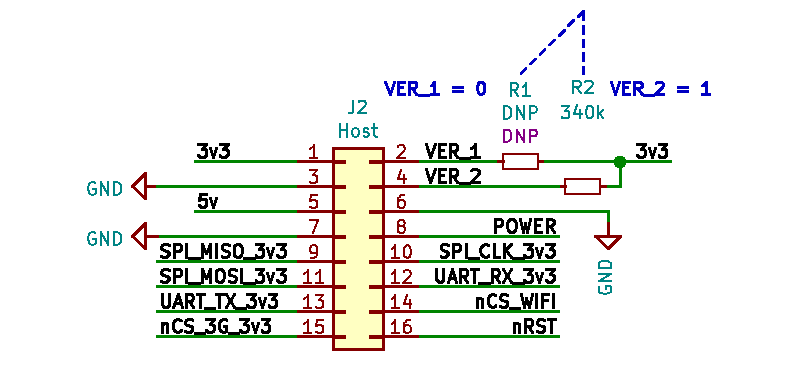

| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 74LVC1G17GW 74LVC1G17 NXP Semicon | SOT-353_SC-70-5 | U1, U5 |
| 1 | USBLC6-2SC6 Yenji Elec | SOT-23-6 | U2 |
| 1 | MT3406 M3406-ADJ XI'AN Aerosemi Tech | TSOT-23-5 | U3 |
| 1 | SIM800C SIM800C (ordinary version) Simcom | SIMCom_SIM800C | U4 |
| 1 | 2N7002 Guangdong Hottech | SOT-23 | Q1 |
| 1 | C30867 Host Boom Precision Elec | PinSocket_2x08_P2.54mm_Vertical_padded | J2 |
| 1 | A01SB141B1-067 USB_OTG Jing Extension of the Electronic | ZX62D-B-5PA8 | J3 |
| 1 | U.FL-R-SMT-1(80) IPX Hirose | U.FL_Molex_MCRF_73412-0110_Vertical | J4 |
| 1 | U.FL-R-SMT-1(80) DNP IPX Hirose | U.FL_Molex_MCRF_73412-0110_Vertical | J5 |
| 1 | SK-C793 Shenzhen Shengkai Electronics | SK-C793 | P1 |
| 3 | ESD5Z3V3 TVS Tak Cheong | D_SOD-523 | D1, D2, D3 |
| 1 | ORH-B36G LED_B Orient | D_0603_1608Metric | D4 |
| 2 | SS14F SS14 MDD | D_SMA | D5, D10 |
| 1 | LXES15AAA1-153 TVS Murata Electronics | D_0402_1005Metric | D6 |
| 1 | FPI0403F-3R3M 3.3uH 2A TAITEC | L_4030_Handsoldering | L4 |
| 3 | 0603B104K500NT 0.1uF 50v X5R Guangdong Fenghua Advanced Tech | C_0603_1608Metric | C1, C18, C21 |
| 4 | 0402CG330J500NT 33pF C0G Guangdong Fenghua Advanced Tech | C_0402_1005Metric | C2, C3, C4, C16 |
| 4 | GR108M010F12RR0VL4FP0 1000uF 10v Dongguan Chengxing Elec | CP_Radial_D8.0mm_P3.50mm | C5, C11, C12, C14 |
| 2 | DNP | C_0402_1005Metric | C6, C9 |
| 1 | CL10A105KB8NNNC DNP SAMSUNG | C_0402_1005Metric | C7 |
Show 12 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CL10B104KB8NNNC DNP SAMSUNG | C_0402_1005Metric | C8 |
| 1 | GR108M010F12RR0VL4FP0 DNP 1000uF 10v Dongguan Chengxing Elec | CP_Radial_D8.0mm_P3.50mm | C10 |
| 2 | 0402CG101J500NT 100pF C0G Guangdong Fenghua Advanced Tech | C_0402_1005Metric | C17, C20 |
| 2 | CL21A226MOQNNNE 22uF 16v X5R Samsung | C_0805_2012Metric | C19, C22 |
| 1 | RC0402JR-07150KL 150k YAGEO | R_0402_1005Metric | R1 |
| 1 | RC0402FR-0786K6L 86.6k YAGEO | R_0402_1005Metric | R2 |
| 2 | RC0402FR-07330RL 330R YAGEO | R_0402_1005Metric | R3, R4 |
| 3 | RC0402FR-0722RL 22R YAGEO | R_0402_1005Metric | R7, R8, R9 |
| 1 | RC0402JR-071KL 1K YAGEO | R_0402_1005Metric | R10 |
| 2 | RC0402FR-070RL 0R YAGEO | R_0402_1005Metric | R12, R13 |
| 2 | RC0402FR-076K98L 6.98k YAGEO | R_0402_1005Metric | R14, R23 |
| 2 | RC0402FR-0740K2L 40.2k YAGEO | R_0402_1005Metric | R19, R22 |
P-1000010 Okra Cicada 2G PCBA design files
The KiCad project lives in the EnAccess/Cicada-GSM-HW repository on GitHub; these links point at the commit this page was built from.
P-1000010 Okra Cicada 2G PCBA: common questions
How big is the P-1000010 Okra Cicada 2G PCBA PCB?
The P-1000010 Okra Cicada 2G PCBA measures 40 × 65 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the P-1000010 Okra Cicada 2G PCBA?
53 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the P-1000010 Okra Cicada 2G PCBA design files?
From the EnAccess/Cicada-GSM-HW repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the P-1000010 Okra Cicada 2G PCBA design in my own project?
Yes, under the terms of its MIT license, which EnAccess chose for the repository.
