PAM8301 Circuit PCB layout, top view — open source board by engali94

About the PAM8301 Circuit PCB

PAM8301 Circuit is an open source PCB design by engali94, published on GitHub. It is a 2-layer board measuring 20 × 11 mm, with 8 components from 7 distinct parts.

Other key parts include the PAM8301. By type, the board carries 3 capacitors, 2 connectors, 1 IC, 1 speaker and 1 resistor.

It belongs with the audio and dev boards & breakouts designs in this gallery.

From the project

Circuit Board for the PAM8301 Class-D Mono Audio Amplifier

This is a circuit board for the PAM8301 Class-D Mono Audio Amplifier.

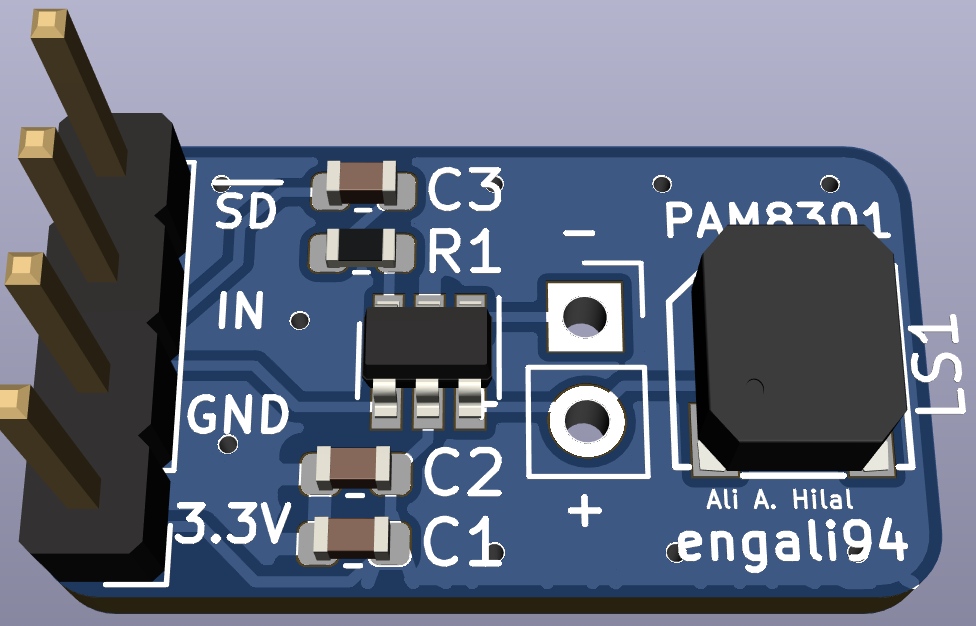

PAM8301 Circuit, from the project README
From the project README

Main components on the PAM8301 Circuit

PAM8301

PAM8301 Circuit bill of materials (BOM)

8 components, 7 distinct parts.

QtyPartRefs
1
PAM8301
U1
1
Conn_01x04
J1
1
Conn_01x02
J2
1
Speaker
LS1
2
0.1uF
C1, C3
1
10uF
C2
1
47k
R1

PAM8301 Circuit design files

The KiCad project lives in the engali94/PAM8301_Circuit repository on GitHub; these links point at the commit this page was built from.

PAM8301 Circuit: common questions

How big is the PAM8301 Circuit PCB?

The PAM8301 Circuit measures 20 × 11 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PAM8301 Circuit?

8 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the PAM8301 Circuit design files?

From the engali94/PAM8301_Circuit repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PAM8301 Circuit design in my own project?

The repository has no license, so all rights stay with engali94. Use it as a reference, and ask the author before reusing the design.
