Engemil pmw3901mb hardware

engemil·engemil_pmw3901mb_hardware·engemil_pmw3901mb/engemil_pmw3901mb.kicad_pcb

Engemil pmw3901mb hardware PCB layout, top view — open source board by engemil

About the Engemil pmw3901mb hardware PCB

Engemil pmw3901mb hardware is an open source PCB design by engemil, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 50 × 27.3 mm, with 18 components from 13 distinct parts.

Other key parts include the PMW3901MB-TXQT, TPD8E003DQDR, LM66100QDCKRQ1 and TLV77318PDBVR. By type, the board carries 9 capacitors, 4 ICs, 4 resistors and 1 connector.

It belongs with the sensors designs in this gallery.

From the project

PMW3901MB Optiocal Flow Sensor Module designed with KiCAD

The EngEmil PMW3901MB Module is a Optical Motion Tracking Chip module, for optical position control of drones. The PCB module is designed with KiCAD 9.

Version 2 - Removed 3v3 regulator and changed VCC pin text to 3V3 - Added ESD protection - Added reverse voltage protection - Added pull-up resistors for SCLK and MISO. Marked as not mounted. - Added resistor for RC-filter for PMW3901MB. Marked as R4=0ohm, and C3 and C4 not mounted. Note added in schematic.

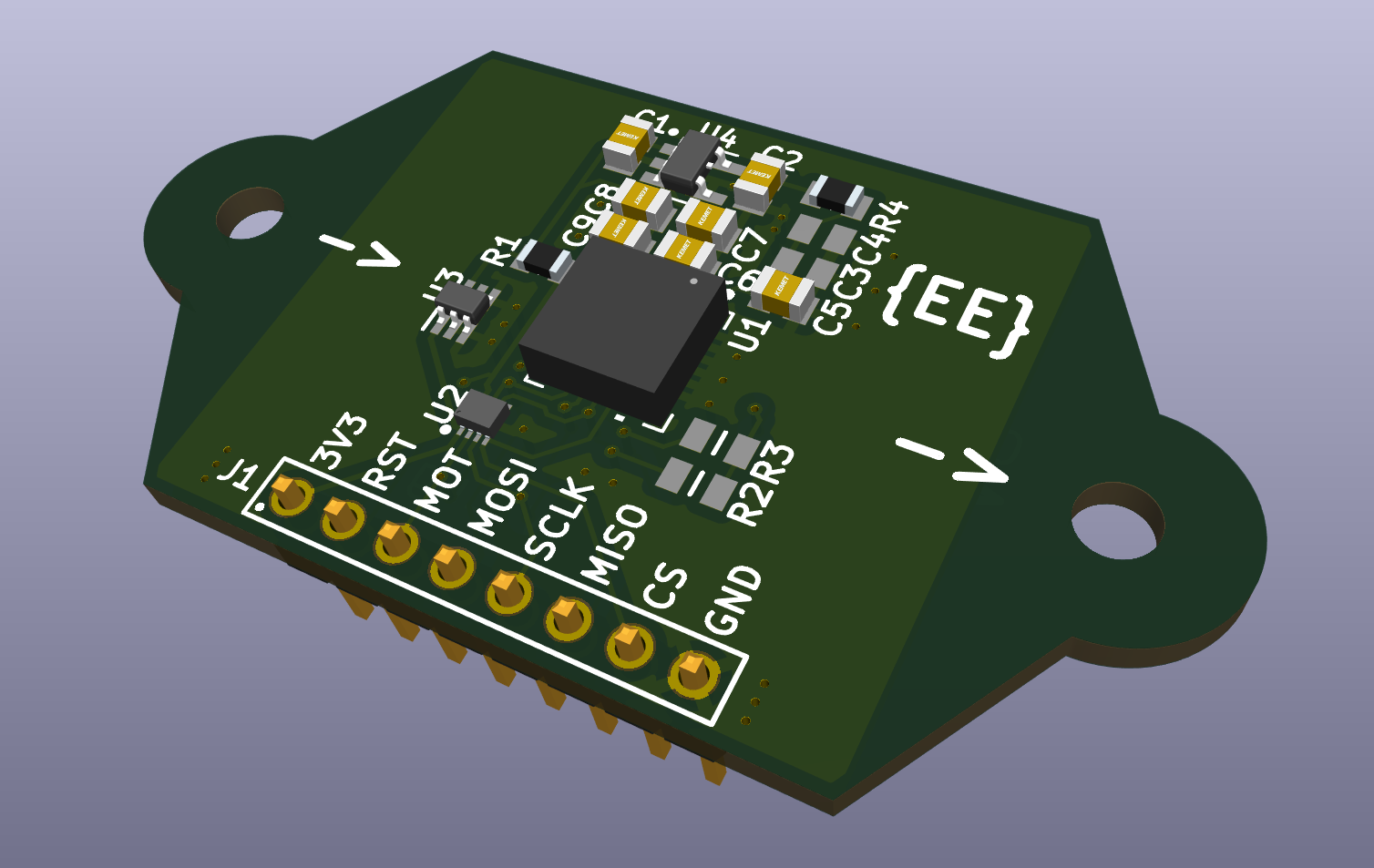

Engemil pmw3901mb hardware, from the project README
From the project README

Main components on the Engemil pmw3901mb hardware

PMW3901MB-TXQTTPD8E003DQDRLM66100QDCKRQ1TLV77318PDBVR

Engemil pmw3901mb hardware bill of materials (BOM)

18 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
PMW3901MB-TXQT
Pixart
U1
1
TPD8E003DQDR
Texas Instrument
U2
1
LM66100QDCKRQ1
Texas Instrument
U3
1
TLV77318PDBVR
Texas Instrument
U4
1
61300811121
6130XX11121
Würth Elektronik
J1
2
C0805C105J4RECAUTO7210
1uF
YAGEO KEMET
C1, C2
2
C0805C226M9PAC7210
Not Mount
YAGEO KEMET
C3, C4
3
C0805C104JMRECAUTO7210
0.1uF
YAGEO KEMET
C5, C6, C8
1
C0805C106K4PAC7210
10uF
YAGEO KEMET
C7
1
C0805C475K4RACAUTO7210
4.7uF
YAGEO KEMET
C9
1
RE0805FRE0710KL
10kOhm
YAGEO
R1
2
RE0805FRE0710KL
Not Mount
YAGEO
R2, R3
1
RC0805FR-100RL
0Ohm
YAGEO
R4

Engemil pmw3901mb hardware design files

The KiCad project lives in the engemil/engemil_pmw3901mb_hardware repository on GitHub; these links point at the commit this page was built from.

Engemil pmw3901mb hardware: common questions

How big is the Engemil pmw3901mb hardware PCB?

The Engemil pmw3901mb hardware measures 50 × 27.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Engemil pmw3901mb hardware?

18 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Engemil pmw3901mb hardware design files?

From the engemil/engemil_pmw3901mb_hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Engemil pmw3901mb hardware design in my own project?

Yes, under the terms of its CERN-OHL-W-2.0 license, which engemil chose for the repository.
