About the Patternflow PCB
Patternflow is an open source ESP32 PCB design by engmung, published on GitHub under the Custom license license. It is a 2-layer board measuring 62 × 116.3 mm, with 9 components from 5 distinct parts.
Its main chip is the ESP32-S3-DevKit-44pin, from the ESP32 family. By type, the board carries 4 switches, 3 connectors, 1 IC and 1 capacitor.
It belongs with the audio and displays & leds designs in this gallery.
From the project
An open-source LED synthesizer. Play light patterns with your fingertips — and every Patternflow plays every pattern we make.

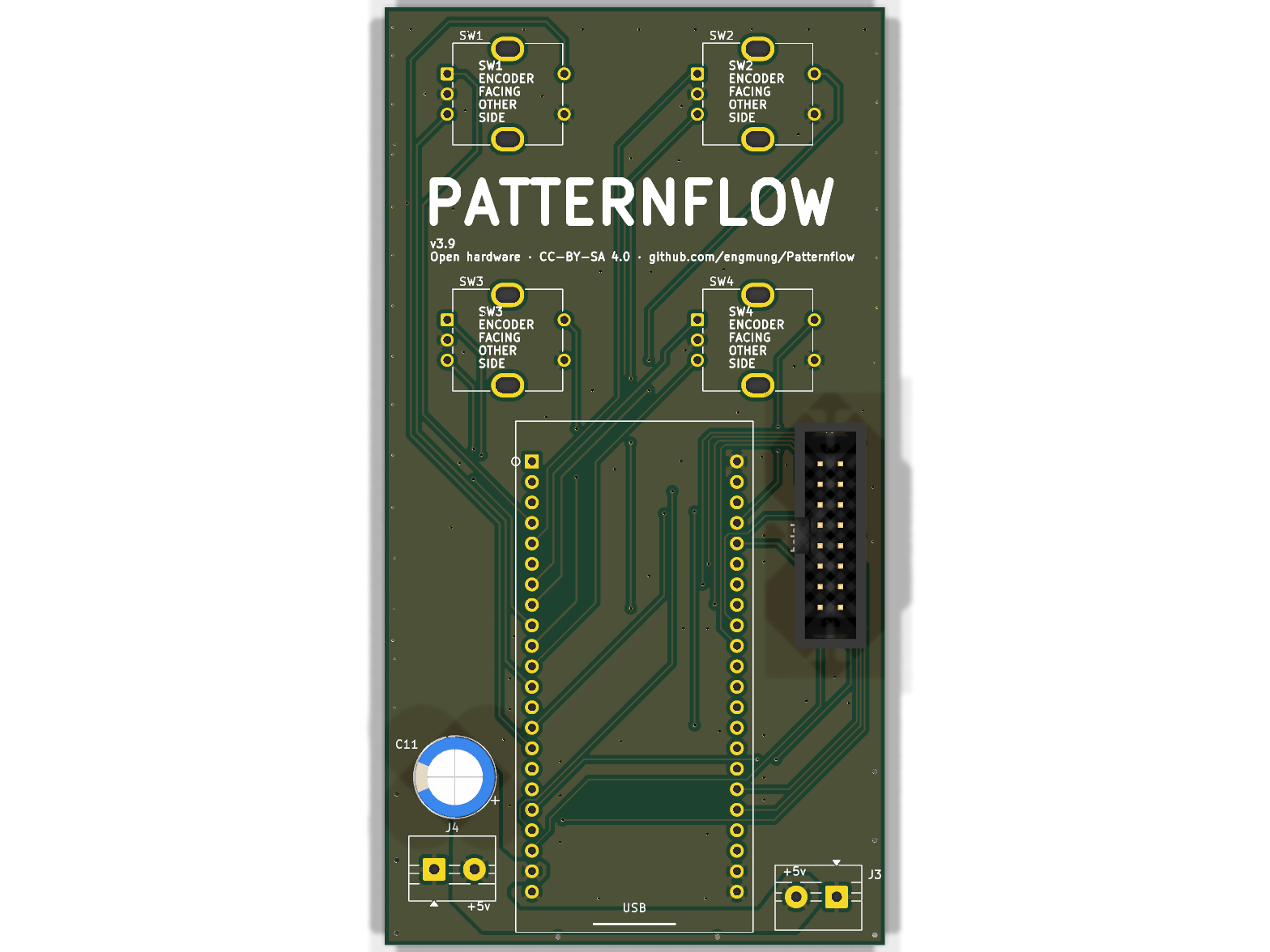

Custom board for the Patternflow LED synthesizer — ESP32-S3 DevKit on sockets, four EC11 encoders, HUB75 out, screw-terminal power input. KiCad 10 project.
Current revision: v3.9 — the USB-C power footprint is gone. v3.0 carried a USB1 receptacle and its R1/R2 CC pull-downs that had to be left unpopulated after a delayed burnout (#221); v3.9 removes them from the board outright, so there is exactly one power input and no way to pick the wrong one. Board outline, mounting holes, and every remaining footprint are unchanged from v3.0 — the v3 cases fit both boards. All through-hole, no SMD…

Main components on the Patternflow
Patternflow bill of materials (BOM)
9 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-S3-DevKit-44pin | ESP32-S3-DevKit-44pin | U1 |
| 1 | Conn_02x08_Odd_Even | PinHeader_2x08_P2.54mm_Vertical | J1 |
| 2 | Screw_Terminal_01x02 | TerminalBlock_MaiXu_MX126-5.0-02P_1x02_P5.00mm | J3, J4 |
| 4 | RotaryEncoder_Switch | RotaryEncoder_Bourns_Vertical_PEC12R-3x17F-Sxxxx | SW1, SW2, SW3, SW4 |
| 1 | 1000uF/16V | CP_Radial_D10.0mm_P5.00mm | C11 |
Patternflow design files
The KiCad project lives in the engmung/Patternflow repository on GitHub; these links point at the commit this page was built from.
Patternflow: common questions
What microcontroller does the Patternflow use?
The Patternflow is built around the ESP32-S3-DevKit-44pin, from the ESP32 family.
How big is the Patternflow PCB?
The Patternflow measures 62 × 116.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Patternflow?
9 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Patternflow design files?
From the engmung/Patternflow repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Patternflow design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
Can I test firmware for the Patternflow without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
