Nanoberry
About the Nanoberry PCB
Nanoberry is an open source PCB design by EnzoRF, published on GitHub under the GPL-3.0 license. It is a board measuring 85 × 56 mm, with 229 components from 80 distinct parts.
Other key parts include the IMX6UL_BGA289, DDR3_BGA96, A7101CH, W25M512JV and PF1550. By type, the board carries 118 capacitors, 58 resistors, 12 ICs, 12 connectors, 11 inductors and 5 diodes.
It belongs with the usb & debug tools designs in this gallery.

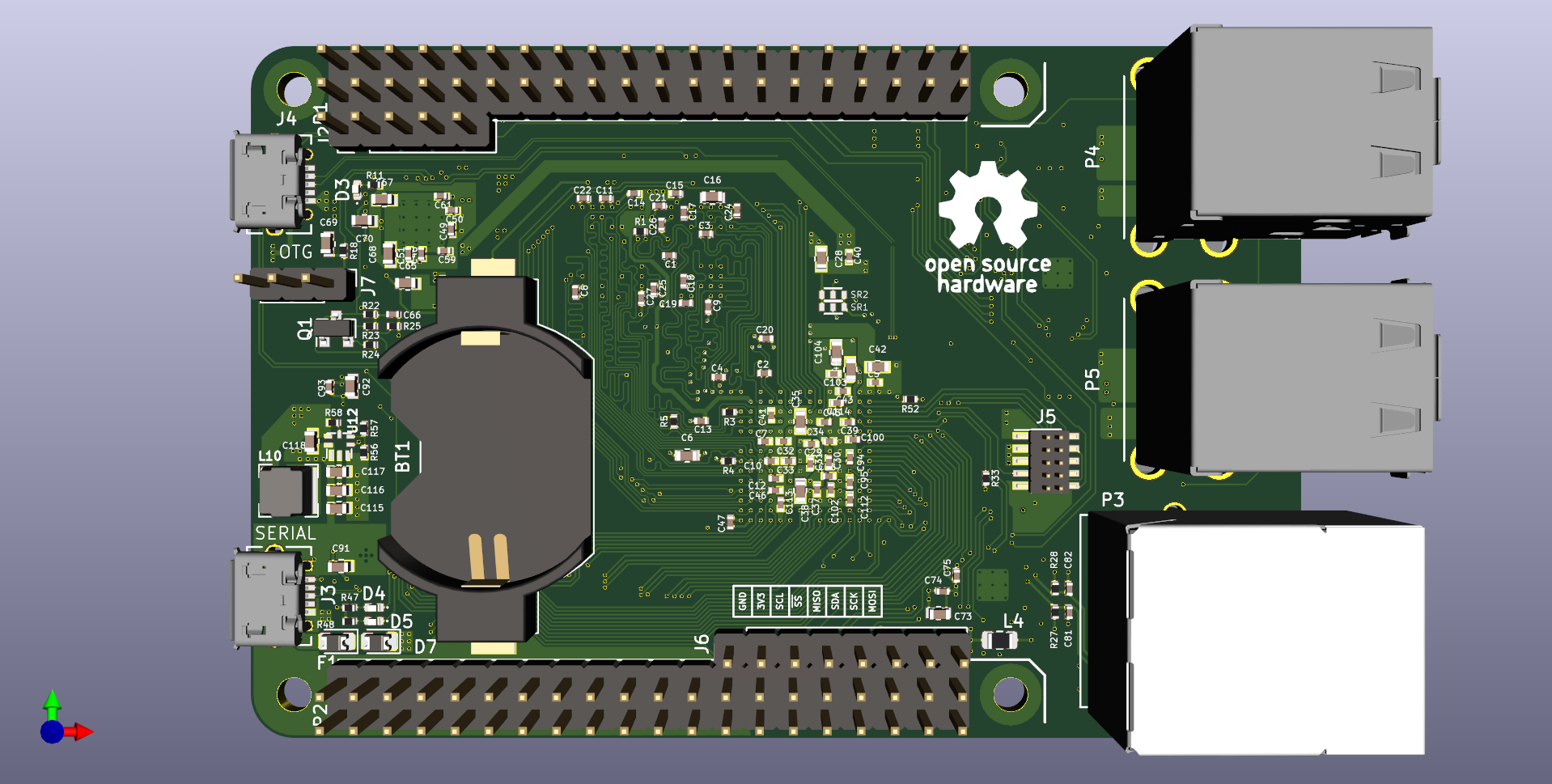

From the project
Single-board computer based on i.MX6 ULL
It is designed to be similar to the very popular Raspberry PI, with the same board size and connectors located in the same side. There are some differences, most notably it does not have HDMI output.
The goal is to have a small computer that everybody can modify according to their needs. All the electronics components can be purchased from electronics distributors and its operation is well documented by the manufacturers. This is the main difference with Raspberry PI.
Main components on the Nanoberry
Nanoberry bill of materials (BOM)
229 components, 80 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | IMX6UL_BGA289 | IMX6UL_BGA289 | U1 |
| 1 | DDR3_BGA96 | DDR3_BGA96 | U2 |
| 1 | A7101CH | SOT909-1 | U3 |
| 2 | W25M512JV | WSON8_8x6mm | U4, U5 |
| 1 | PF1550 | QFN-40-1EP_5x5mm_P0.4mm_EP3.6x3.6mm_ThermalVias | U6 |
| 1 | LAN8720A | QFN-24-1EP_4x4mm_P0.5mm_EP2.6x2.6mm_ThermalVias | U7 |
| 1 | USB2514B | QFN-36-1EP_6x6mm_P0.5mm_EP3.7x3.7mm_ThermalVias | U8 |
| 1 | CP2102N-QFN20 | SiliconLabs_QFN-20-1EP_3x3mm_CUSTOM | U9 |
| 2 | MIC2506 | SOIC-8_3.9x4.9mm_P1.27mm | U10, U11 |
| 1 | MIC2877 | MIC2877 | U12 |
| 1 | 2SK3018 | SOT-23 | Q1 |
| 1 | 32.768 kHz | Crystal_SMD_3215-2Pin_3.2x1.5mm | Y1 |
| 1 | SD-104031 | uSD_104031 | J1 |
| 1 | PMIC_I2C | PinHeader_1x05_P2.54mm_Vertical | J2 |
| 1 | USB_Micro | MCR-B-S-RA-SMT-CS5 | J3 |
| 1 | USB_OTG | MCR-B-S-RA-SMT-CS5 | J4 |
| 1 | JTAG | PinHeader_2x05_P1.00mm_Vertical_SMD | J5 |
| 1 | TOUCH PANEL | PinHeader_1x08_P2.54mm_Vertical | J6 |
| 1 | LiPo_THM | PinHeader_1x03_P2.54mm_Vertical | J7 |
| 1 | EXPANSION | PINHD_2X20_X | P1 |
Show 60 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DISPLAY | PINHD_2X20_X | P2 |
| 1 | J0011D01BNL | MTJ-88TX1-FSD-D1LH-M4Y | P3 |
| 2 | USB-A-D-RA-30 | USB-A-D-RA-30 | P4, P5 |
| 1 | CR2032 | BatteryHolder_Keystone_1058_1x2032 | BT1 |
| 2 | Polyfuse | D_0805_2012Metric | F1, F2 |
| 4 | 4.7K | R_0402_narrow | SB1, SB2, SB3, SB4 |
| 2 | 0 | R_0402_narrow | SB5, SB6 |
| 2 | 24MHz 50ppm | Oscillator_SMD_EuroQuartz_XO32-4Pin_3.2x2.5mm | XTAL1, XTAL2 |
| 1 | LED | LED_0402_1005Metric | D3 |
| 1 | TX_LED | LED_0402_1005Metric | D4 |
| 1 | RX_LED | LED_0402_1005Metric | D5 |
| 2 | D_Schottky | D_0805_2012Metric | D6, D7 |
| 1 | Bead | R_0402_narrow | FB1 |
| 3 | 1uH | L_0805_narrow | L1, L2, L3 |
| 1 | 2.0A/0.050 DCR | R_0805_2012Metric | L4 |
| 5 | FB | L_0805_narrow | L5, L6, L7, L8, L9 |
| 1 | 1uH | L_Bourns-SRN4018 | L10 |
| 4 | 2.2pF | C_0402_narrow | C1, C2, C3, C4 |
| 38 | 0.22uF | C_0402_narrow | C5, C7, C8, C9, C10, C11, C12, C13 +30 |
| 10 | 10uF | C_0603_narrow | C6, C42, C44, C53, C54, C55, C56, C57 +2 |
| 9 | 22uF | C_0603_narrow | C16, C28, C35, C38, C92, C115, C116, C117 +1 |
| 9 | 4.7uF | C_0402_narrow | C29, C39, C48, C49, C50, C52, C60, C62 +1 |
| 5 | 1.0uF | C_0402_narrow | C51, C59, C61, C64, C101 |
| 1 | 1.0uF | C_0603_narrow | C63 |
| 1 | 0.1uF | C_0603_narrow | C65 |
| 1 | 0.47uF | C_0402_narrow | C66 |
| 2 | 100uF | C_0603_narrow | C67, C68 |
| 3 | 4.7uF | C_0603_narrow | C69, C70, C91 |
| 2 | 1uF | C_0402_narrow | C71, C72 |
| 2 | 4.7u | C_0603_narrow | C73, C78 |
| 10 | 0.1u | C_0402_narrow | C74, C75, C79, C80, C86, C87, C105, C106 +2 |
| 1 | 470p | C_0402_narrow | C76 |
| 1 | 1u | C_0603_narrow | C77 |
| 4 | 10pF | C_0402_narrow | C81, C82, C83, C84 |
| 1 | CP1 | C_0402_narrow | C85 |
| 4 | 18p | C_0402_narrow | C88, C89, C96, C97 |
| 8 | 0.1uF | C_0402_narrow | C90, C93, C100, C103, C109, C111, C112, C113 |
| 2 | 18pF | C_0402_narrow | C98, C99 |
| 1 | 470 | R_0402_narrow | R1 |
| 3 | 10K | R_0402_narrow | R2, R4, R5 |
| 3 | 240 | R_0402_narrow | R3, R6, R7 |
| 3 | 0.02 | R_0402_narrow | R8, R9, R10 |
| 1 | 47 | R_0402_narrow | R11 |
| 3 | DNP | R_0402_narrow | R12, R14, R24 |
| 9 | 4.7K | R_0402_narrow | R13, R16, R17, R33, R36, R37, R38, R39 +1 |
| 7 | 100K | R_0402_narrow | R15, R18, R19, R21, R22, R23, R25 |
| 2 | 0R | R_0402_narrow | R20, R41 |
| 5 | 1K | R_0402_narrow | R26, R46, R56, R57, R58 |
| 4 | 49.9 1% | R_0402_narrow | R27, R28, R29, R30 |
| 1 | 0 | R_0402_narrow | R31 |
| 2 | 150R | R_0402_narrow | R32, R34 |
| 1 | 12.1K | R_0402_narrow | R35 |
| 4 | R | R_0402_narrow | R40, R43, R47, R48 |
| 2 | 1.5K | R_0402_narrow | R42, R51 |
| 1 | 12K | R_0402_narrow | R44 |
| 2 | 1M | R_0402_narrow | R45, R53 |
| 1 | 22.1K | R_0402_narrow | R49 |
| 1 | 47.5K | R_0402_narrow | R50 |
| 1 | 499 | R_0402_narrow | R54 |
| 1 | 2.2M | R_0402_narrow | R55 |
Nanoberry design files
The KiCad project lives in the EnzoRF/nanoberry repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/nano.kicad_pcb
Nanoberry: common questions
How big is the Nanoberry PCB?
The Nanoberry measures 85 × 56 mm and is 1.6 mm thick.
How many components are on the Nanoberry?
229 components, from 80 distinct parts. The full bill of materials is listed on this page.
Where can I download the Nanoberry design files?
From the EnzoRF/nanoberry repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Nanoberry design in my own project?
Yes, under the terms of its GPL-3.0 license, which EnzoRF chose for the repository.
