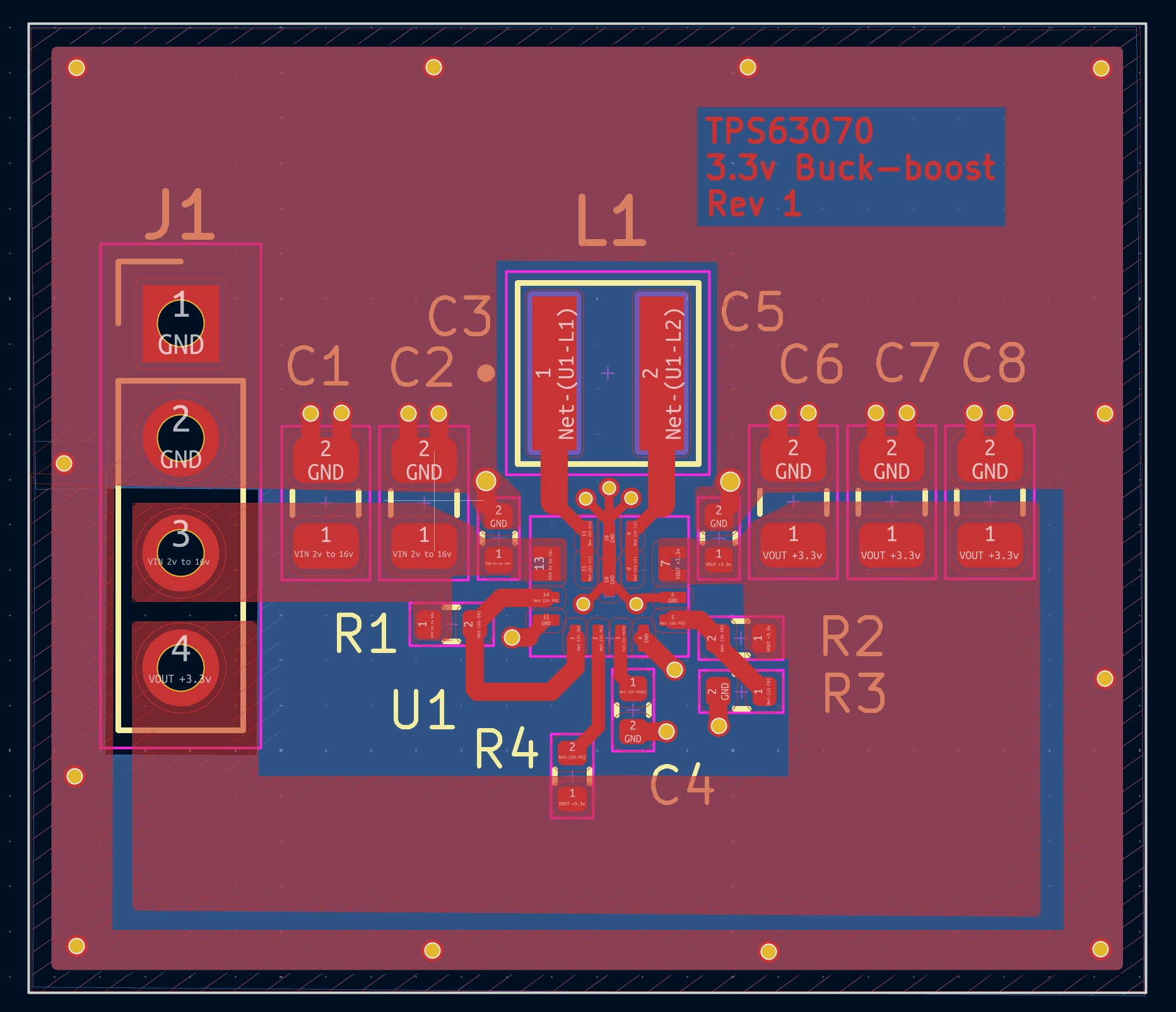

Tps63070-3v3-dev board
About the Tps63070-3v3-dev board
Tps63070-3v3-dev board is an open source PCB design by eshelton328, published on GitHub. It is a 2-layer board measuring 24.7 × 22.9 mm, with 15 components from 11 distinct parts.
Other key parts include the TPS63070. By type, the board carries 8 capacitors, 4 resistors, 1 IC, 1 connector and 1 inductor.
It belongs with the power & battery, test & measurement and dev boards & breakouts designs in this gallery.
From the project
TPS63070 3.3V buck-boost DC-DC converter module — KiCad 9 hardware design with production-ready manufacturing outputs.
Main components on the Tps63070-3v3-dev board
Tps63070-3v3-dev board bill of materials (BOM)
15 components, 11 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS63070 | TPS63070 | U1 |
| 1 | MODULE PINS | PinHeader_1x04_P2.54mm_Vertical | J1 |
| 1 | 1.5µH | IND_XFL4020-152MEC | L1 |
| 2 | 10µF | C_0805_2012Metric | C1, C2 |
| 2 | 10µF | C_0402_1005Metric | C3, C5 |
| 1 | 0.1µF | C_0402_1005Metric | C4 |
| 3 | 22µF | C_0805_2012Metric | C6, C7, C8 |
| 1 | 10kΩ | R_0402_1005Metric | R1 |
| 1 | 470kΩ | R_0402_1005Metric | R2 |
| 1 | 150kΩ | R_0402_1005Metric | R3 |
| 1 | 100kΩ | R_0402_1005Metric | R4 |
Tps63070-3v3-dev board design files
The KiCad project lives in the eshelton328/tps63070-3v3-dev-board repository on GitHub; these links point at the commit this page was built from.
- Layoutgenesis.kicad_pcb
- Schematicgenesis.kicad_sch
- BOMproduction/bom.csv
Tps63070-3v3-dev board: common questions
How big is the Tps63070-3v3-dev board?
The Tps63070-3v3-dev board measures 24.7 × 22.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Tps63070-3v3-dev board?
15 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Tps63070-3v3-dev board design files?
From the eshelton328/tps63070-3v3-dev-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Tps63070-3v3-dev board design in my own project?
The repository has no license, so all rights stay with eshelton328. Use it as a reference, and ask the author before reusing the design.
