ExtendedRangeSupply
About the ExtendedRangeSupply PCB
ExtendedRangeSupply is an open source PCB design by esl-epfl, published on GitHub. It is a 4-layer board measuring 15.3 × 45.8 mm, with 41 components from 28 distinct parts.
Other key parts include the TPS7A9401DSCR, INA212AIDCKR, 24AA02E-OT, ADS1219 and TLV75801PDBV. By type, the board carries 17 resistors, 11 capacitors, 6 ICs, 5 connectors and 1 diode.
From the project
This chewing gum board is designed to be an extended-range voltage supply + current measurement circuit, intended for connection to the main board through the male pin headers to both sides. It can produce a voltage output from 0 to 5 V approximately, with currents of up to 1 A (
This chewing gum board is designed to be an extended-range voltage supply + current measurement circuit, intended for connection to the main board through the male pin headers to both sides. It can produce a voltage output from 0 to 5 V approximately, with currents of up to 1 A (@nominal voltage, check datasheet). # User guide and programmability
This chewing gum board is an adaptation of the CurrentMeasurementSupply chewing gum and as such can be used in a similar way, the main difference being the wider supply voltage range. This Extended Range version, however, supports only a single…

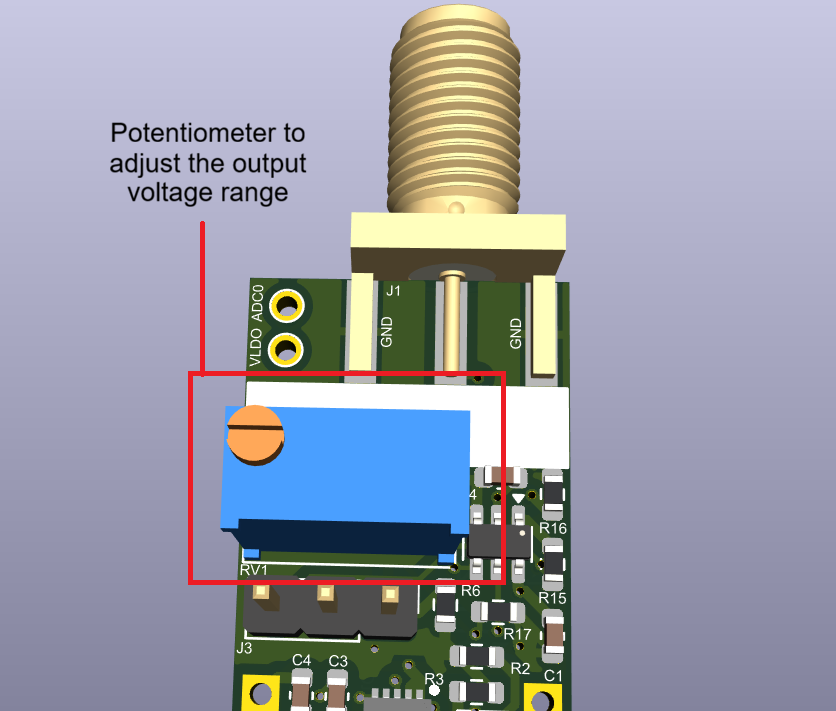

Main components on the ExtendedRangeSupply
ExtendedRangeSupply bill of materials (BOM)
41 components, 28 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS7A9401DSCR | SON50P300X300X80-11N-D | IC1 |
| 1 | INA212AIDCKR | SOT-363_SC-70-6 | IC2 |
| 1 | 24AA02E-OT | SOT-23-5 | U1 |
| 1 | ADS1219 | Texas_RTE0016D_WQFN-16-1EP_3x3mm_P0.5mm_EP0.8x0.8mm_ThermalVias | U2 |
| 1 | TLV75801PDBV | SOT-23-5 | U3 |
| 1 | MCP4726 | TSOT-23-6 | U4 |
| 1 | C1509219 Conn_Coaxial | SMA_Amphenol_132289_EdgeMount | J1 |
| 2 | Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | J2, J3 |
| 1 | Conn_01x02 | PinSocket_1x02_P2.54mm_Vertical | J4 |
| 1 | Conn_02x01 | PinHeader_1x03_P2.54mm_Vertical | J5 |
| 1 | C83694 500K | Potentiometer_Bourns_3296W_Vertical | RV1 |
| 1 | LED | LED_0603_1608Metric | D1 |
| 7 | 0.1U 0.1u | C_0603_1608Metric | C1, C2, C5, C6, C7, C8, C10 |
| 1 | 4.7U 4.7u | C_0603_1608Metric | C3 |
| 2 | 10U 10u | C_0603_1608Metric | C4, C11 |
| 1 | 1u | C_0603_1608Metric | C9 |
| 1 | 10 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
| 1 | 3.3K 3.3k | R_0603_1608Metric | R2 |
| 3 | 10K 10k | R_0603_1608Metric | R3, R7, R9 |
| 3 | 20K 20k | R_0603_1608Metric | R4, R5, R8 |
Show 8 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 36K 36k | R_0603_1608Metric | R6 |
| 1 | 100K 100k | R_0603_1608Metric | R10 |
| 1 | 10 | R_2010_5025Metric_Pad1.40x2.65mm_HandSolder | R11 |
| 1 | 10 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R12 |
| 1 | 1M | R_0402_1005Metric | R13 |
| 1 | 10 | R_2512_6332Metric_Pad1.40x3.35mm_HandSolder | R14 |
| 2 | NC | R_0603_1608Metric | R15, R16 |
| 1 | 100 | R_0603_1608Metric | R17 |
ExtendedRangeSupply design files
The KiCad project lives in the esl-epfl/CHEEP-boards repository on GitHub; these links point at the commit this page was built from.
ExtendedRangeSupply: common questions
How big is the ExtendedRangeSupply PCB?
The ExtendedRangeSupply measures 15.3 × 45.8 mm, has 4 copper layers and is 1.6062 mm thick.
How many components are on the ExtendedRangeSupply?
41 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ExtendedRangeSupply design files?
From the esl-epfl/CHEEP-boards repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ExtendedRangeSupply design in my own project?
The repository has no license, so all rights stay with esl-epfl. Use it as a reference, and ask the author before reusing the design.
