execuc·u2if·board/pico-dev-v2/pico-dev.kicad_pcb

Pico dev PCB layout, top view — open source RP2040/RP2350 board by execuc

About the Pico dev PCB

Pico dev is an open source RP2040/RP2350 PCB design by execuc, published on GitHub under the Custom license license. It is a 2-layer board measuring 99.1 × 76.2 mm, with 41 components from 28 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. Other key parts include the SSD1306_I2C. By type, the board carries 21 connectors, 6 resistors, 5 capacitors, 3 switches, 2 ICs and 2 diodes.

It belongs with the usb & debug tools designs in this gallery.

From the project

USB to interfaces implementing MicroPython "machine" module functionalities on a computer.

There are some kicad projects of a PCB with some I/O but mostly headers. Caution: I am not an electronic engineer, check schematics and PCB before using it !

Zipped gerber file is available: Gerber file

There are two jumpers to wire D and E signal in case of 1/16 and 1/32 panels.

Zipped gerber file is available: Gerber file

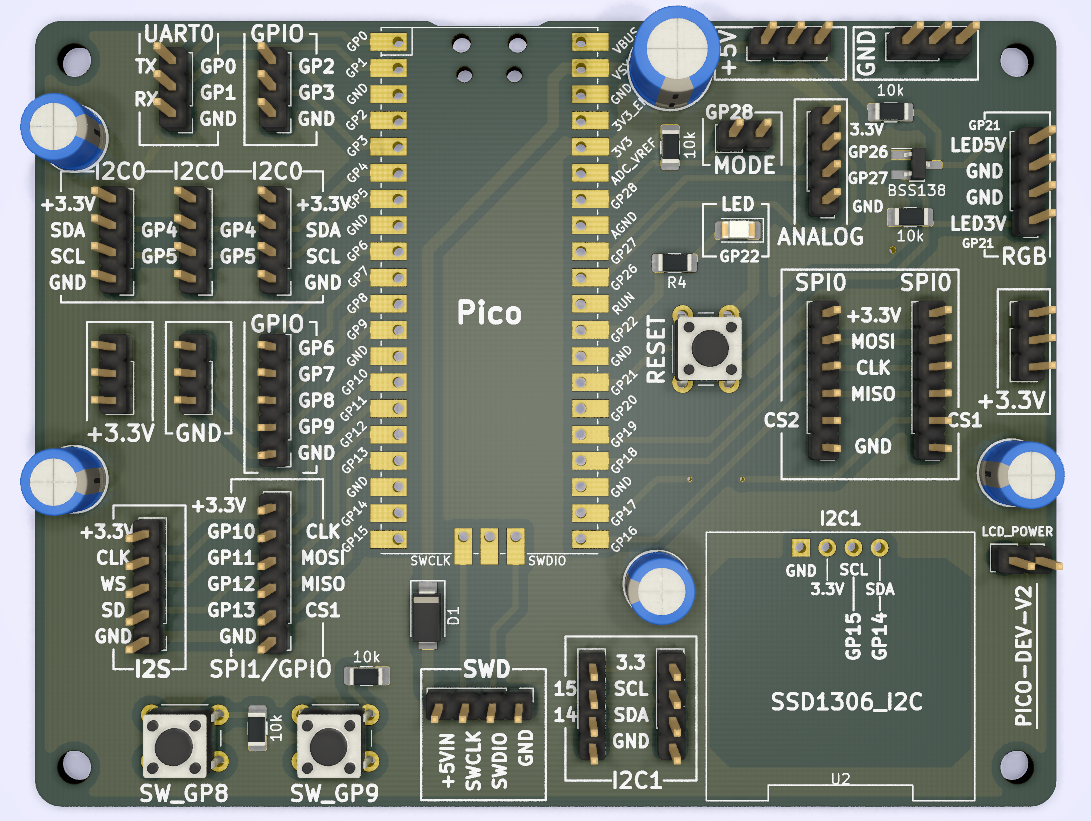

Pico dev, from the project README
From the project README

Main components on the Pico dev

PicoSSD1306_I2C

Pico dev bill of materials (BOM)

41 components, 28 distinct parts.

QtyPartRefs
1
Pico
U1
1
SSD1306_I2C
U2
1
BSS138
Q1
1
MODE
J1
1
SWD
J2
1
ANALOG
J3
3
I2C0
J5, J6, J7
1
UART0
J8
2
SPI0
J9, J10
1
SPI1/GPIO
J12
2
+3.3V
J13, J17
1
+5V
J14
2
GND
J15, J16
1
GPIO
J18
1
I2S
J19
1
GPIO
J20
1
RGB
J21
2
I2C1
J22, J23
1
LCD_POWER
JP1
1
RESET
SW1
Show 8 more
QtyPartRefs
1
SW_GP9
SW2
1
SW_GP8
SW3
1
SS14
D1
1
LED
D2
1
CP
C1
4
CP
C2, C3, C4, C5
5
10k
R1, R2, R3, R5, R6
1
470
R4

Pico dev design files

The KiCad project lives in the execuc/u2if repository on GitHub; these links point at the commit this page was built from.

Pico dev: common questions

What microcontroller does the Pico dev use?

The Pico dev is built around the Pico, from the RP2040/RP2350 family.

How big is the Pico dev PCB?

The Pico dev measures 99.1 × 76.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pico dev?

41 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pico dev design files?

From the execuc/u2if repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Pico dev design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Pico dev without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
