About the ARES FC PCB
ARES FC is an open source STM32 PCB design by explosion33, published on GitHub under the MIT license. It is a 2-layer board measuring 57.2 × 57.2 mm, with 62 components from 33 distinct parts.
Its main chip is the STM32F401CCU6, from the STM32 family. Other key parts include the AMS1117-3.3, BMP280, BNO055, W25Q32JVSS and PA1616S. By type, the board carries 23 capacitors, 16 resistors, 8 connectors, 6 ICs, 4 diodes and 2 crystals.
From the project

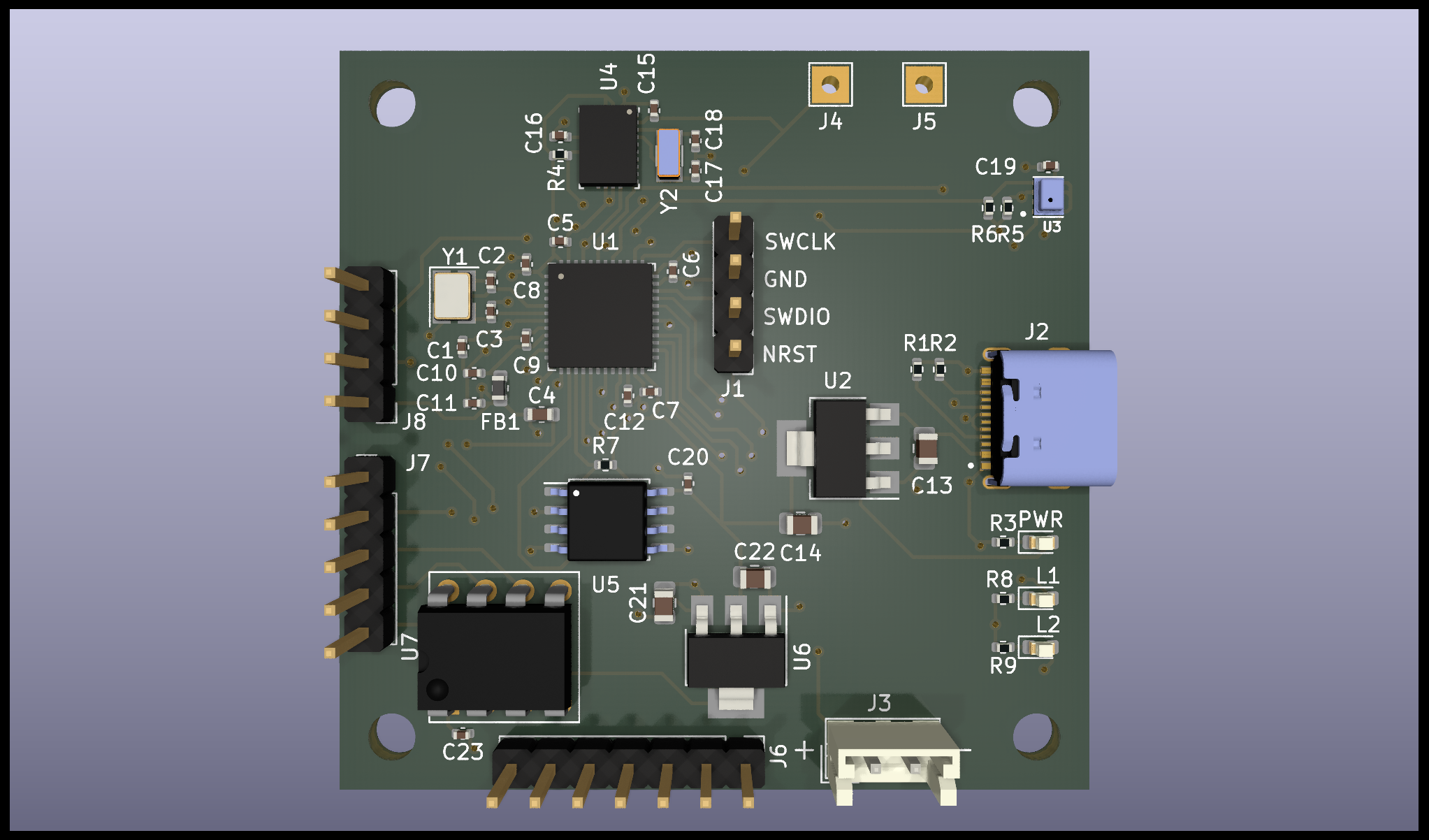

SARP Payload ARES 2024-2025

Main components on the ARES FC
ARES FC bill of materials (BOM)
62 components, 33 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F401CCU6 | QFN-48-1EP_7x7mm_P0.5mm_EP5.6x5.6mm | U1 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U2 |
| 1 | BMP280 | XDCR_BMP280 | U3 |
| 1 | BNO055 | LGA-28_5.2x3.8mm_P0.5mm | U4 |
| 1 | W25Q32JVSS | SOIC-8_5.23x5.23mm_P1.27mm | U5 |
| 1 | PA1616S | XCVR_CD-PA1616D | U6 |
| 1 | 16MHZ 16MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | 32.768KHZ 32.768kHz | Crystal_SMD_3215-2Pin_3.2x1.5mm | Y2 |
| 1 | SWD | PinHeader_1x04_P2.54mm_Vertical | J1 |
| 1 | TYPE-C-31-M-12 | HRO_TYPE-C-31-M-12 | J2 |
| 1 | FC_M/P | Molex_200528-0080_1x08-1MP_P1.00mm_Horizontal | J3 |
| 1 | 5V | TestPoint_THTPad_2.5x2.5mm_Drill1.2mm | J4 |
| 1 | GND | TestPoint_THTPad_2.5x2.5mm_Drill1.2mm | J5 |
| 1 | FC_RF | Molex_200528-0080_1x08-1MP_P1.00mm_Horizontal | J6 |
| 2 | CONN_01X04_PIN Conn_01x04_Pin | JST_SH_BM04B-SRSS-TB_1x04-1MP_P1.00mm_Vertical | J7, J8 |
| 1 | Antenna | U.FL_Molex_MCRF_73412-0110_Vertical | AE1 |
| 4 | LED | LED_0603_1608Metric | D1, D2, D3, D4 |
| 1 | 120R | L_0603_1608Metric | FB1 |
| 1 | 600R | L_0603_1608Metric | FB2 |
| 1 | 100nF | C_0402_1005Metric | C1 |
Show 13 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 10PF 10pF | C_0402_1005Metric | C2, C3 |
| 1 | 10UF 10uF | C_0603_1608Metric | C4 |
| 10 | 100NF 100nF | C_0402_1005Metric | C5, C6, C7, C8, C15, C16, C19, C20 +2 |
| 1 | 10NF 10nF | C_0402_1005Metric | C9 |
| 3 | 1UF 1uF | C_0402_1005Metric | C10, C11, C21 |
| 1 | 2.2UF 2.2uF | C_0402_1005Metric | C12 |
| 2 | 22UF 22uF | C_0805_2012Metric | C13, C14 |
| 2 | 22PF 22pF | C_0402_1005Metric | C17, C18 |
| 2 | 5.11K 5.11k | R_0402_1005Metric | R1, R2 |
| 3 | 1k | R_0402_1005Metric | R3, R8, R9 |
| 4 | 10K 10k | R_0402_1005Metric | R4, R5, R7, R14 |
| 3 | 470 | R_0402_1005Metric | R6, R10, R11 |
| 4 | 4.7K 4.7k | R_0402_1005Metric | R12, R13, R15, R16 |
ARES FC design files
The KiCad project lives in the explosion33/ARES repository on GitHub; these links point at the commit this page was built from.
ARES FC: common questions
What microcontroller does the ARES FC use?
The ARES FC is built around the STM32F401CCU6, from the STM32 family.
How big is the ARES FC PCB?
The ARES FC measures 57.2 × 57.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ARES FC?
62 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ARES FC design files?
From the explosion33/ARES repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ARES FC design in my own project?
Yes, under the terms of its MIT license, which explosion33 chose for the repository.
Can I test firmware for the ARES FC without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
