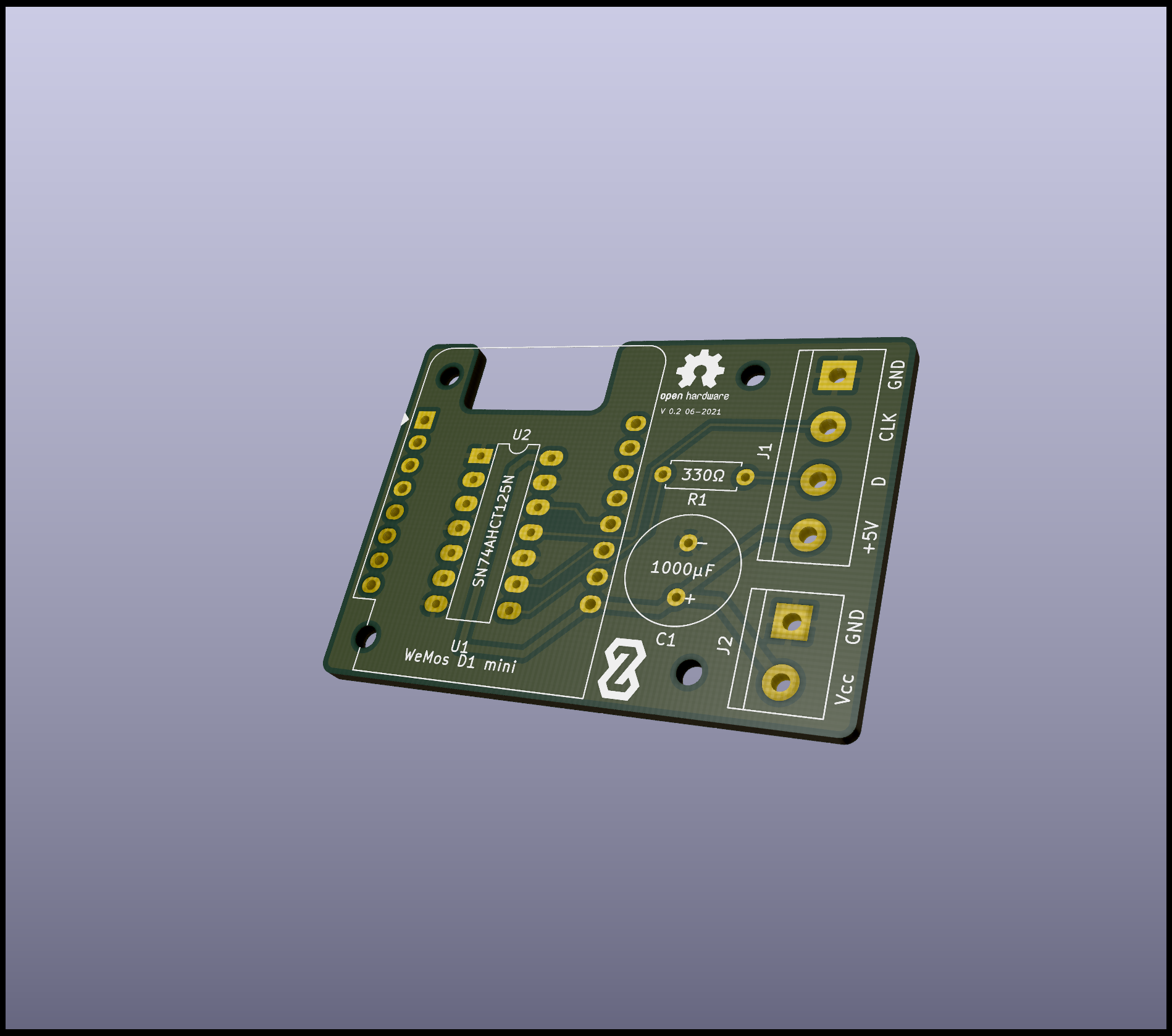

WLED PCB D1 Mini layout, top view — open source ESP8266 board by f2daz
Simulate this board

About the WLED PCB D1 Mini

WLED PCB D1 Mini is an open source ESP8266 PCB design by f2daz, published on GitHub under the MIT license. It is a 2-layer board measuring 49.5 × 35.6 mm, with 6 components from 6 distinct parts.

Its main chip is the WeMos D1 mini, from the ESP8266 family. Other key parts include the SN74AHCT125N. By type, the board carries 2 ICs, 2 connectors, 1 capacitor and 1 resistor.

From the project

PCB for WLED with WeMos D1 Mini and SN74AHCT125N level shifter

- C1: Capacitor Radial 1000μF - U1: WeMos D1 Mini - U2: level shifter SN74AHCT125N - R1: Resistor 330Ω

- GPIO3 = CLK line of addressable strip - GPIO4 = Data line of addressable strip

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the…

WLED PCB D1 Mini, from the project README
From the project README

Main components on the WLED PCB D1 Mini

WeMos D1 miniSN74AHCT125N

WLED PCB D1 Mini bill of materials (BOM)

6 components, 6 distinct parts.

QtyPartRefs
1
WeMos D1 mini
U1
1
SN74AHCT125N
U2
1
Screw_Terminal_01x04
J1
1
Screw_Terminal_01x02
J2
1
1000µF
C1
1
330Ω
R1

WLED PCB D1 Mini design files

The KiCad project lives in the f2daz/WLED_PCB_D1_Mini repository on GitHub; these links point at the commit this page was built from.

WLED PCB D1 Mini: common questions

What microcontroller does the WLED PCB D1 Mini use?

The WLED PCB D1 Mini is built around the WeMos D1 mini, from the ESP8266 family.

How big is the WLED PCB D1 Mini?

The WLED PCB D1 Mini measures 49.5 × 35.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the WLED PCB D1 Mini?

6 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the WLED PCB D1 Mini design files?

From the f2daz/WLED_PCB_D1_Mini repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the WLED PCB D1 Mini design in my own project?

Yes, under the terms of its MIT license, which f2daz chose for the repository.

Can I test firmware for the WLED PCB D1 Mini without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
