D4V2Charger
About the D4V2Charger PCB
D4V2Charger is an open source PCB design by FabioTavernini, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 20.9 × 20.3 mm, with 15 components from 11 distinct parts.
Other key parts include the BQ25185DLHR. By type, the board carries 5 resistors, 3 diodes, 3 capacitors, 1 IC, 1 connector and 1 fuse.
It belongs with the power & battery designs in this gallery.
From the project
WIP + POC usb Charging for Emisar D4v2 Flashlight
A work-in-progress proof of concept for adding built-in USB-C charging to the Emisar D4v2 flashlight, using a pogo-pin connector in place of removing the cell to charge it externally.

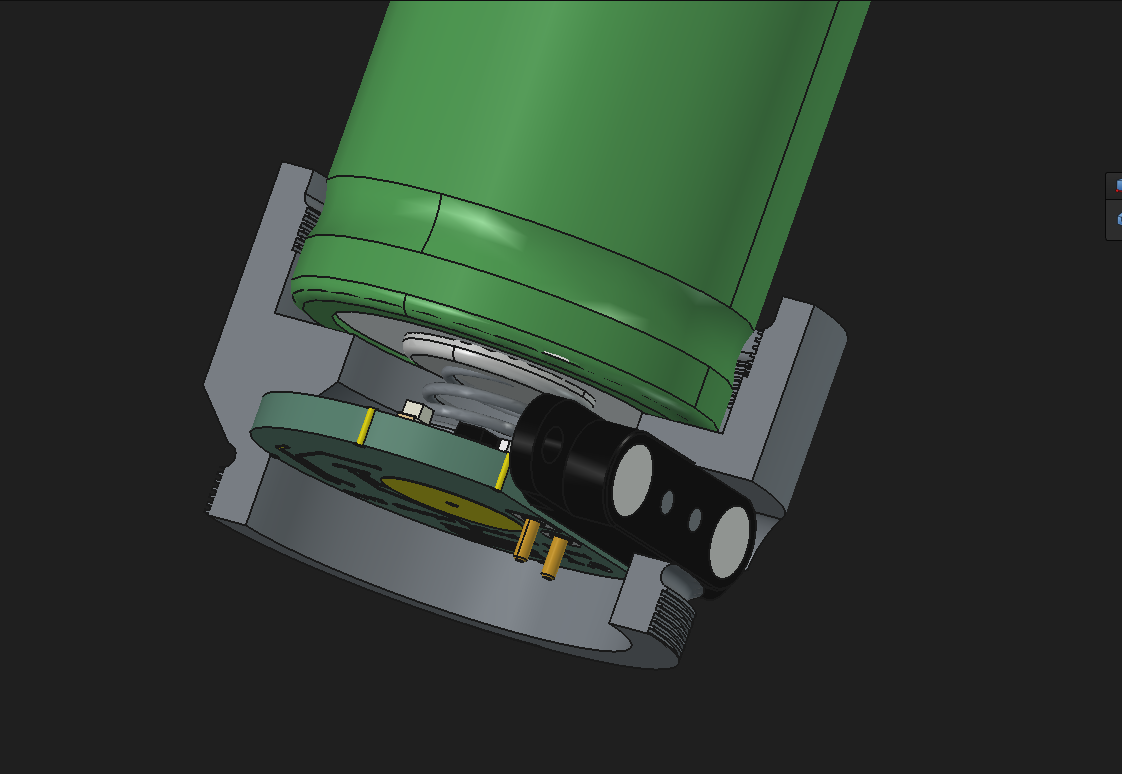

The charger PCB is a disc that sits sandwiched between the flashlight body tube and the head, in the same joint where they normally screw together. A spring contact on the board presses against the cell's positive terminal, while the pogo-pin connector protrudes to the side to bring in USB-C power through the body wall.
Main components on the D4V2Charger
D4V2Charger bill of materials (BOM)
15 components, 11 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BQ25185DLHR | Texas_DLH0010A_WSON-10-1EP_2.2x2mm_P0.4mm_EP0.9x1.5mm | U1 |
| 1 | 5PCS Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Vertical | J1 |
| 1 | 1A hold, 2A trip | 0402L100SLKR | F1 |
| 1 | Thermistor | THERM_NTCG103JF103FT1 | TH1 |
| 2 | LED | LED_0603_1608Metric | D1, D2 |
| 1 | 60V, 1A cont. | DIO_PMEG6010CEJF | D3 |
| 2 | 4.7µF | C_0402_1005Metric | C1, C3 |
| 1 | 50PCS 22µF | C_0402_1005Metric | C2 |
| 3 | 100PCS 1kΩ | R_0402_1005Metric | R3, R4, R5 |
| 1 | 18kΩ | R_0402_1005Metric | R6 |
| 1 | 390Ω | R_0402_1005Metric | R7 |
D4V2Charger design files
The KiCad project lives in the FabioTavernini/D4V2Charger repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/D4v2Charger.kicad_pcb
- Schematicpcb/D4v2Charger.kicad_sch
- BOMBOM.csv
D4V2Charger: common questions
How big is the D4V2Charger PCB?
The D4V2Charger measures 20.9 × 20.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the D4V2Charger?
15 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the D4V2Charger design files?
From the FabioTavernini/D4V2Charger repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the D4V2Charger design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which FabioTavernini chose for the repository.
