ADXL343-Eval-Board

fatihdedeic·ADXL343-Eval-Board·KiCAD_Project_Files/ADXL343_Accelerometer_Sensor_Board.kicad_pcb

ADXL343-Eval-Board layout, top view — open source board by fatihdedeic

About the ADXL343-Eval-Board

ADXL343-Eval-Board is an open source PCB design by fatihdedeic, published on GitHub. It is a 2-layer board measuring 10.5 × 15.5 mm, with 5 components from 4 distinct parts.

Other key parts include the ADXL343. By type, the board carries 2 resistors, 1 IC, 1 connector and 1 capacitor.

It belongs with the dev boards & breakouts, sensors and test & measurement designs in this gallery.

From the project

Small footprint I2C protocol evaluation board designed for ADXL343 series accelerometers.

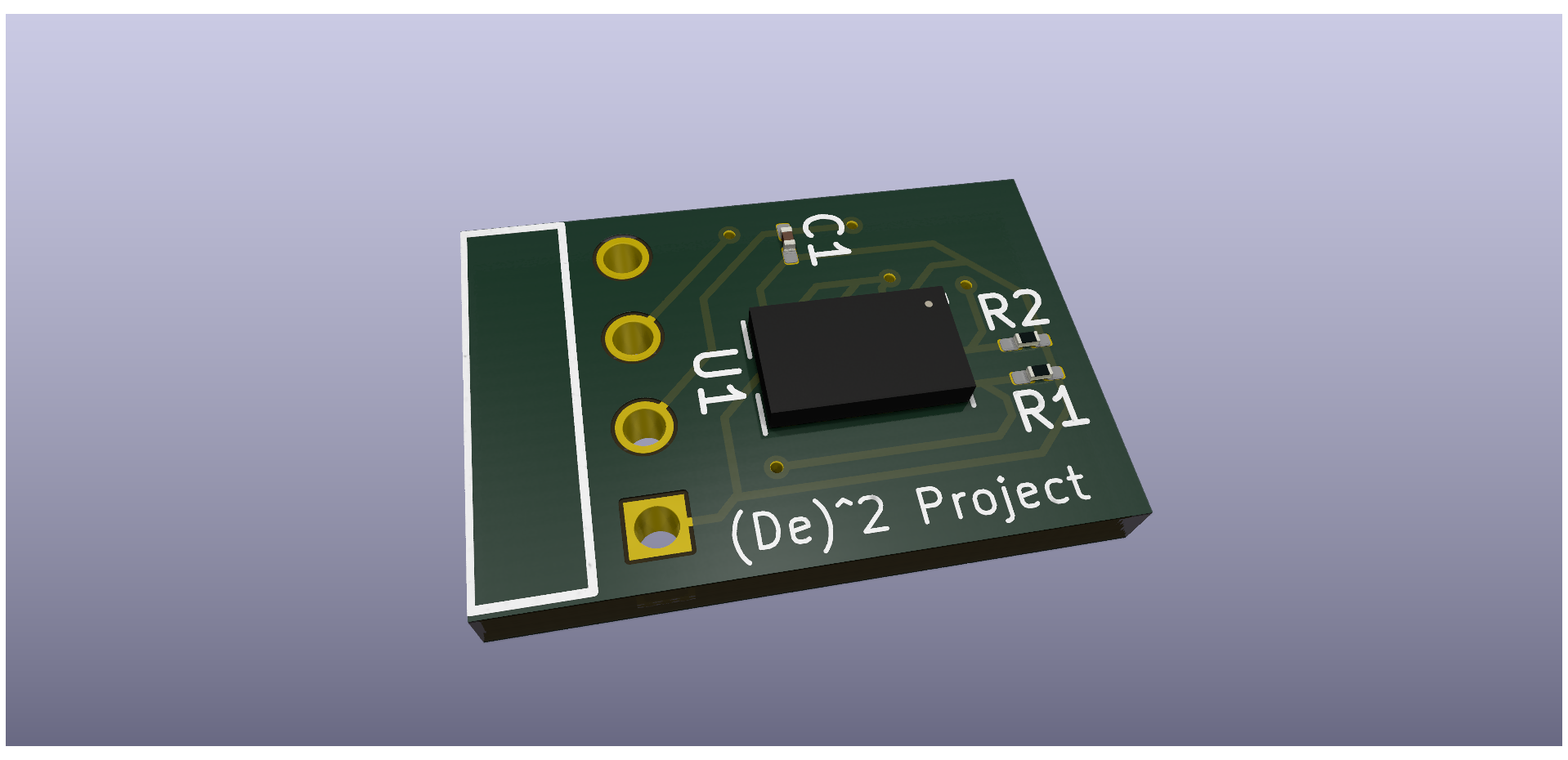

ADXL343-Eval-Board, from the project README
From the project README

Main components on the ADXL343-Eval-Board

ADXL343

ADXL343-Eval-Board bill of materials (BOM)

5 components, 4 distinct parts.

QtyPartRefs
1
ADXL343
U1
1
HTSW-104-08-G-S-RA
J1
1
C
C1
2
10k
R1, R2

ADXL343-Eval-Board design files

The KiCad project lives in the fatihdedeic/ADXL343-Eval-Board repository on GitHub; these links point at the commit this page was built from.

ADXL343-Eval-Board: common questions

How big is the ADXL343-Eval-Board?

The ADXL343-Eval-Board measures 10.5 × 15.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ADXL343-Eval-Board?

5 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the ADXL343-Eval-Board design files?

From the fatihdedeic/ADXL343-Eval-Board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ADXL343-Eval-Board design in my own project?

The repository has no license, so all rights stay with fatihdedeic. Use it as a reference, and ask the author before reusing the design.
