AetherLink PCB layout, top view — open source ESP32 board by FBIopeningUPP

About the AetherLink PCB

AetherLink is an open source ESP32 PCB design by FBIopeningUPP, published on GitHub. It is a 4-layer board measuring 27 × 43 mm, with 37 components from 21 distinct parts.

Its main chip is the ESP32-C3-WROOM-02U, from the ESP32 family. Other key parts include the BQ7695202PFBR, MIC5219-3.3YM5, HCZZ0520-13 and ZXTR2012P5-13. By type, the board carries 13 capacitors, 13 resistors, 6 ICs and 5 LEDs.

It belongs with the power & battery and iot & wireless designs in this gallery.

From the project

Battery Monitoring System

AetherLink is a open-source, Upto 12-cell BMS telemetry node built around the ESP32-C3 and the Texas Instruments BQ76940 Analog Front-End (AFE). It read invidual cell voltage, it also calculates ur pack health and it transmits all the data through WebBle dashboard in your browser

Supports upto 12s lithium battery packs Individual cell voltage monitoring Pack Voltage monitoring Cell balancing support I2C communication between MCU and BQ76940 Compact PCB Layout * Open - source hardware and firmware

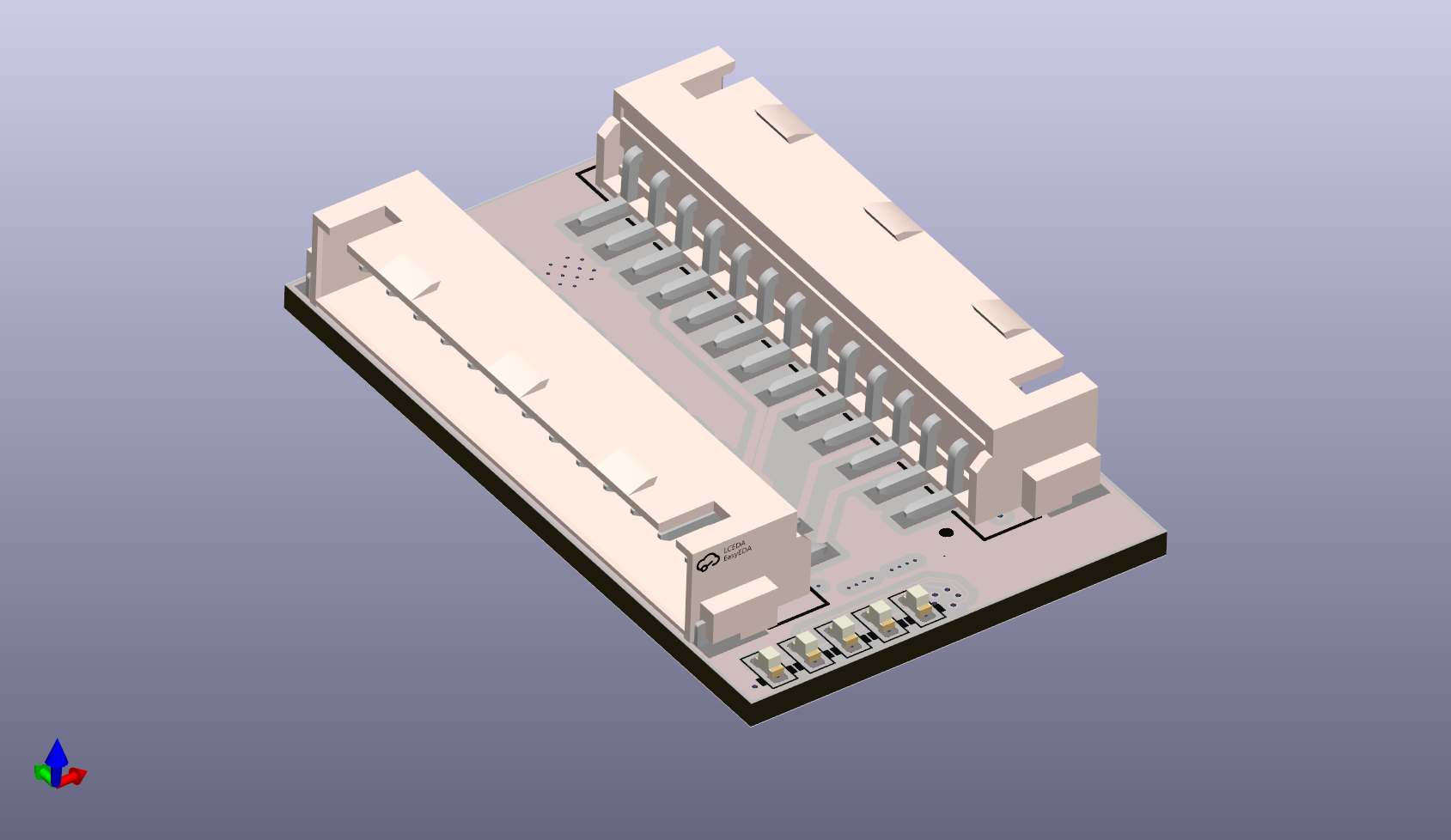

AetherLink, from the project README
From the project README

Main components on the AetherLink

BQ7695202PFBRMIC5219-3.3YM5HCZZ0520-13ZXTR2012P5-13ESP32-C3-WROOM-02U

AetherLink bill of materials (BOM)

37 components, 21 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BQ7695202PFBR
TI(德州仪器)
U101
1
MIC5219-3.3YM5
U102
1
HCZZ0520-13
INPUT
HC(虹成电子)
U103
1
HCZZ0520-13
OUTPUT
HC(虹成电子)
U104
1
ZXTR2012P5-13
DIODES(美台)
U106
1
ESP32-C3-WROOM-02U
U107
1
LED25
LED101
1
LED50
LED102
1
LED75
LED103
1
LED100
LED104
1
STATUS
LED105
5
1UF
1uF
C111, C112, C113, C121, C126
1
47NF
47nF
C114
2
1UF
1uF
C118, C119
4
0.1UF
0.1uF
C120, C122, C123, C124
1
10NF
10nF
C125
5
75
R101, R102, R103, R104, R105
1
100R
R106
2
4.7K
4.7k
R107, R108
2
10K
10k
R109, R110
Show 1 more
QtyPartRefs
3
100R
RN101, RN102, RN103

AetherLink design files

The KiCad project lives in the FBIopeningUPP/AetherLink repository on GitHub; these links point at the commit this page was built from.

AetherLink: common questions

What microcontroller does the AetherLink use?

The AetherLink is built around the ESP32-C3-WROOM-02U, from the ESP32 family.

How big is the AetherLink PCB?

The AetherLink measures 27 × 43 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the AetherLink?

37 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the AetherLink design files?

From the FBIopeningUPP/AetherLink repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the AetherLink design in my own project?

The repository has no license, so all rights stay with FBIopeningUPP. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the AetherLink without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
