LeanLine PCB layout, top view — open source RP2040/RP2350 board by FBIopeningUPP

About the LeanLine PCB

LeanLine is an open source RP2040/RP2350 PCB design by FBIopeningUPP, published on GitHub. It is a 2-layer board measuring 39.4 × 42.5 mm, with 49 components from 19 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q128JVP, ICM-42688-P, MIC5219-3.3YM5, AMS1117-5.0 and S4B-XH-SM4-TB(LF)(SN). By type, the board carries 31 capacitors, 8 resistors, 7 ICs, 1 crystal and 1 connector.

It belongs with the sensors designs in this gallery.

From the project

A.T.L.A.S. is a bare-metal system it revolves around track-day with ur superbikes. It calculates ur lean angles, track positioning using GPS, and lap times at a frequency of 100Hz, it logs the data directly to your MicroSD card and visualizes the daya in custom PyQt5 Dashboard.

A.T.L.A.S. is a bare-metal system it revolves around track-day with ur superbikes. It calculates ur lean angles, track positioning using GPS, and lap times at a frequency of 100Hz, it logs the data directly to your MicroSD card and visualizes the daya in custom PyQt5 Dashboard.

1. The parts can be sourced by providing the BoM CSV file to lcsc from where u can order the parts. 2. The PCB can be ordered through JLCPCB with a stencil for precise soldering. 3. Soldering can be done using low temp solder paste while using the stencil to create a perfect solder layer

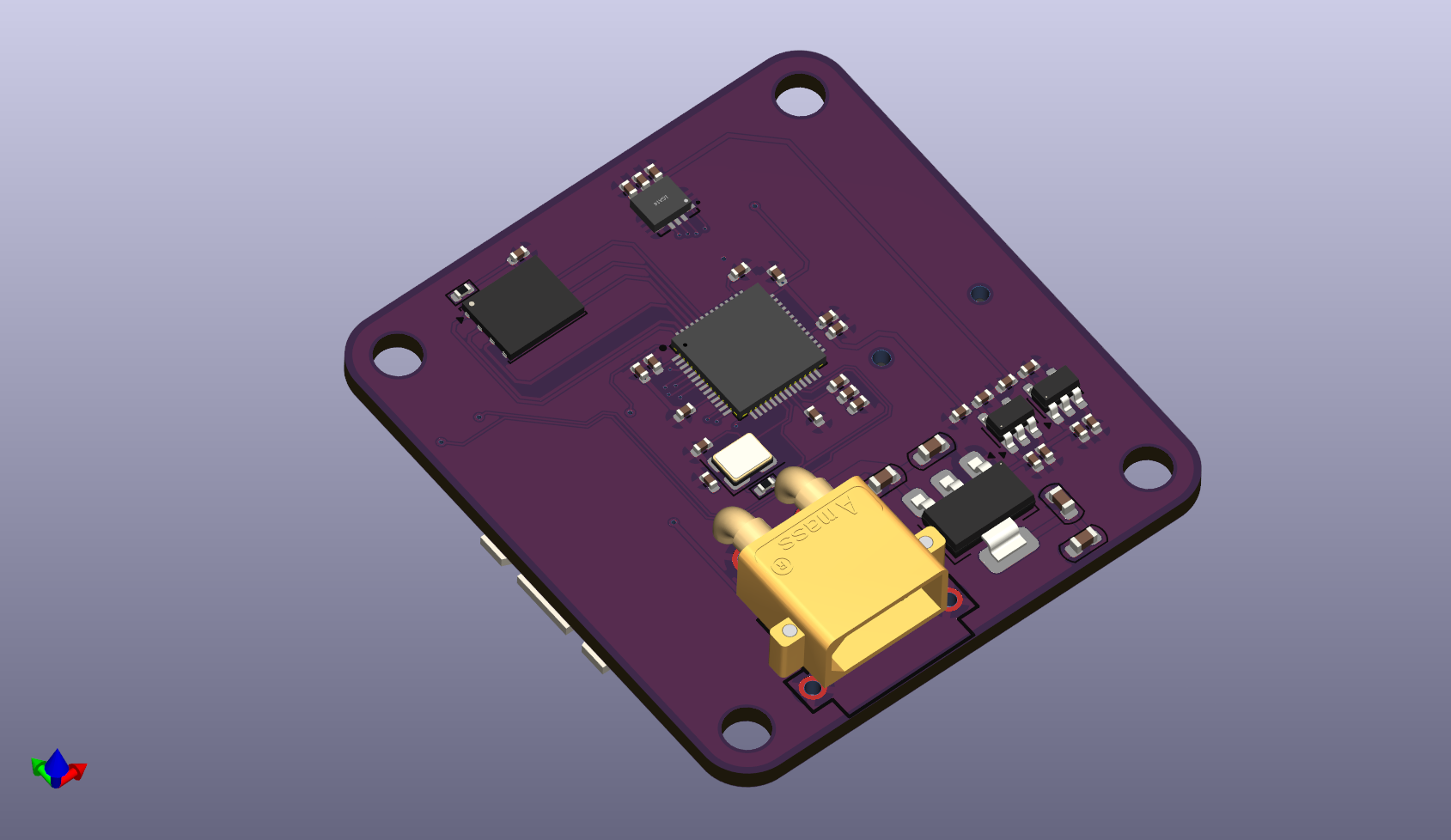

LeanLine, from the project README
From the project README

Main components on the LeanLine

RP2040W25Q128JVPICM-42688-PMIC5219-3.3YM5AMS1117-5.0S4B-XH-SM4-TB(LF)(SN)

LeanLine bill of materials (BOM)

49 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2040
Raspberry Pi(树莓派)
U101
1
W25Q128JVP
U102
1
ICM-42688-P
U103
2
MIC5219-3.3YM5
U104, U105
1
AMS1117-5.0
U106
1
S4B-XH-SM4-TB(LF)(SN)
S4B-XH-SM4-TB-
JST
U107
1
12MHZ
12MHz
Y101
1
XT30PW-M
CN101
1
TF PUSH
SHOU HAN(首韩)
Card101
2
15PF
15pF
C101, C102
16
100NF
100nF
C103, C105, C106, C107, C108, C109, C110, C111 +8
7
1UF
1uF
C104, C114, C116, C118, C120, C122, C127
1
2.2UF
2.2uF
C124
1
10NF
10nF
C125
2
100NF
100nF
C128, C132
2
1UF
1uF
C129, C133
1
1k
R101
1
DNF
R102
6
10K
10k
R104, R105, R106, R107, R108, R109

LeanLine design files

The KiCad project lives in the FBIopeningUPP/LeanLine repository on GitHub; these links point at the commit this page was built from.

LeanLine: common questions

What microcontroller does the LeanLine use?

The LeanLine is built around the RP2040, from the RP2040/RP2350 family.

How big is the LeanLine PCB?

The LeanLine measures 39.4 × 42.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LeanLine?

49 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the LeanLine design files?

From the FBIopeningUPP/LeanLine repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the LeanLine design in my own project?

The repository has no license, so all rights stay with FBIopeningUPP. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the LeanLine without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
