About the MX-Break-In-Machine PCB
MX-Break-In-Machine is an open source RP2040/RP2350 PCB design by FinnKrass, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 43.1 × 37.7 mm, with 63 components from 28 distinct parts.
Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the SDB628 and W25Q16JVUXIQ. By type, the board carries 26 capacitors, 21 resistors, 5 diodes, 3 ICs, 3 connectors and 2 switches.
From the project

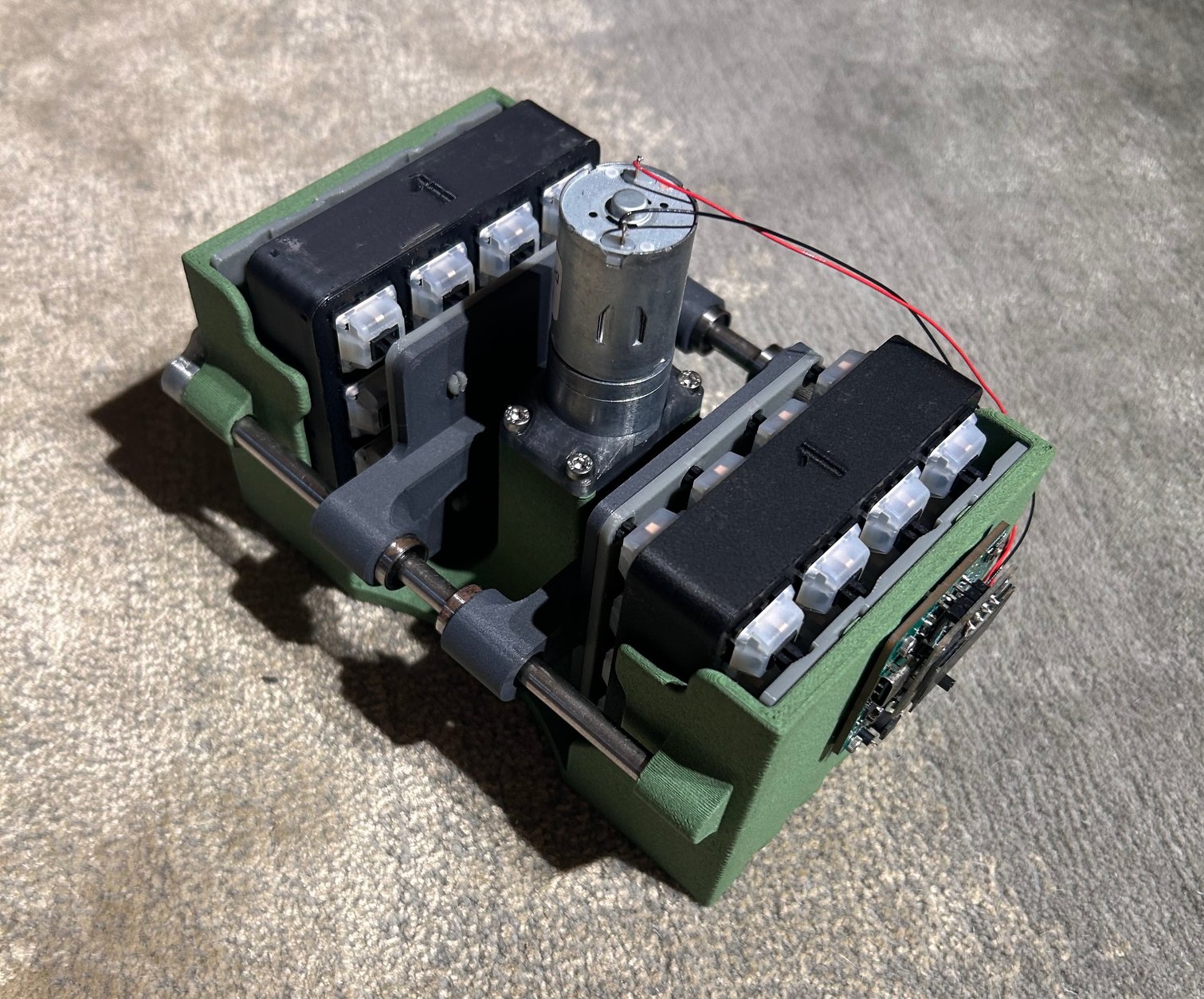

64 Slot Break In Machine for MX Style Switches
A unique take on the switch break in machine intended to streamline the process and maximise outcomes. Useful for those who want to improve the sound and feeling of MX style keyboard switches that come scratchy/inconsistent from the factory.
- Bill of Materials - Hardware.md#bill-of-materials-hardware)
This project started when I first fell in love with Cherry MX Black's. I wanted a way to break in the switches for all of my builds, but had absolutely no understanding of electronics and CAD at the time, so took it upon myself to learn how to use Fusion360 and eventually design a circuit.…

Main components on the MX-Break-In-Machine
MX-Break-In-Machine bill of materials (BOM)
63 components, 28 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SDB628 | SOT-23-6 | U1 |
| 1 | W25Q16JVUXIQ | USON-8_2x3x0.6mm | U2 |
| 1 | RP2040 | RP2040-QFN-56 | U5 |
| 1 | SSM3J340R | SOT-23-3F | Q1 |
| 1 | CSTNE12M0GH5L000R0 12MHz | OSC_CSTNE12M0G520000R0 | Y2 |
| 2 | 78171-0002 | Molex_Pico-EZmate_78171-0002_1x02 | J4, J7 |
| 1 | TYPE-C-31-M-12 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J6 |
| 1 | TS-1187A-B-A-B BTN_UR | SW_SPST_TL3342 | SW3 |
| 1 | TS-1187A-B-A-B BTN_R | SW_SPST_TL3342 | SW4 |
| 1 | BZX84C22-7-F | SOT-23-3 | D1 |
| 2 | 1N4148 | D_SOD-323F | D3, D4 |
| 1 | SS34B | D_SMB | D5 |
| 1 | PUSB3FS4Z | DFN2510A-10 | D6 |
| 1 | 74438356220 22uH | TDK-VLS5045-5x5.3x4.5 | L1 |
| 6 | 22UF 22uF | C_0805_2012Metric | C1, C3, C6, C20, C21, C22 |
| 1 | 1UF 1uF | C_0805_2012Metric | C2 |
| 2 | 22UF 22uF | C_0603_1608Metric | C4, C5 |
| 5 | 1UF 1uF | C_0603_1608Metric | C7, C17, C23, C25, C26 |
| 12 | 0.1UF 0.1uF | C_0402_1005Metric | C8, C9, C10, C11, C12, C13, C14, C15 +4 |
| 1 | 29K | R_0805_2012Metric | R1 |
Show 8 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 7 | 10K 10k | R_0603_1608Metric | R2, R3, R4, R6, R9, R10, R17 |
| 2 | 1k | R_0402_1005Metric | R5, R8 |
| 1 | 39K | R_0805_2012Metric | R7 |
| 5 | 10K 5K1 | R_0603_1608Metric | R11, R12, R13, R20, R21 |
| 2 | 27R | R_0603_1608Metric | R14, R15 |
| 1 | 100R | R_0603_1608Metric | R16 |
| 1 | 3K8 | R_0603_1608Metric | R18 |
| 1 | 10M 10m | R_0603_1608Metric | R19 |
MX-Break-In-Machine design files
The KiCad project lives in the FinnKrass/MX-Break-In-Machine repository on GitHub; these links point at the commit this page was built from.
MX-Break-In-Machine: common questions
What microcontroller does the MX-Break-In-Machine use?
The MX-Break-In-Machine is built around the RP2040, from the RP2040/RP2350 family.
How big is the MX-Break-In-Machine PCB?
The MX-Break-In-Machine measures 43.1 × 37.7 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the MX-Break-In-Machine?
63 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the MX-Break-In-Machine design files?
From the FinnKrass/MX-Break-In-Machine repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the MX-Break-In-Machine design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which FinnKrass chose for the repository.
Can I test firmware for the MX-Break-In-Machine without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
