Farlock3-hw PCB layout, top view — open source Nordic nRF board by frazieje

About the Farlock3-hw PCB

Farlock3-hw is an open source Nordic nRF PCB design by frazieje, published on GitHub. It is a 2-layer board measuring 58 × 22.5 mm, with 43 components from 26 distinct parts.

Its main chip is the MDBT50Q, from the Nordic nRF family. Other key parts include the MX25R6435FZNIL0, TB6612FNG and AP2112K-3.3. By type, the board carries 17 capacitors, 10 resistors, 6 connectors, 4 ICs, 4 diodes and 1 crystal.

It belongs with the iot & wireless designs in this gallery.

From the project

Hardware for the FARLock v3 Matter door lock

Farlock3 is the 3rd generation of the FAR Door Lock. This version introduces several major changes over previous revisions.

This repository holds the KiCad schematic, PCB, BOM, and production files (gerber).

New PCB design and layout nrf52840 SoC (MDBTQ50-U1MV2) Integrated h-bridge motor controller Integrated switch and LED electronics 64Mb external flash storage for Matter DFU USB micro B port for power, shell access, etc USB ESD protection 3.3v voltage regulator * Matter/ZephyrRTOS/OpenThread ready

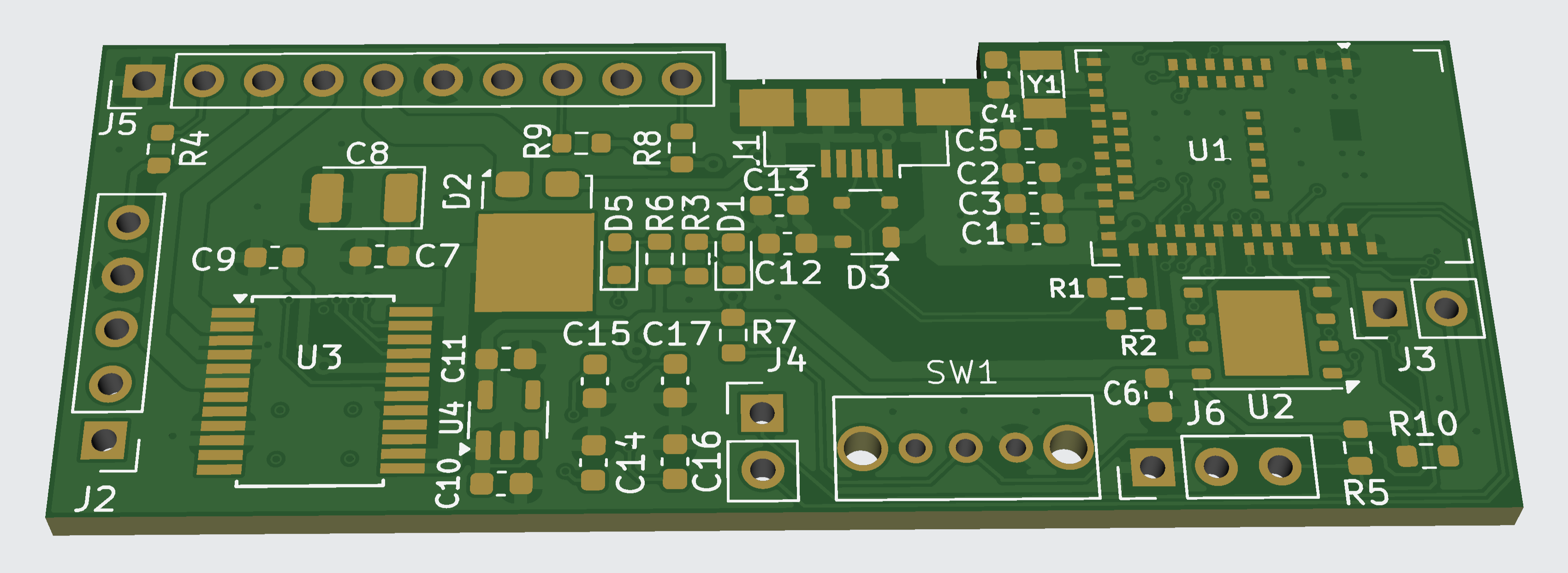

Farlock3-hw, from the project README
From the project README

Main components on the Farlock3-hw

MDBT50QMX25R6435FZNIL0TB6612FNGAP2112K-3.3

Farlock3-hw bill of materials (BOM)

43 components, 26 distinct parts.

QtyPartRefs
1
MDBT50Q
U1
1
MX25R6435FZNIL0
U2
1
TB6612FNG
U3
1
AP2112K-3.3
U4
1
32.768kHz
Y1
1
USB_B_Micro
J1
1
Conn_01x05
J2
2
Conn_01x02
J3, J4
1
Conn_01x10
J5
1
Conn_01x03
J6
1
SW_SPDT
SW1
1
Red
D1
1
6A/45V/520mV
D2
1
PRTR5V0U2X
D3
1
Blue
D5
3
10µF
C1, C2, C12
5
0.1µF
C3, C6, C7, C9, C13
2
15pF
C4, C5
1
10µF
C8
2
1.0µF
C10, C11
Show 6 more
QtyPartRefs
2
300pF
C14, C15
2
DNP
C16, C17
2
27
R1, R2
2
1k
R3, R6
3
10k
R4, R5, R7
3
330
R8, R9, R10

Farlock3-hw design files

The KiCad project lives in the frazieje/farlock3-hw repository on GitHub; these links point at the commit this page was built from.

Farlock3-hw: common questions

What microcontroller does the Farlock3-hw use?

The Farlock3-hw is built around the MDBT50Q, from the Nordic nRF family.

How big is the Farlock3-hw PCB?

The Farlock3-hw measures 58 × 22.5 mm, has 2 copper layers and is 1.6256 mm thick.

How many components are on the Farlock3-hw?

43 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the Farlock3-hw design files?

From the frazieje/farlock3-hw repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Farlock3-hw design in my own project?

The repository has no license, so all rights stay with frazieje. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Farlock3-hw without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
