Power Supply V1.0
About the Power Supply V1.0 PCB
Power Supply V1.0 is an open source PCB design by fujiihc, published on GitHub. It is a 2-layer board measuring 165.1 × 67.3 mm, with 38 components from 24 distinct parts.
By type, the board carries 14 test points, 9 capacitors, 9 resistors and 6 diodes.
It belongs with the power & battery designs in this gallery.

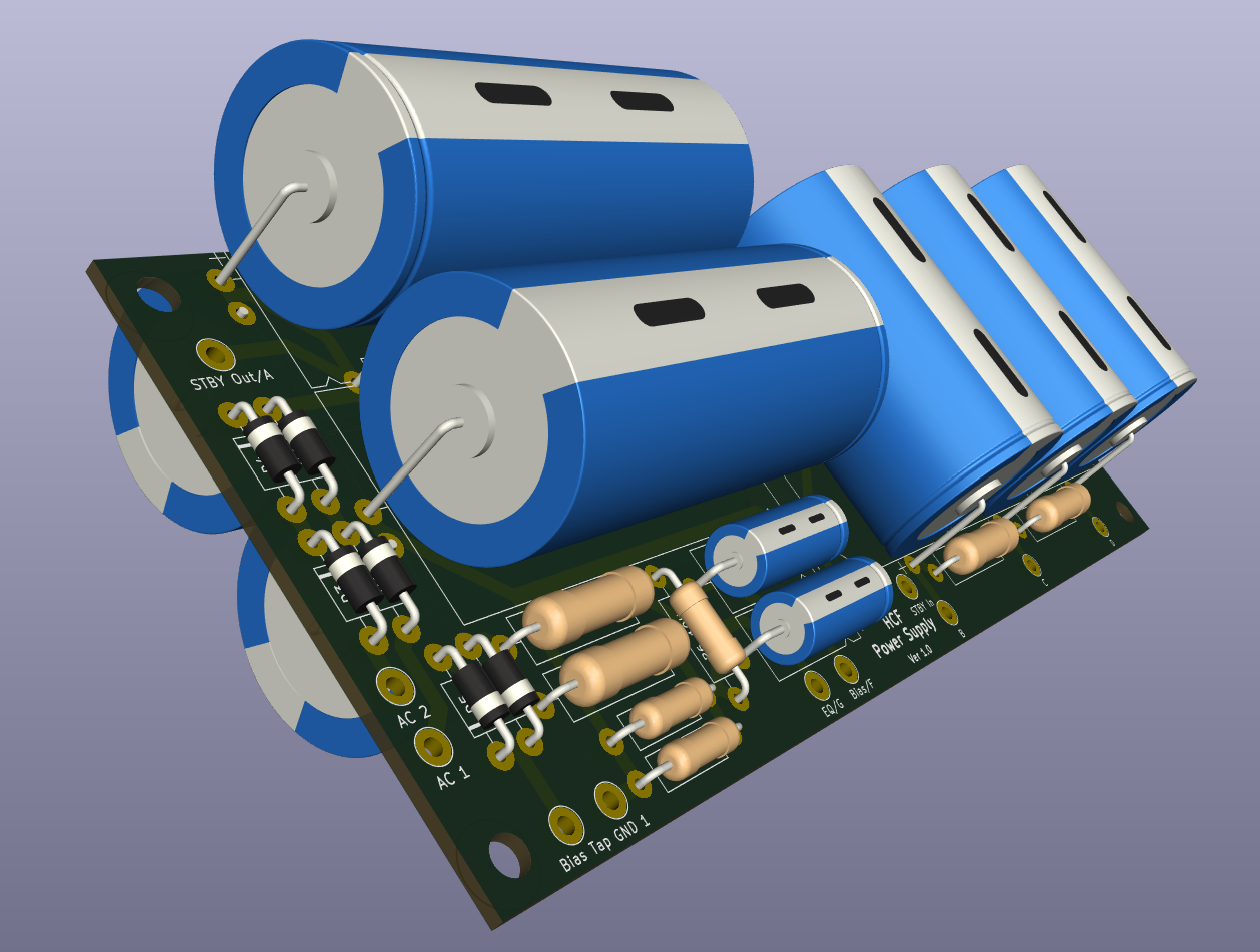

From the project
Mark IIC+/++ Clone
The board supports x2 (for 60W) and x4 (for 100W and Simul-Class) 300V 220uF Reservoir Caps.
Power Supply V1.0 bill of materials (BOM)
38 components, 24 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STBY Out/A | Out_Hole_3.4_1.8 | TP1 |
| 1 | STBY In | Out_Hole_3.4_1.8 | TP2 |
| 1 | B | WirePad | TP3 |
| 1 | C | WirePad | TP4 |
| 1 | D | WirePad | TP5 |
| 1 | GND 1 | WirePad | TP6 |
| 1 | Bias/F | WirePad | TP7 |
| 1 | EQ/G | WirePad | TP8 |
| 1 | Bias Tap | Out_Hole_3.4_1.8 | TP9 |
| 1 | AC 1 | Out_Hole_3.4_1.8 | TP10 |
| 1 | AC 2 | Out_Hole_3.4_1.8 | TP11 |
| 1 | GND 2 | WirePad | TP12 |
| 1 | GND 3 | WirePad | TP13 |
| 1 | GND 4 | WirePad | TP14 |
| 6 | 1N4006 | D_DO-41_SOD81_P10.16mm_Horizontal | D1, D2, D3, D4, D5, D6 |
| 4 | 220uF 300V | CP_Axial_L55.0mm_D26.0mm_P60.00mm_Horizontal | C1, C2, C3, C4 |
| 3 | 30uF 500V | CP_Axial_L42.0mm_D26.0mm_P45.00mm_Horizontal | C5, C6, C7 |
| 2 | 47uF 100V | CP_Axial_L18.0mm_D8.0mm_P25.00mm_Horizontal | C8, C9 |
| 2 | 150K | R_Axial_DIN0516_L15.5mm_D5.0mm_P20.32mm_Horizontal | R1, R2 |
| 2 | 1K | R_Axial_DIN0516_L15.5mm_D5.0mm_P20.32mm_Horizontal | R3, R4 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 470 | R_Axial_DIN0516_L15.5mm_D5.0mm_P20.32mm_Horizontal | R5 |
| 1 | 10K | R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal | R6 |
| 2 | Bias Set | R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal | R7, R8 |
| 1 | 220 | R_Axial_DIN0516_L15.5mm_D5.0mm_P20.32mm_Horizontal | R9 |
Power Supply V1.0 design files
The KiCad project lives in the fujiihc/IICPP_Clone repository on GitHub; these links point at the commit this page was built from.
Power Supply V1.0: common questions
How big is the Power Supply V1.0 PCB?
The Power Supply V1.0 measures 165.1 × 67.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Power Supply V1.0?
38 components, from 24 distinct parts. The full bill of materials is listed on this page.
Where can I download the Power Supply V1.0 design files?
From the fujiihc/IICPP_Clone repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Power Supply V1.0 design in my own project?
The repository has no license, so all rights stay with fujiihc. Use it as a reference, and ask the author before reusing the design.
