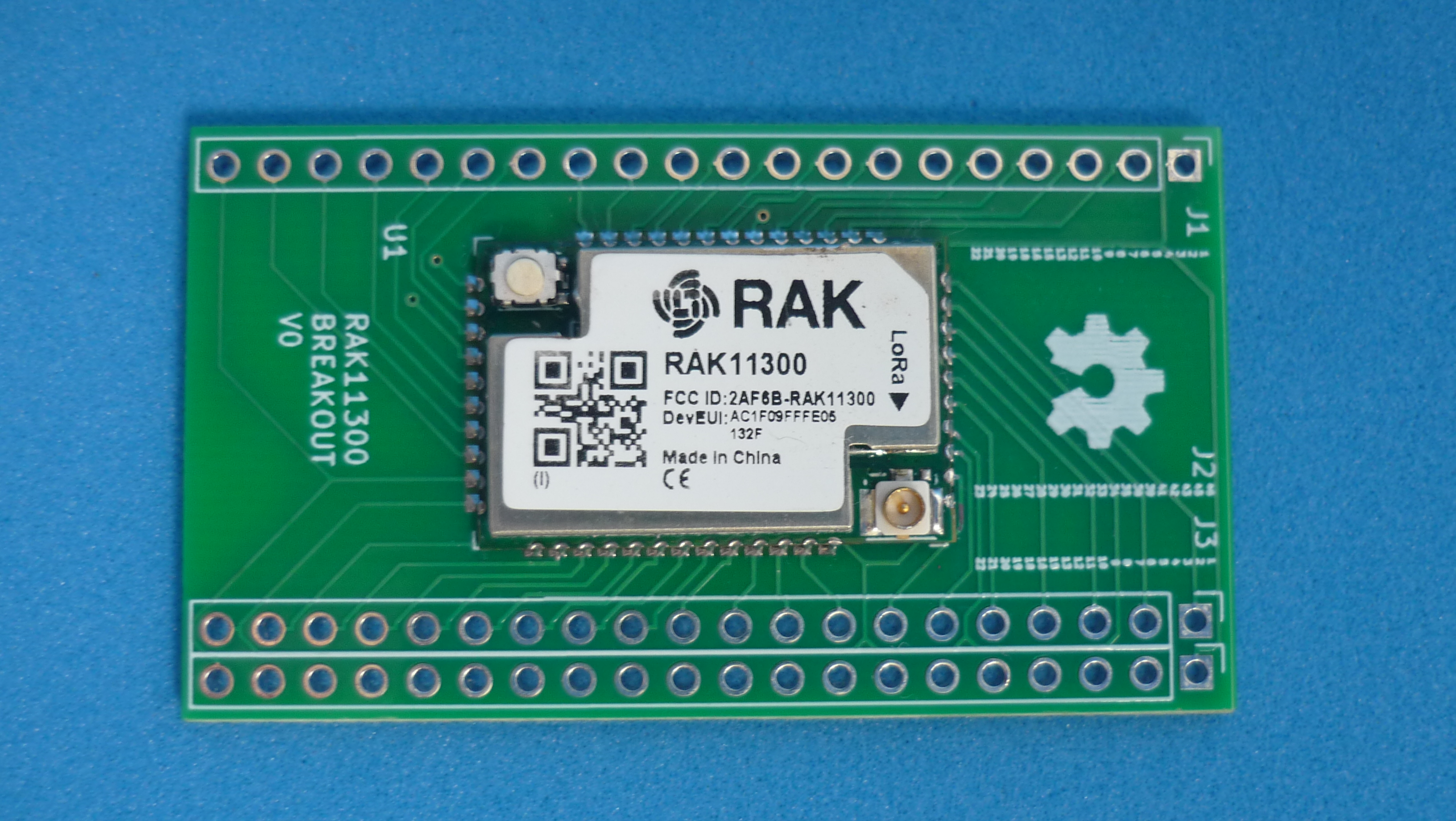

RAK11300 BREAKOUT
About the RAK11300 BREAKOUT
RAK11300 BREAKOUT is an open source PCB design by galopago, published on GitHub under the MIT license. It is a 2-layer board measuring 29.4 × 52 mm, with 4 components from 2 distinct parts.
Other key parts include the RAK11300. By type, the board carries 3 connectors and 1 IC.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
Open source breakout boards for "stamp like" rf modules. Good for experimenting on a breadboard or to be used as sub-boards.
This board allows RAK Wireless 11300 modules to be used on breadboard for prototyping. Open source and manufacturing files available. The main features are:
Every pin is accessible Compatible with solderless breadboard * Double row header for maximizing free space on prototype boards
The root folder contains template KiCad files: project, schematic and PCB /library folder contains additional symbols needed to edit printed schematic /modules folder contains additional footprints needed to edit printed circuit board /gerber folder contains ready to manufacture files. * /assets folder contains…
Main components on the RAK11300 BREAKOUT
RAK11300 BREAKOUT bill of materials (BOM)
4 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RAK11300 | RAK11300 | U1 |
| 3 | Conn_01x20_Male | PinHeader_1x20_P2.54mm_Vertical | J1, J2, J3 |
RAK11300 BREAKOUT design files
The KiCad project lives in the galopago/dil-breakout-pcb repository on GitHub; these links point at the commit this page was built from.
RAK11300 BREAKOUT: common questions
How big is the RAK11300 BREAKOUT?
The RAK11300 BREAKOUT measures 29.4 × 52 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the RAK11300 BREAKOUT?
4 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the RAK11300 BREAKOUT design files?
From the galopago/dil-breakout-pcb repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the RAK11300 BREAKOUT design in my own project?
Yes, under the terms of its MIT license, which galopago chose for the repository.
