SA818 DIL
About the SA818 DIL PCB
SA818 DIL is an open source PCB design by galopago, published on GitHub under the MIT license. It is a 2-layer board measuring 36 × 48.3 mm, with 13 components from 7 distinct parts.
Other key parts include the SA818. By type, the board carries 4 connectors, 3 capacitors, 3 resistors, 2 inductors and 1 IC.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
Open source breakout boards for "stamp like" rf modules. Good for experimenting on a breadboard or to be used as sub-boards.

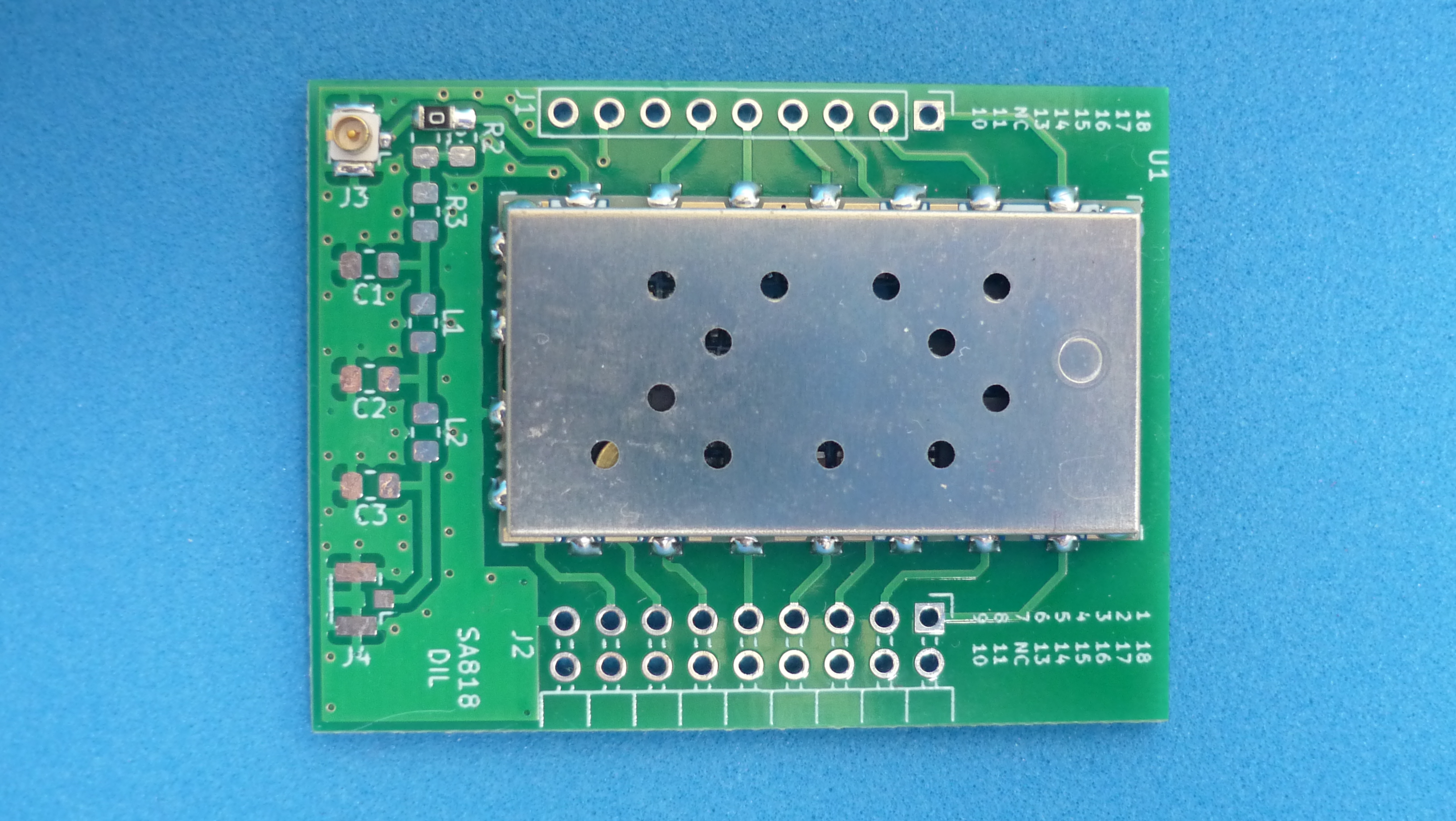

This board allows NiceRF SA818 modules to be used on breadboard for prototyping. Open source and manufacturing files available. The main features are:
Every pin is accessible Compatible with solderless breadboard Double row header for maximizing free space on prototype boards Pads for U.Fl RF connector * Pads for custom output pi filter
The root folder contains template KiCad files: project, schematic and PCB /library folder contains additional symbols needed to edit printed schematic /modules folder contains additional footprints needed to edit printed circuit board /gerber folder contains…
Main components on the SA818 DIL
SA818 DIL bill of materials (BOM)
13 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SA818 | SA818 | U1 |
| 1 | Conn_01x09_Male | PinHeader_1x09_P2.54mm_Vertical | J1 |
| 1 | Conn_02x09_Odd_Even | PinHeader_2x09_P2.54mm_Horizontal | J2 |
| 2 | Conn_Coaxial | U.FL_Hirose_U.FL-R-SMT-1_Vertical | J3, J4 |
| 2 | L | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | L1, L2 |
| 3 | C | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1, C2, C3 |
| 3 | R | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R1, R2, R3 |
SA818 DIL design files
The KiCad project lives in the galopago/dil-breakout-pcb repository on GitHub; these links point at the commit this page was built from.
SA818 DIL: common questions
How big is the SA818 DIL PCB?
The SA818 DIL measures 36 × 48.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SA818 DIL?
13 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the SA818 DIL design files?
From the galopago/dil-breakout-pcb repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the SA818 DIL design in my own project?
Yes, under the terms of its MIT license, which galopago chose for the repository.
